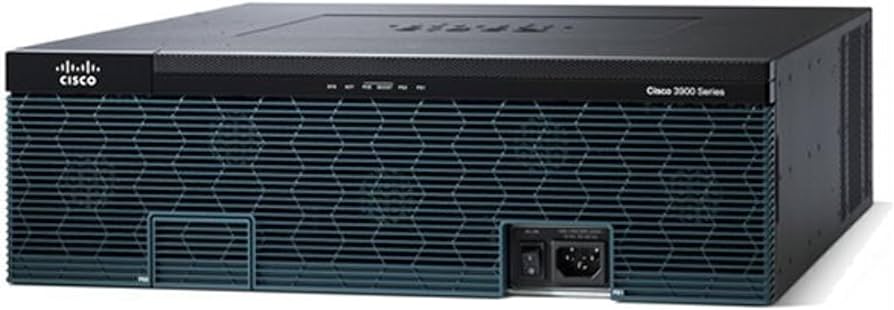

• Cisco 3945 router with black silver accents honeycomb front
1 1

Cisco

Cisco C3945-VSEC-SRE-K9 | ISR 3945 Router, SRE 700, PVDM3-64, UC + SEC

C3945-VSEC-SRE-K9

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The ISR 3945 is a modular branch-office router from the Cisco 3900 Series Integrated Services Routers (ISR G2). This bundle pairs the 3945 chassis with an SRE 700 service module, a PVDM3-64 voice DSP module, and the Unified Communications (UC) and Security (SEC) technology-package licences. It suits enterprise branches and WAN edge sites that want routing, secure VPN, voice survivability and on-router application services in a single rack-mount chassis.

The chassis provides 3 integrated 10/100/1000 WAN/LAN ports, 2 of which can alternatively use SFP, plus 2 USB 2.0 Type A ports, a USB console port, a serial console port and a serial auxiliary port. It ships with 1 GB DRAM as standard (expandable to 2 GB) and 256 MB of Compact Flash, with up to 4 GB supported per slot. Integrated hardware crypto acceleration covers IPSec and SSL, and voice capacity on the 3945 reaches 350 Cisco Unified CME sessions and 1200 SRST sessions. The SRE 700 and PVDM3-64 modules in this SKU set it apart from the SRE 900 variant (C3945-VSEC-PSRE/K9).

The 3945 accepts up to 4 SRE 700, 710, 900 or 910 service modules plus 1 SRE 300 ISM. Internal AC, PoE and DC power supply options are available, with an optional redundant supply for sites that need extra resilience.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Bundle of 3945 router, SRE 700 service module, PVDM3-64 DSP module, and UC and SEC licences
- Embedded hardware-based cryptography acceleration for IPSec and SSL
- Service Ready Engine module hosts on-router services such as the WAAS software container (SM7-WAAS)
- Supports up to 4 SRE service modules per 3945 chassis
- Cisco Unified CME and SRST voice survivability
- Optional redundant power supply for added resilience

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Chassis: Cisco 3945 with Services Performance Engine (SPE)
- Integrated WAN/LAN ports: 3 x 10/100/1000 (RJ-45)
- SFP ports: 2 (each SFP in use disables one RJ-45 port)
- Service module: SRE 700 included
- Voice DSP module: PVDM3-64 included
- Licences: Unified Communications (UC) and Security (SEC) technology packages
- DRAM (ECC DDR2): 1 GB default, 2 GB maximum
- External Compact Flash: 256 MB default in slot 0, up to 4 GB per slot
- USB 2.0 Type A ports: 2
- Console and auxiliary: USB console (Type B), serial console and serial auxiliary, up to 115.2 kbps
- Hardware crypto acceleration: IPSec and SSL
- Cisco Unified CME sessions: 350
- Cisco Unified SRST sessions: 1200
- Power supply: internal AC, PoE or DC options, with redundant option
- Maximum SRE modules: 5 (1 SRE 300 ISM plus 4 SRE 700/710/900/910)
- Dimensions (H x W x D): 133.35 x 438.15 x 476.25 mm

FAQs

Q: Which licences come with this bundle?
A: It includes the Unified Communications (UC) and Security (SEC) technology-package licence PAKs. Services running on the SRE module, such as WAAS via SM7-WAAS, may need their own software licences.

Q: How does this differ from C3945-VSEC-PSRE/K9?
A: This SKU includes an SRE 700 service module with a PVDM3-64 and the UC and SEC licences. The C3945-VSEC-PSRE/K9 variant uses an SRE 900 module instead.

Q: How many SRE modules can the 3945 chassis take?
A: The 3945 supports up to 4 SRE 700, 710, 900 or 910 service modules plus 1 SRE 300 ISM, for a maximum of 5 per chassis.

Q: What power supply options are available?
A: The 3945 supports internal AC, PoE and DC power supply options, with an optional redundant internal supply.

Q: What memory and storage does it ship with?
A: The default configuration is 1 GB DRAM, expandable to 2 GB, and 256 MB of Compact Flash in slot 0, with up to 4 GB supported per Compact Flash slot.
