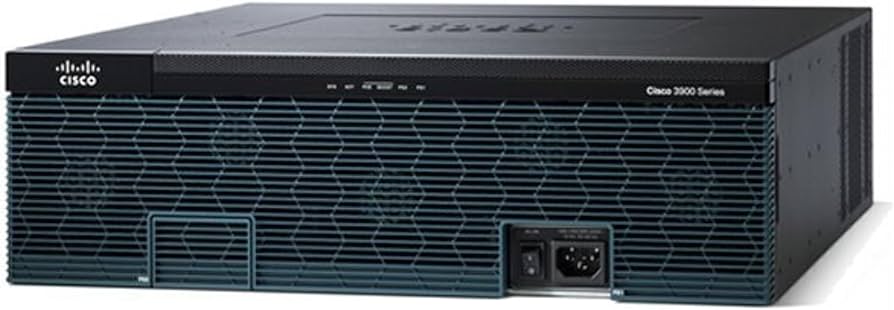

• Cisco 3945 router with VSEC bundle, black silver honeycomb front
1 1

Cisco

Cisco C3945-VSEC-PSRE-K9 | ISR 3945 Router, SRE 900/910, PVDM3-64, UC and SEC

C3945-VSEC-PSRE-K9

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The ISR 3945 is a second-generation Cisco Integrated Services Router bundle built for branch offices that need WAN routing, voice, security and on-router application hosting in a single platform. This bundle pairs the router with a Services-Ready Engine service module and a voice DSP module, so it suits sites running unified communications alongside local virtualised services.

The bundle includes an SRE 900 or SRE 910 service module, a PVDM3-64 voice DSP module and the Unified Communications (UC) and Security (SEC) software licence PAKs. The SRE module has an Intel Core2 Duo 1.86 GHz processor, 4 GB DRAM as standard (8 GB supported), a 2 GB internal USB flash module and two hot-swappable 500 GB SATA drives, giving 1 TB in non-RAID mode. RAID 0 or 1 is supported, depending on the application. The SRE 900 uses 5400 rpm drives and the SRE 910 uses 7200 rpm drives.

SRE 900/910 modules are supported on Cisco 2911, 2921, 2951, 3925, 3925E, 3945 and 3945E ISR G2 routers, and require Cisco IOS Release 15.1(4)M or later. A Cisco 3945 chassis accepts up to four SRE 700/710/900/910 service modules.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Hosts x86 applications and virtualised services on a service module that is independent of the router's own resources
- RAID 1 and hot-swappable disks on the SRE 900/910 module
- Hardware-assisted virtualisation and an embedded cryptography chip on the SRE module
- PVDM3-64 provides on-board DSP resources for voice and video
- Bundled UC and SEC licence PAKs enable Unified Communications and Security feature sets on the ISR G2 platform
- Supports up to four SRE 700/710/900/910 service modules in one Cisco 3945 chassis

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Bundle SKU: C3945-VSEC-PSRE/K9
- Chassis: Cisco 3945 Integrated Services Router
- Service module: SRE 900 or SRE 910 (SM-SRE-900-K9 / SM-SRE-910-K9)
- Voice DSP module: PVDM3-64
- Licences: UC and SEC licence PAK bundle
- SRE form factor: Service Module (SM)
- SRE CPU: Intel Core2 Duo, 1.86 GHz
- SRE DRAM: 4 GB (default) or 8 GB
- SRE internal flash: 2 GB internal USB flash-memory module
- SRE hard disks: two 500 GB SATA, 1 TB in non-RAID mode
- SRE disk speed: 5400 rpm (SRE 900), 7200 rpm (SRE 910)
- SRE hot-swappable HDD: Yes
- SRE RAID support: RAID 0 or 1 (application dependent)
- SRE internal interface: Gigabit Ethernet to router backplane
- SRE external interfaces: one USB connector, one RJ-45 Gigabit Ethernet connector
- SRE minimum router software: Cisco IOS Release 15.1(4)M
- SRE maximum power consumption: 50 W
- SRE dimensions (H x W x D): 4 x 18.9 x 19.1 cm
- SRE operating temperature: 0 to 40 C normal, -5 to 55 C short term
- SRE operating humidity: 10 to 85%
- SRE storage temperature: -20 to 65 C
- Maximum service modules per 3945: 4 SRE 700/710/900/910 plus 1 ISM

FAQs

Q: What licences does this bundle include?
A: It includes the Cisco UC (Unified Communications) and SEC (Security) software licence PAKs, which enable those feature sets on the ISR G2 platform.

Q: What is the difference between the SRE 900 and SRE 910?
A: Both use an Intel Core2 Duo 1.86 GHz CPU and two hot-swappable 500 GB SATA drives. The SRE 900 uses 5400 rpm drives and the SRE 910 uses 7200 rpm drives.

Q: What router software version is required for the SRE module?
A: The SRE 900/910 service modules require Cisco IOS Release 15.1(4)M or later on the router.

Q: How many service modules can a Cisco 3945 take?
A: A Cisco 3945 supports up to four SRE 700/710/900/910 service modules, or five SRE modules when one is an ISM.

Q: What is the maximum power draw of the SRE module?
A: The SRE 900/910 module draws up to 50 W at maximum.
