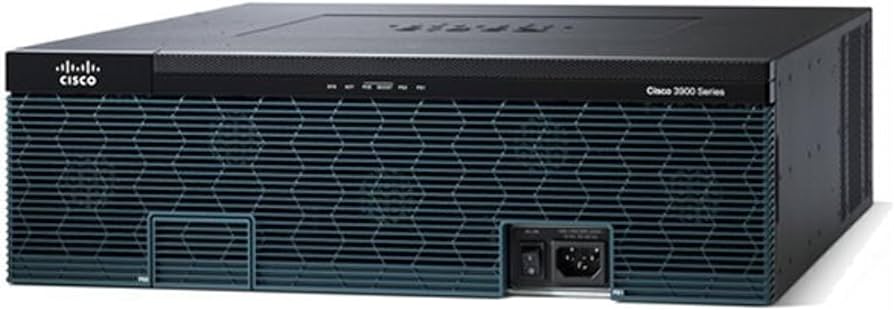

• Cisco 3945 UCSE Bundle Router with SRE 900/910, Black Silver Design
1 1

Cisco

Cisco C3945-UCSE-K9 | ISR 3945 Router, UCS Express, SRE 900/910, SRE-V

C3945-UCSE-K9

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The ISR 3945 UCS Express bundle pairs a Cisco 3945 ISR G2 router with a Services-Ready Engine (SRE 900 or SRE 910) x86 blade, the SRE-V virtualisation licence and IMC Express blade management. It puts routing, compute and virtualisation into one branch-office chassis, which suits lean sites that need to host essential local services such as Active Directory, DHCP/DNS, file and print, point-of-sale, EMR and inventory applications on virtual servers inside the router.

The bundle is a single-SRE configuration with 4 GB of ISR DRAM and 768 MB of ISR Compact Flash. The SRE 900 or SRE 910 blade uses an Intel Core 2 Duo 1.86 GHz dual-core CPU, 4 GB of DRAM as standard, two 500 GB SATA drives, three Gigabit Ethernet ports and one external USB port. The SRE-V permanent licence is included and provides a bare-metal hypervisor based on VMware vSphere Hypervisor (ESXi) 4.1. The bundle contains no EtherSwitch module and no WAAS.

The Multigigabit Fabric backplane switch links the SRE blade to the LAN without extra cabling, and IMC Express provides lights-out management independent of the IOS process. The bundle requires Cisco IOS Software Release 15.1(4)M or later and is compatible with Cisco EtherSwitch EHWICs and service modules that use the MGF backplane. The 3945E does not support IMC Express.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Compact networking, compute and virtualisation platform for the branch office
- Multigigabit Fabric backplane switch connects the SRE blade to the LAN without cabling or router CPU involvement
- Cisco SRE-V bare-metal hypervisor based on VMware vSphere Hypervisor (ESXi) 4.1
- Cisco IMC Express provides lights-out CLI and GUI management of the SRE blade, independent of the IOS process
- Domain-based management separates network, compute and virtualisation access control
- Microsoft Windows Server 2003 and 2008 R2 certified (WHQL and SVVP)
- Redundant power supply options on Cisco 3900 Series ISRs

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Router platform: Cisco 3945 ISR G2
- Service module: Cisco SRE 900 or SRE 910 x86 blade
- Bundle licence: Cisco SRE-V (permanent)
- Management software: Cisco IMC Express
- ISR DRAM: 4 GB
- ISR Compact Flash: 768 MB
- Minimum ISR DRAM for IMC Express on Cisco 3945: 2 GB
- SRE CPU: Intel Core 2 Duo 1.86 GHz (dual core)
- SRE DRAM: 4 GB default, 8 GB option (two 4 GB DIMMs), not field upgradable
- SRE storage: Two 500 GB SATA drives (5400 rpm SRE 900, 7200 rpm SRE 910)
- SRE RAID options: Non-RAID, RAID 0 and RAID 1
- SRE network: Three Gigabit Ethernet ports
- SRE I/O: One external USB port
- SRE blade maximum power consumption: 50 W
- Typical chassis power consumption with one SRE blade: 100 to 200 W
- MTBF: up to 300,000 hours
- Minimum IOS release: 15.1(4)M

FAQs

Q: Is a virtualisation licence included?
A: Yes. The bundle includes the permanent Cisco SRE-V licence. An optional VMware vCenter Server management agent can be added separately.

Q: Which IOS release does it need?
A: Cisco IOS Software Release 15.1(4)M or later is required for the MGF backplane switch and IMC Express. The router IOS feature set and any technology licences are separate.

Q: What storage and memory does the SRE blade have?
A: The SRE 900 or SRE 910 blade has 4 GB of DRAM as standard, with an 8 GB option, and two 500 GB SATA drives supporting non-RAID, RAID 0 or RAID 1.

Q: Which modules work with the MGF backplane?
A: Compatible Cisco EtherSwitch modules include EHWIC-D-8ESG(-P), EHWIC-4ESG(-P), SM-D-ES3G-48-P, SM-D-ES3-48-P and SM-D-ES2-48, along with the SM-ES3G, SM-ES3 and SM-ES2 24-port and 16-port variants.

Q: Does the Cisco 3945E support this bundle?
A: No. The 3945E does not support IMC Express. This bundle is built for the standard 3945 ISR G2 chassis.
