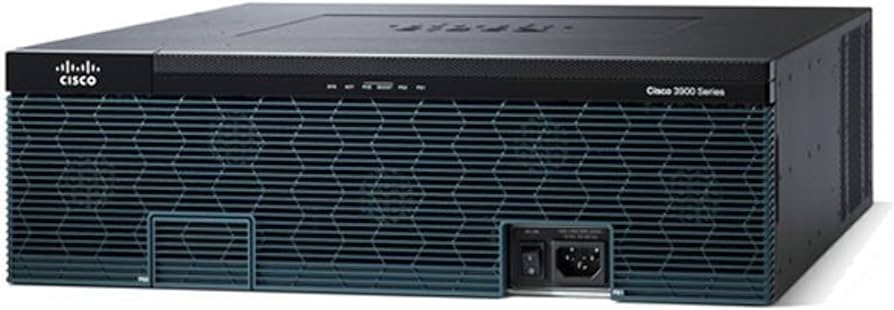

• Cisco 3945 router with black silver honeycomb front, ISR 3925E bundle
1 1

Cisco

Cisco C3925E-VSEC-SRE-K9 | ISR 3925E Router, UC+SEC Bundle, SRE 900/910, PVDM3-64

C3925E-VSEC-SRE-K9

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco ISR 3925E is a second-generation Integrated Services Router in the 3900 Series, supplied here as a bundle for branch offices that need WAN routing, voice, security and on-router application hosting in a single chassis.

This bundle pairs the 3925E with an SRE 900 or SRE 910 service module, a PVDM3-64 voice DSP module and the Unified Communications and Security licence PAKs. The SRE 900/910 uses an Intel Core2 Duo 1.86 GHz CPU with 4 GB DRAM as standard, expandable to 8 GB, and a 2-GB internal USB flash module. It has two 500-GB SATA hard disks with RAID 1 support, and the disks are hot-swappable and field-replaceable. The module connects to the router backplane over an internal Gigabit Ethernet link, with a USB connector and an RJ-45 Gigabit Ethernet connector on the front.

The SRE hardware resources are independent of the router CPU, so hosted applications such as Unity Express, UCS Express, WAAS or a wireless LAN controller do not affect routing performance. The 3925E supports up to 2 SRE 700/710/900/910 modules and requires IOS 15.1(4)M or later for the SRE 900/910.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Hosts Cisco and third-party branch applications on the SRE module, including Unity Express, UCS Express, AXP, WLC, WAAS, Video Surveillance, Prime NAM and Unified SIP Proxy
- SRE hardware resources are independent of the router CPU, so hosted applications do not affect routing performance
- Hardware-assisted virtualisation and an embedded cryptography chip on the SRE 900/910
- RAID 1 with hot-swappable disks on the SRE 900/910
- On-demand application provisioning, managed through Cisco Configuration Professional, CLI and CiscoWorks LMS
- Onboard hardware diagnostics on the SRE modules
- Includes the Unified Communications and Security feature licence PAKs

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Chassis: Cisco 3925E ISR G2
- Service module: SRE 900 or SRE 910
- Voice DSP module: PVDM3-64
- Licensing: UC and SEC licence PAK bundle
- Maximum SRE 700/710/900/910 modules in 3925E: 2
- SRE 300 ISMs supported in 3925E: None
- SRE 900/910 form factor: Service module (SM)
- SRE 900/910 CPU: Intel Core2 Duo, 1.86 GHz
- SRE 900/910 DRAM: 4 GB default or 8 GB
- SRE 900/910 flash memory: 2-GB internal USB flash module
- SRE 900/910 hard disks: Two 500-GB SATA (1 TB in non-RAID mode)
- SRE 900/910 disk speed: 5400 rpm (SRE 900), 7200 rpm (SRE 910)
- SRE 900/910 RAID: RAID 1 supported, hot-swappable and field-replaceable disks
- SRE 900/910 internal interface: Gigabit Ethernet to router backplane
- SRE 900/910 external interfaces: One USB, one RJ-45 Gigabit Ethernet
- SRE 900/910 hardware crypto acceleration: Yes
- SRE 900/910 minimum IOS release: 15.1(4)M
- SRE 900/910 maximum power consumption: 50 W
- SRE 900/910 dimensions (H x W x D): 4 x 18.9 x 19.1 cm
- SRE 900/910 maximum weight: 1.1 kg
- SRE 900/910 operating temperature: 0 to 40 C normal, -5 to 55 C short term

FAQs

Q: Which licences come with this bundle?
A: The bundle includes the UC (Unified Communications) and SEC (Security) technology-package licence PAKs. Applications hosted on the SRE module may need their own licences.

Q: How many SRE modules can the 3925E take?
A: The 3925E supports up to 2 SRE 700/710/900/910 service modules. It does not support SRE 300 ISMs.

Q: What IOS release does the SRE 900/910 need?
A: The SRE 900/910 requires Cisco IOS Release 15.1(4)M or later on the host router.

Q: How much power does the SRE 900/910 module draw?
A: The SRE 900/910 module draws up to 50 W maximum.

Q: What is the difference between the SRE 900 and SRE 910?
A: Both use the same CPU, memory options and RAID 1 disk layout. The SRE 900 has 5400 rpm disks and the SRE 910 has 7200 rpm disks.
