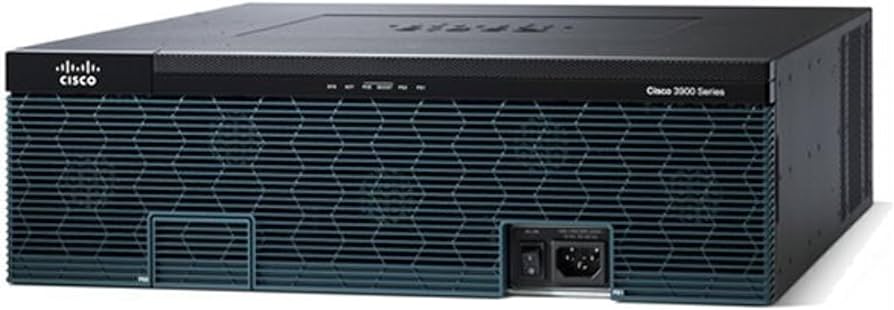

• Cisco 3945 router with black silver accents and honeycomb front pattern
1 1

Cisco

Cisco C3925-WAAS-SEC-K9 | ISR 3925 Router, SRE 900/910, Sec PAK, WAAS Large

C3925-WAAS-SEC-K9

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The ISR 3925 is a second-generation Cisco Integrated Services Router. This bundle is aimed at branch offices that want routing, security and WAN optimisation consolidated in a single chassis, with room to host additional branch applications on a service module.

The bundle pairs the router with an SRE 900 or SRE 910 service module, a Security (Sec PAK) licence and a Cisco WAAS Enterprise Large licence. The SRE 900/910 uses an Intel Core2 Duo 1.86 GHz processor with 4 GB of DRAM as standard, expandable to 8 GB, and two 500 GB SATA hot-swappable drives that support RAID 0 or 1. It connects to the router backplane over Gigabit Ethernet and draws 50 W at maximum. The 3925 chassis accepts up to two SRE 700/710/900/910 service modules plus one SRE 300 ISM.

SRE 900/910 modules are supported on the Cisco 2911, 2921, 2951, 3925, 3925E, 3945 and 3945E ISRs. Supported applications include Cisco WAAS, UCS Express, AXP, WLC, Unity Express and Video Surveillance.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Hosts Cisco, third-party and custom branch-office applications on a service module inside the router chassis
- SRE module runs independently of the host router's resources, so routing and application performance do not compete
- RAID 1 and hot-swappable, field-replaceable disks on the SRE 900/910
- Embedded hardware cryptography acceleration for security applications
- Cisco WAAS can run on the SRE module for WAN optimisation
- On-demand remote application provisioning with centralised management and troubleshooting
- Consolidates branch infrastructure into one device, saving power, cooling, cabling and rack space

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Base platform: Cisco 3925 Integrated Services Router (ISR G2)
- Service module: SRE 900 or SRE 910 (SM-SRE-900-K9 / SM-SRE-910-K9)
- Security licence: Sec PAK
- WAN optimisation: Cisco WAAS Enterprise Large licence
- Maximum SRE modules on the 3925: 3
- SRE 700/710/900/910 service modules supported: 2
- SRE 300 ISM supported: 1
- SRE 900/910 CPU: Intel Core2 Duo, 1.86 GHz
- SRE 900/910 DRAM: 4 GB default or 8 GB
- SRE 900/910 flash: 2 GB internal USB flash-memory module
- SRE 900/910 storage: two 500 GB SATA drives, 1 TB in non-RAID mode
- SRE 900 drive speed: 5400 rpm
- SRE 910 drive speed: 7200 rpm
- SRE 900/910 hot-swappable drives: Yes
- SRE 900/910 RAID support: RAID 0 or 1 (application dependent)
- SRE 900/910 internal interface: Gigabit Ethernet to router backplane
- SRE 900/910 external interfaces: one USB, one RJ-45 Gigabit Ethernet
- SRE 900/910 power consumption: 50 W maximum
- SRE 900/910 dimensions (H x W x D): 4 x 18.9 x 19.1 cm
- Cisco IOS Software release: 15.1(4)M

FAQs

Q: Which licences does this bundle include?
A: It includes a Security (Sec PAK) licence and a Cisco WAAS Enterprise Large licence, as set out in the bundle description.

Q: How many SRE modules can the 3925 take?
A: The 3925 supports up to three SRE modules in total: a maximum of two SRE 700/710/900/910 service modules and one SRE 300 ISM.

Q: How much memory and storage does the SRE 900/910 have?
A: It ships with 4 GB of DRAM as standard, expandable to 8 GB, and two 500 GB SATA hot-swappable drives. The drives provide 1 TB in non-RAID mode or can run in RAID 0 or 1.

Q: What applications can run on the SRE module?
A: Supported applications include Cisco WAAS, UCS Express, AXP, WLC, Unity Express and Video Surveillance.

Q: Which other routers support the SRE 900/910?
A: The SRE 900/910 is supported on the Cisco 2911, 2921, 2951, 3925, 3925E, 3945 and 3945E ISRs.
