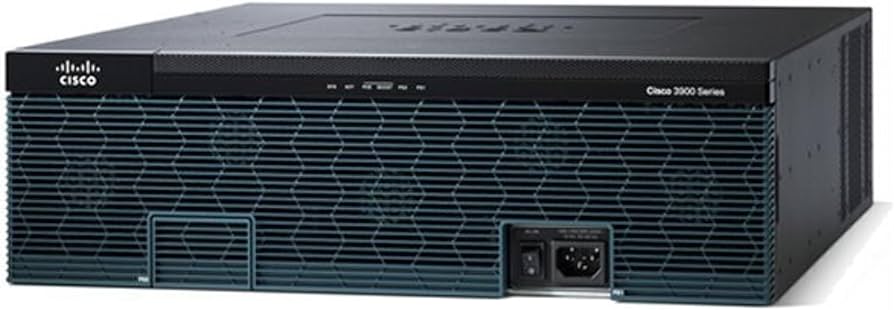

• Cisco 3945 router with black silver honeycomb front and ES24 PoE switch
1 1

Cisco

Cisco C3925-ES24-UCSE-K9 | 3925 UCS-E Bundle Router, 24-Port PoE EtherSwitch

C3925-ES24-UCSE-K9

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco 3925 UCS Express bundle combines a 3925 Integrated Services Router (ISR G2) with an x86 Services-Ready Engine blade (SRE 900 or SRE 910), SRE-V virtualisation and a 24-port Layer 2 PoE EtherSwitch service module. It suits multisite organisations with centralised IT that need to host applications locally in the branch office for performance, availability or compliance reasons, running multiple Windows Server and Linux virtual instances inside a single ISR G2 chassis.

This ES24 bundle pairs the router with a 24-port Layer 2 PoE EtherSwitch service module and a PoE power supply, along with 4 GB of ISR DRAM and 768 MB of ISR Compact Flash. The SRE 900 and SRE 910 blades use an Intel Core 2 Duo 1.86 GHz processor, 4 GB of DRAM by default (expandable to 8 GB), two 500 GB SATA drives with non-RAID, RAID 0 or RAID 1 options, and three Gigabit Ethernet ports. The bundle includes the SRE-V licence, which provides the VMware vSphere Hypervisor optimised for SRE blades, along with Cisco IMC Express for blade management.

It requires Cisco IOS Software Release 15.1(4)M for the multigigabit fabric backplane switch and IMC Express. The 3925 needs at least 2 GB of ISR DRAM and 256 or 512 MB of Compact Flash to run IMC Express.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Compact all-in-one computing, virtualisation and networking system for the branch office
- General-purpose x86 blade server that is easy to provision
- Bare-metal VMware hypervisor optimised for SRE blades (Cisco SRE-V)
- Management with separated network and server access control
- Certified for Microsoft Windows Server
- Cisco IMC Express blade management with CLI and GUI consoles, remote power cycling and schedulable on/off times
- Multigigabit Fabric (MGF) backplane switch in the ISR G2 chassis

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Platform: Cisco 3925 Integrated Services Router (ISR G2)
- Compute blade: Cisco SRE 900 or SRE 910 service module
- Virtualisation: SRE-V licence (VMware vSphere Hypervisor / ESXi)
- Switching: 24-port Layer 2 PoE EtherSwitch service module
- PoE power supply: Included in the bundle
- ISR DRAM: 4 GB
- ISR Compact Flash: 768 MB
- Management: Cisco IMC Express
- SRE 900/910 CPU: Intel Core 2 Duo, 1.86 GHz (dual core)
- SRE 900/910 DRAM: 4 GB default, 8 GB with two 4 GB DIMMs
- SRE 900/910 storage: Two 500 GB SATA drives (5400 rpm on SRE 900, 7200 rpm on SRE 910)
- SRE 900/910 RAID options: Non-RAID, RAID 0 and RAID 1
- SRE 900/910 network: Three Gigabit Ethernet ports
- SRE 900/910 I/O: One external USB port
- Minimum ISR DRAM for IMC Express on the 3925: 2 GB
- Minimum ISR Compact Flash for IMC Express on the 3925: 256 or 512 MB
- Required Cisco IOS Software: Release 15.1(4)M

FAQs

Q: Does this bundle include the virtualisation licence?
A: Yes. The bundle includes the Cisco SRE-V licence, which provides the VMware vSphere Hypervisor optimised for SRE blades. Cisco IMC Express is also included for blade management.

Q: What Cisco IOS release does it need?
A: Cisco IOS Software Release 15.1(4)M is required for the multigigabit fabric backplane switch and IMC Express.

Q: What ISR memory and flash are needed for IMC Express?
A: The Cisco 3925 needs a minimum of 2 GB of ISR DRAM and 256 or 512 MB of Compact Flash to run IMC Express. This bundle provides 4 GB of ISR DRAM and 768 MB of Compact Flash.

Q: Which service modules does it work with?
A: It works with the SRE 900 and SRE 910 service modules. EtherSwitch service modules supported on the MGF backplane include SM-ES2-24, SM-ES2-24-P, SM-ES3-24-P and SM-ES3G-24-P.

Q: How does the ES24 bundle differ from other 3925 UCS Express bundles?
A: This bundle adds a 24-port Layer 2 PoE EtherSwitch service module and a PoE power supply, together with 4 GB of ISR DRAM and 768 MB of ISR Compact Flash.
