Cisco

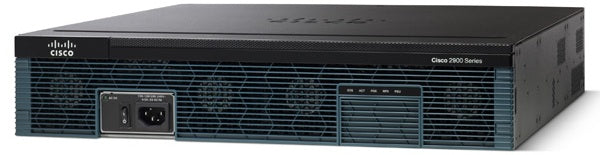

Cisco C2951-WAAS-SEC-K9 | ISR 2951 Router, SRE 900/910, Sec, WAAS Large

C2951-WAAS-SEC-K9

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This bundle pairs a Cisco 2951 Integrated Services Router from the 2900 Series ISR G2 family with a Services-Ready Engine (SRE 900 or SRE 910) service module, the Security (Sec) licence PAK and a WAAS Enterprise Large licence. It is aimed at branch-office deployments that need routing, integrated security and WAN optimisation on a single platform with an x86 service module.

The SRE 900/910 connects to the router over an internal Gigabit Ethernet link and runs branch applications independently of the router's own routing resources. Processor options are Intel Core2 Solo or Core2 Duo at 1.86 GHz, with 4 GB of DRAM as standard and 8 GB available, plus a 2 GB internal USB flash module. Disks are hot-swappable and field-replaceable, support RAID 1 and reach up to 1 TB, and the module draws up to 50 W at maximum.

The Sec PAK provides the Cisco IOS Security feature set licence, activated through Cisco Software Licensing (PAK). The WAAS Enterprise Large licence covers WAN optimisation and application acceleration. The 2951 accepts up to 2 SRE 700/710/900/910 service modules, or 3 SRE modules in total when one SRE 300 ISM is fitted.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- WAAS Enterprise Large licence for WAN optimisation and application acceleration
- Sec PAK provides the Cisco IOS Security feature set licence
- SRE module hosts branch applications such as WAAS, UCS Express, AXP and Unity Express independently of the router's routing resources
- On-demand application provisioning on the SRE without hardware changes
- Hardware-assisted virtualisation and embedded cryptography chip on the SRE 900/910
- RAID 1 support with hot-swappable disks on the SRE 900/910

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Base router: Cisco 2951 Integrated Services Router (ISR G2)
- Service module: Cisco SRE 900 or SRE 910
- Licence bundle: Security (Sec) PAK
- Licence bundle: WAAS Enterprise Large
- Maximum SRE modules on the 2951: 3
- SRE 700/710/900/910 service module support: 2
- SRE 300 ISM support: 1
- SRE-to-router connection: internal Gigabit Ethernet link
- SRE 900/910 RAID: RAID 1 supported
- SRE 900/910 disks: hot-swappable and field-replaceable
- SRE 900/910 hard disk capacity: up to 1 TB
- SRE 900/910 CPU options: Intel Core2 Solo 1.86 GHz or Intel Core2 Duo 1.86 GHz
- SRE 900/910 DRAM: 4 GB (default) or 8 GB
- SRE 900/910 flash: 2 GB internal USB flash module
- SRE 900/910 maximum power consumption: 50 W
- SRE 900/910 dimensions (H x W x D): 4 x 18.9 x 19.1 cm (1.58 x 7.44 x 7.5 in.)
- SRE storage and transport temperature: -20 to 65 C (-4 to 149 F)

FAQs

Q: Which licences does this bundle include?
A: It includes the Cisco Security (Sec) licence PAK and a WAAS Enterprise Large licence. Cisco IOS feature sets on the 2951 are activated through the Cisco Software Licensing (PAK) mechanism.

Q: How many SRE modules can the Cisco 2951 take?
A: The 2951 supports up to 2 SRE 700/710/900/910 service modules, and up to 3 SRE modules in total when one SRE 300 ISM is also fitted.

Q: What applications can the SRE module run?
A: The SRE hosts Cisco WAAS, UCS Express, AXP, Unity Express, WLC, NAM and selected third-party applications, independently of the router's own routing resources.

Q: What is the difference between the SRE 900 and SRE 910 here?
A: This bundle covers either an SRE 900 or an SRE 910 service module. Both offer RAID 1, hot-swappable disks up to 1 TB and 4 GB or 8 GB of DRAM.

Q: How much power does the SRE 900/910 draw?
A: The SRE 900/910 service module draws up to 50 W at maximum.
