Cisco C2951-VSEC-SRE-K9 | 2951 ISR G2 Router, 3x 1G, UC+SEC, PVDM3-32, SRE

C2951-VSEC-SRE-K9

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

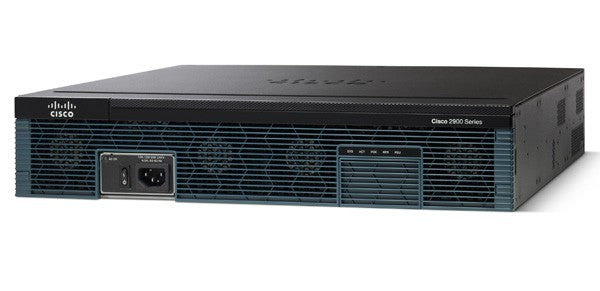

The Cisco 2951 Integrated Services Router is a second-generation ISR G2 platform for mid-to-large branch offices that need routing, voice, VPN and firewall security in one 2RU chassis. This bundle adds Unified Communications and Security licence PAKs, a PVDM3-32 voice DSP and a Services Ready Engine module (SRE 700 or 710) for on-router application hosting.

The router provides three onboard 10/100/1000 Ethernet WAN ports, one of which is SFP-capable, along with four EHWIC slots (two double-wide), two service module slots (one double-wide), three onboard DSP slots and one ISM slot. Memory is 512 MB DDR2 ECC DRAM by default, expandable to 2 GB. Embedded hardware cryptography accelerates IPsec VPN, and the voice feature set supports 250 Cisco Unified SRST sessions and 150 CCME sessions. Power options are AC, PoE and DC, with Cisco RPS 2300 supported for redundancy.

The chassis accepts EHWIC and HWIC interface cards, PVDM3 DSP modules, SM and SM-X service modules, ISM modules and Compact Flash cards. The UC and SEC technology-package licences are included on the universal IOS image, while the Data and other technology packages are licensed separately.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Multi-core CPU architecture with concurrent services performance up to 75 Mbps
- Multigigabit Fabric (MGF) for high-bandwidth module-to-module communication
- Services Ready Engine modules host Cisco, third-party and custom applications independently of the router CPU
- Embedded hardware encryption for IPsec VPN
- High-capacity PVDM3 DSP support for voice and video
- Enhanced PoE with energy monitoring and control
- Universal Cisco IOS image decouples hardware deployment from software feature activation
- Supports SRST, CME, Unified Border Element, firewall, VPN, IPS and WAAS Express

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Onboard WAN ports: 3 x 10/100/1000 Ethernet (RJ-45), 1 SFP-capable
- SFP note: use of the SFP disables the corresponding RJ-45 port
- EHWIC slots: 4 (2 double-wide)
- Service module slots: 2 (1 double-wide)
- Onboard DSP (PVDM) slots: 3, PVDM3-32 in this bundle
- ISM slots: 1
- Memory: 512 MB DDR2 ECC DRAM default, 2 GB maximum
- Compact Flash (external): 256 MB default in slot 0, up to 4 GB per slot (2 slots)
- USB: 2 x USB 2.0 Type A flash slots, 1 x USB Type B console
- Console and auxiliary: 1 serial console, 1 serial auxiliary
- Voice sessions: 250 Cisco Unified SRST, 150 Cisco Unified CCME
- Power supply options: AC, PoE and DC
- Maximum power, AC supply: 340 W
- End-point PoE power: 370 W, 750 W with PoE Boost
- AC input: 100 to 240 VAC auto-ranging, 47 to 63 Hz
- Dimensions (H x W x D): 88.9 x 438.2 x 469.9 mm
- Rack height: 2RU, 19-inch rack-mountable
- Weight with AC supply, no modules: 13.2 kg
- Operating temperature: 0 to 40 C up to 1,800 m
- Operating humidity: 5 to 85%

FAQs

Q: What licences does this bundle include?
A: It includes the Unified Communications (UC) and Security (SEC) technology-package licence PAKs on the universal IOS image. Data and other technology packages are licensed separately.

Q: How does this SKU differ from a standard Cisco 2951?
A: This is a bundle that combines the 2951 with UC and SEC licence PAKs, a PVDM3-32 voice DSP and an SRE 700 or 710 Services Ready Engine module.

Q: What power options does the 2951 support?
A: It supports AC, PoE and DC power supplies. The AC supply draws up to 340 W, and end-point PoE is 370 W, or 750 W with PoE Boost. Cisco RPS 2300 is supported for redundancy.

Q: What modules and cards does it work with?
A: It accepts EHWIC and HWIC interface cards, PVDM3 DSP modules, SM and SM-X service modules including Cisco SRE 700 and 710, ISM modules and Compact Flash cards.

Q: How many voice sessions can it handle?
A: The platform supports up to 250 Cisco Unified SRST sessions and 150 Cisco Unified CCME sessions.
