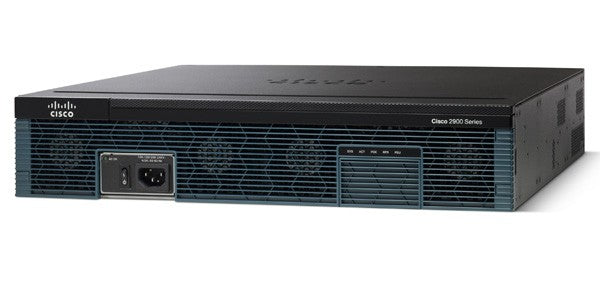

• Cisco 2951 ISR G2 router in sleek black and gray design
1 1

Cisco

Cisco C2951-CME-SRST/K9 | 2951 Router, 3x GE, PVDM3-32, CME/SRST 25-Seat

C2951-CME-SRST/K9

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco 2951 Integrated Services Router from the Cisco 2900 Series (ISR G2) is a voice bundle for branch offices and small-to-medium sites that need local call control and survivability for IP phones. It pairs the 2951 chassis with a PVDM3-32 voice DSP module and 25-seat Cisco Unified CME/SRST licensing, so a site can keep its phones working if the WAN link to the central call manager is lost.

The chassis provides 3 onboard 10/100/1000 GE ports, one of which supports SFP in place of RJ-45 for fibre connectivity. Expansion is through 4 EHWIC slots (2 double-wide), 3 onboard PVDM3 DSP slots, 1 ISM slot and service module slots that accept double-wide SM-D modules. It ships with 512 MB DDR2 ECC DRAM (2 GB maximum) and 256 MB external Compact Flash (4 GB maximum), with 2 external USB 2.0 Type A ports. Licensing covers the IP Base image with Security (SEC) and Unified Communications (UC) licence PAKs plus FL-CME-SRST-25.

Power is a 100 to 240 VAC autoranging supply at 47 to 63 Hz, drawing 70 W typical with no modules and up to 340 W maximum. AC+PoE and DC power supply options exist across the platform, and the 2RU rackmount chassis is designed for NEBS environments.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Integrated hardware encryption acceleration for secure WAN connectivity
- Voice and video capable DSP slots with PVDM3-32 module fitted
- Cisco Unified CME and SRST for branch call control and phone survivability, 25 seats
- Four EHWIC slots with double-wide module support
- Service module slots support double-wide SM-D modules for higher-density modules
- One of the three GE WAN ports supports SFP for fibre uplinks
- Optional AC+PoE (802.3af) power supply for inline power, with PoE boost via external RPS
- Optional DC power supply for central office and industrial deployments

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Onboard 10/100/1000 ports: 3 (one supports SFP in place of RJ-45)
- EHWIC slots: 4 (2 double-wide)
- Onboard DSP (PVDM3) slots: 3, PVDM3-32 included
- ISM slots: 1
- Service module slots: supports double-wide SM-D
- Memory (DDR2 ECC DRAM): 512 MB default, 2 GB maximum
- Compact Flash (external): 256 MB default, 4 GB maximum
- External USB 2.0 Type A ports: 2
- USB console port (Type B): 1
- Licensing: IP Base with SEC and UC licence PAKs
- Voice licence: FL-CME-SRST-25 (25-seat CME/SRST)
- AC input voltage: 100 to 240 VAC autoranging
- AC input frequency: 47 to 63 Hz
- AC input current (max): 3.4 to 1.4 A
- Typical power (no modules): 70 W
- Maximum power with AC power supply: 340 W
- Power supply options: AC, AC+PoE and DC
- Dimensions (H x W x D): 88.9 x 438.2 x 469.9 mm (3.5 x 17.25 x 18.5 in)
- Weight with AC power supply (no modules): 13.2 kg (29 lb)
- Operating temperature (up to 1,800 m): 0 to 40 C (32 to 104 F)
- Form factor: 2RU rackmount, designed for NEBS environments

FAQs

Q: Which licences does this 2951 voice bundle use?
A: It uses the IP Base image together with Security (SEC) and Unified Communications (UC) technology package licence PAKs, plus the FL-CME-SRST-25 feature licence for 25-seat CME and SRST.

Q: How many phones can it support for CME and SRST?
A: The FL-CME-SRST-25 licence covers 25 seats for Cisco Unified CME and SRST call control and survivability.

Q: How does this bundle differ from a standard 2951 data router?
A: This voice bundle includes a PVDM3-32 voice DSP module, the FL-CME-SRST-25 licence and the UC licence PAK, so it is ready for IP telephony at a branch site.

Q: Can it deliver PoE to IP phones?
A: PoE depends on the power supply and modules fitted. The 2951 platform supports an optional AC+PoE power supply providing up to 370 W of end-point PoE, and PoE boost up to 750 W via an external RPS.

Q: What can I fit in the expansion slots?
A: It accepts PVDM3 DSP modules in 3 slots, EHWICs and HWICs in 4 slots (2 double-wide), service modules including double-wide SM-D, and an ISM module. Memory can be upgraded to 2 GB DRAM and 4 GB Compact Flash.
