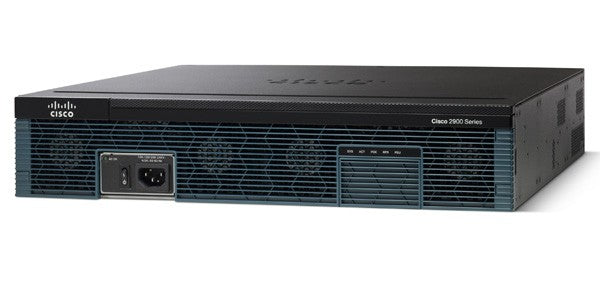

Cisco C2951-AX-K9 | 2951 Router, 3x GE, 4x EHWIC, IP Base+Security+AppX

C2951-AX-K9

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco 2951 is a modular 2RU Integrated Services Router from the Cisco 2900 Series (ISR G2), built for branch offices and distributed enterprise sites that want routing, security, voice, video and WAN services consolidated in a single platform. This AX bundle pairs the 2951 hardware with the IP Base, Security and Application Experience (AppX) technology packages.

The 2951 provides three onboard 10/100/1000 Gigabit Ethernet WAN ports, and one of them can use an SFP in place of its RJ-45. Expansion comes from four EHWIC slots (two double-wide EHWIC positions are possible), two service module slots with one double-wide, three onboard DSP (PVDM) slots and one ISM slot. It ships with 512 MB DDR2 ECC DRAM, expandable to 2 GB, and 256 MB of external Compact Flash, expandable to 4 GB. Embedded hardware encryption acceleration supports secure WAN connectivity, and the platform handles up to 250 Cisco Unified SRST sessions and 150 Cisco Unified CME sessions.

It uses a 100-240 VAC auto-ranging power supply, with PoE and DC options on the platform and support for an external Cisco RPS 2300. The chassis is 19-inch rack-mountable and runs the Cisco IOS Universal image, with technology packages activated by software licence.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Single Cisco IOS Universal image containing all technology sets, activated by software licence
- Multi-core processors with embedded hardware-based encryption acceleration
- Concurrent services performance up to 75 Mbps
- Multigigabit Fabric (MGF) for high-bandwidth module-to-module communication
- Modular EHWIC, service module, ISM and PVDM slots for flexible expansion
- Supports Cisco Services Ready Engine (SRE) modules for hosted applications
- Optional external Cisco RPS 2300 for power redundancy or PoE boost
- Intelligent power management with module power control by time of day

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Onboard WAN ports: 3 x 10/100/1000 Gigabit Ethernet (RJ-45)
- SFP option: 1 SFP in place of one onboard RJ-45 port
- EHWIC slots: 4 (2 double-wide possible)
- Service module slots: 2 (1 double-wide)
- Onboard DSP (PVDM) slots: 3
- ISM slots: 1
- Memory: 512 MB DDR2 ECC DRAM default, 2 GB maximum
- External Compact Flash: 256 MB default, 4 GB maximum
- USB 2.0 Type A ports: 2
- Console ports: 1 USB Type B, 1 serial
- Auxiliary port: 1 serial
- Cisco Unified SRST sessions: 250
- Cisco Unified CME sessions: 150
- Power supply: 100 to 240 VAC auto-ranging, 47 to 63 Hz
- Typical power with no modules: 70 W
- Maximum power with AC power supply: 340 W
- Dimensions (H x W x D): 88.9 x 438.2 x 469.9 mm (3.5 x 17.25 x 18.5 in)
- Rack height: 2RU, 19-inch EIA
- Weight with AC power supply, no modules: 13.2 kg (29 lb)
- Operating temperature up to 1,800 m: 0 to 40 C
- Airflow: back and side to front

FAQs

Q: Which licences does the AX bundle include?
A: The AX bundle combines the IP Base, Security and Application Experience (AppX) technology packages on the Cisco IOS Universal image. Packages are activated by software licence.

Q: What interface cards and modules does it work with?
A: It supports EHWIC, HWIC and WIC interface cards, service modules including double-wide, SRE modules, ISM modules and PVDM DSP modules. One onboard Gigabit port can also use an SFP.

Q: Does it support PoE?
A: PoE is available through the optional PoE power supply, which provides up to 370 W of end-point PoE. An external Cisco RPS 2300 can raise PoE capacity to 750 W.

Q: How does the 2951 differ from other 2900 Series routers?
A: The 2951 offers three onboard Gigabit Ethernet ports, four EHWIC slots, two service module slots and three DSP slots in a 2RU chassis. The AX SKU adds the IP Base, Security and AppX bundle.

Q: What power options are available?
A: The standard supply is 100-240 VAC auto-ranging, drawing 70 W typical and 340 W maximum. PoE and DC (24-60 Vdc) supply options are available, along with external RPS 2300 support.
