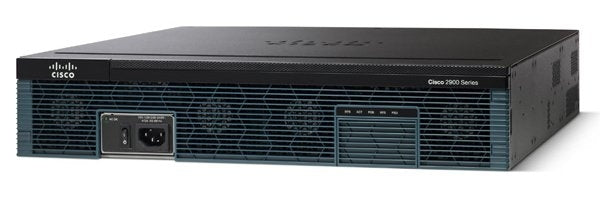

• Black Cisco 2921 ISR router with VSEC bundle, silver accents, vented design
1 1

Cisco

Cisco C2921-VSEC/K9 | ISR 2921 Router, Voice/Security Bundle, PVDM3-32

C2921-VSEC/K9

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The ISR 2921 is a Cisco 2900 Series Integrated Services Router (ISR G2) supplied as a pre-configured voice and security bundle. It suits branch-office and small-to-medium business WAN edge deployments that need voice services such as SRST, CME and voice gateway alongside integrated security such as firewall, VPN and IPS.

The bundle combines the 2921 chassis with a PVDM3-32 DSP module for voice, conferencing and transcoding, plus the Unified Communications (UC) and Security (SEC) technology package licence PAKs. These allow the matching IOS feature sets to be activated on the router. The chassis provides 3 onboard 10/100/1000 Gigabit Ethernet ports, 4 EHWIC slots, 3 onboard DSP (PVDM) slots and 1 ISM slot, in a 1 RU, 19-inch rack-mount form factor.

Memory is 512 MB DDR2 ECC DRAM by default, upgradeable to 2 GB with the MEM-2900 series upgrades. Storage options include dual CompactFlash slots supporting up to 4 GB each and 2 USB 2.0 Type A slots. The router runs from a 100-240 VAC auto-ranging supply, and the 2921 platform supports a 280 W internal PoE supply and a 750 W external PoE Boost.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Multi-core CPU architecture designed to leave performance headroom as services are added
- Voice-ready bundle with a PVDM3-32 DSP module for voice, conferencing and transcoding
- Security licence PAK enables IOS security features such as firewall, IPS, VPN and content filtering
- Unified Communications licence PAK enables voice features such as CUBE, CME and SRST
- Service-ready platform with EHWIC, ISM and PVDM slots for modular expansion
- Dual CompactFlash and dual USB 2.0 Type A slots for storage

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Onboard Gigabit Ethernet ports: 3 x 10/100/1000
- EHWIC slots: 4
- Onboard DSP (PVDM) slots: 3, bundled with PVDM3-32
- ISM slots: 1
- Memory DDR2 ECC DRAM (default): 512 MB
- Memory DDR2 ECC DRAM (maximum): 2 GB
- DRAM expansion: 1 UDIMM slot with ECC (512 MB, 1 GB or 2 GB)
- Compact Flash (external) maximum: slot 0: 4 GB, slot 1: 4 GB
- External USB 2.0 flash memory slots (Type A): 2
- AC input voltage: 100 to 240 VAC auto-ranging
- AC input frequency: 47 to 63 Hz
- AC input current range: 3.4 to 1.4 A
- AC input surge current: less than 50 A
- Typical power (no modules): 60 W
- Maximum power with AC power supply: 320 W
- Maximum power with PoE power supply (platform only): 370 W
- Internal PoE power supply: 280 W
- External PoE Boost: 750 W
- Dimensions (H x W x D): 3.5 x 17.25 x 18.5 in. (88.9 x 438.2 x 469.9 mm)
- Form factor: 1 RU, 19-inch rack mount
- Bundle contents: PVDM3-32, UC and SEC License PAK

FAQs

Q: Which licences come with this bundle?
A: The bundle includes the UC (Unified Communications) and SEC (Security) technology package licence PAKs, so those IOS feature sets can be activated on this router.

Q: What PoE options does the ISR 2921 platform support?
A: The 2921 platform supports a 280 W internal PoE power supply and a 750 W external PoE Boost. With the PoE supply, maximum platform power is 370 W.

Q: What modules and memory does it work with?
A: It supports EHWIC modules in 4 slots, PVDM3 DSP modules in 3 slots, ISM modules and CompactFlash cards up to 4 GB. DRAM can be upgraded to 2 GB with the MEM-2900 series memory upgrades.

Q: How does this SKU differ from a standard 2921 router?
A: C2921-VSEC/K9 is the Voice/Security Bundle. It pairs the 2921 chassis with a PVDM3-32 DSP module and the UC and SEC licence PAKs, so voice and security features are ready to activate.

Q: What is the power requirement?
A: It uses an internal AC supply rated 100 to 240 VAC, 47 to 63 Hz, auto-ranging. Typical draw is 60 W with no modules, and maximum is 320 W on the AC supply.
