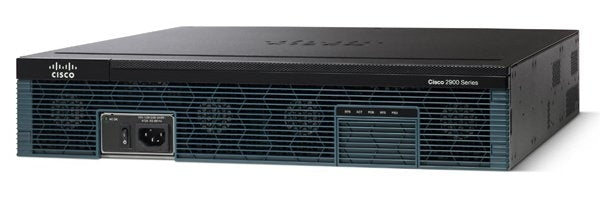

Cisco C2921-VSEC-CUBE/K9 | ISR 2921 Router, VSEC + CUBE Bundle, 3x Gigabit WAN

C2921-VSEC-CUBE/K9

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco ISR 2921 is a modular branch-office router from the 2900 Series Integrated Services Routers (ISR G2). This C2921-VSEC-CUBE/K9 is the Voice Security (VSEC) and Cisco Unified Border Element (CUBE) bundle, aimed at branches that need secure voice and session border control alongside routing. It also suits small and mid-size sites that need survivable telephony through Unified SRST and Unified CME.

The 2921 platform provides three onboard 10/100/1000 Gigabit Ethernet WAN ports, plus one SFP-based port that shares with an RJ-45 port, so using the SFP disables the matching RJ-45. Expansion comes from four EHWIC slots (two of them double-wide), one service module slot, one ISM slot and three onboard PVDM3 DSP slots. It ships with 512 MB DDR2 ECC DRAM as standard and includes embedded hardware cryptography and acceleration for IPSec VPN. Voice capacity reaches up to 100 Unified SRST sessions and up to 100 Unified CME sessions. Two USB 2.0 ports and two external Compact Flash slots are fitted.

The chassis accepts EHWIC, HWIC, WIC, VIC and VWIC interface cards, PVDM3 DSP modules, and service modules including double-wide types. Optional power upgrades include an internal PoE supply, a DC supply and an external redundant power supply.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Modular platform with EHWIC, service module, ISM and PVDM3 DSP slots for field-upgradeable WAN, voice and services
- Embedded IPSec VPN hardware acceleration for WAN link security
- Multigigabit Fabric (MGF) for module-to-module communication
- TDM interconnectivity fabric for voice scaling
- Cisco Unified Border Element, Unified SRST and Unified CME voice features
- Routing and encapsulation support including IPv4/IPv6, OSPF, EIGRP, BGP, IS-IS, MPLS, GRE and IPSec
- Embedded management: EEM, IP SLA, SNMP, RMON, syslog, NetFlow, TR-069 and WSMA

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Platform: Cisco 2921 Integrated Services Router (ISR G2)
- Bundle: Voice Security (VSEC) and Cisco Unified Border Element (CUBE)
- Onboard WAN ports: 3 x 10/100/1000 Gigabit Ethernet (RJ-45)
- SFP-based port: 1 (using the SFP disables the corresponding RJ-45 port)
- EHWIC slots: 4 (2 double-wide)
- Service module slots: 1 double-wide
- ISM slots: 1
- Onboard DSP (PVDM3) slots: 3
- Memory: 512 MB DDR2 ECC DRAM (default)
- Cryptography: embedded hardware-based encryption and acceleration
- Cisco Unified SRST sessions: up to 100
- Cisco Unified CME sessions: up to 100
- USB 2.0 ports: 2
- Compact Flash slots: 2 external (upgradeable to 4 GB)
- Console: USB console port plus traditional console and auxiliary ports

FAQs

Q: What is the difference between this bundle and a standard Cisco 2921?
A: The C2921-VSEC-CUBE/K9 is the Voice Security (VSEC) and Cisco Unified Border Element (CUBE) bundle on the 2921 chassis, aimed at secure voice and session border control deployments.

Q: How many Unified SRST and CME sessions does the 2921 support?
A: The 2921 platform supports up to 100 Cisco Unified SRST sessions and up to 100 Cisco Unified CME sessions.

Q: Can I use both the SFP port and its matching RJ-45 port?
A: No. The 2921 has one SFP-based WAN port that shares with an RJ-45 port, so using the SFP disables the corresponding RJ-45 port.

Q: Which interface and voice modules does it accept?
A: It takes EHWIC, HWIC, WIC, VIC and VWIC interface cards, PVDM3 DSP modules and service modules, including double-wide types. Network modules and EVMs work through an adapter module.

Q: What power options are available for the 2921?
A: The chassis uses an internal AC power supply. Optional upgrades are an internal PoE supply (802.3af / Cisco Enhanced PoE), a DC supply and an external redundant power supply.
