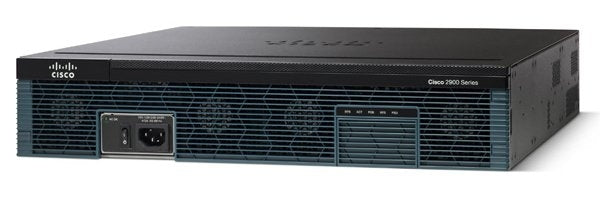

• Cisco C2921-UCSE-K9 black router with silver accents and vented design
1 1

Cisco

Cisco C2921-UCSE-K9 | 2921 UCS Express Router Bundle, SRE-V, 2.5GB DRAM

C2921-UCSE-K9

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco 2921 UCS Express bundle pairs a 2921 Integrated Services Router (ISR G2) with the licences and memory needed to host a Cisco SRE 900 or SRE 910 x86 blade server. It suits lean branch offices that want to run local services such as Active Directory, DHCP, DNS, file and print, POS, EMR and inventory applications on virtualised Windows or Linux servers inside the branch router, rather than on separate physical servers.

This SKU is specified with a 2921 chassis, 2.5 GB of ISR DRAM, 768 MB of ISR Compact Flash, a single SRE 900/910 service module, the SRE-V virtualisation licence and IMC Express management. The SRE 900/910 blade provides a dual-core Intel Core 2 Duo 1.86 GHz CPU, 4 GB of DRAM by default (8 GB with two 4 GB DIMMs), two 500 GB SATA drives, three Gigabit Ethernet ports and one external USB port. The blade connects to the router over the MGF backplane switch, so no physical cabling is needed between them.

The bundle includes the Cisco SRE-V software licence, which runs the VMware vSphere Hypervisor (ESXi). SRE-V ships with a 60-day evaluation licence, and a permanent licence is activated with a product authorisation key redeemed on the VMware website. The bundle requires Cisco IOS Software Release 15.1(4)M or later.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Compact all-in-one computing, virtualisation and networking system
- General-purpose x86 blade server that is easy to provision
- Production-class VMware bare-metal hypervisor with SRE-V
- Separated network and server access control for management
- Certified for Microsoft Windows Server
- MGF backplane switch links the router and blade without physical cabling

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Bundle part number: C2921-UCSE/K9
- Chassis: Cisco 2921 ISR G2
- Service module: Cisco SRE 900 or SRE 910 (single module)
- ISR DRAM: 2.5 GB
- ISR Compact Flash: 768 MB
- Virtualisation licence: Cisco SRE-V (VMware vSphere Hypervisor ESXi)
- Management: Cisco IMC Express
- Backplane: MGF (Multigigabit Fabric) switch
- Required software: Cisco IOS 15.1(4)M or later
- SRE 900/910 CPU: Intel Core 2 Duo 1.86 GHz (dual core)
- SRE 900/910 DRAM: 4 GB default, 8 GB with two 4 GB DIMMs
- SRE 900/910 storage: two 500 GB SATA drives (5400 rpm on SRE 900, 7200 rpm on SRE 910)
- SRE 900/910 RAID: Non-RAID, RAID 0 and RAID 1
- SRE 900/910 network: three Gigabit Ethernet ports
- SRE 900/910 I/O: one external USB port

FAQs

Q: Does this bundle include a virtualisation licence?
A: Yes. The Cisco SRE-V licence is included and ships with a 60-day evaluation period. A permanent licence is activated with a product authorisation key redeemed on the VMware website.

Q: Which service modules does it work with?
A: This bundle is specified for a single Cisco SRE 900 or SRE 910 service module hosted in the 2921 chassis.

Q: Which IOS release does it require?
A: It requires Cisco IOS Software Release 15.1(4)M or later.

Q: Which EtherSwitch modules can use the MGF backplane?
A: The MGF backplane switch works with the EHWIC-4ESG(-P) and EHWIC-D-8ESG(-P) EtherSwitch EHWICs and EtherSwitch service modules such as SM-ES3G-24-P and SM-ES2-24.

Q: How much memory and flash does this SKU have in the router?
A: This SKU is configured with 2.5 GB of ISR DRAM and 768 MB of ISR Compact Flash, which exceeds the minimums needed to run IMC Express on the 2921.
