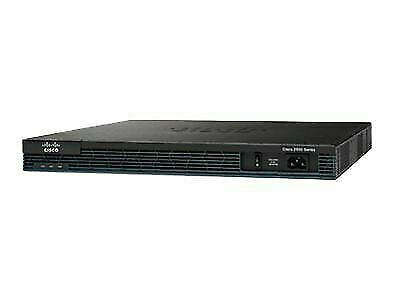

• Cisco C2901-VSEC/K9 black router with silver accents and cooling vents
1 1

Cisco

Cisco C2901-VSEC/K9 | ISR 2901 Router, 2x GE, PVDM3-16, UC and SEC Licences

C2901-VSEC/K9

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco ISR 2901 Voice and Security Bundle is a pre-configured Cisco 2900 Series ISR G2 router for small branch and remote sites that need integrated voice alongside secure WAN and VPN connectivity. It is built on the 2901 chassis and adds a PVDM3-16 voice DSP module with the Unified Communications and Security technology-package licence PAKs.

The router has two onboard 10/100/1000 RJ-45 WAN ports, four EHWIC slots (two of which are double-wide), two onboard DSP (PVDM) slots and one ISM slot. It has no service module slots. Default memory is 512 MB DDR2 ECC DRAM, upgradable to 2 GB. Embedded hardware-based crypto acceleration supports VPN and security services, and concurrent services performance reaches up to 75 Mbps. For voice, it supports 35 Cisco Unified SRST sessions or 35 CCME sessions.

The bundle runs the single Cisco IOS Universal image, with the UC and SEC technology packages activated through the included licence PAKs on top of the default IP Base. The router accepts EHWIC WAN and LAN interface cards, PVDM3 DSP modules and ISM modules such as the Services-Ready Engine.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Concurrent services at WAN speeds up to 75 Mbps
- Multigigabit Fabric (MGF) for high-bandwidth module-to-module communication
- USB-based console port, plus traditional console and auxiliary ports
- Single Cisco IOS Universal image with features enabled by licence activation
- Embedded hardware-based encryption acceleration for VPN and security
- Modular EHWIC, PVDM3 DSP and ISM slots for expansion
- SRST and CME support for branch voice resilience

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Onboard WAN ports: 2 x 10/100/1000 RJ-45
- SFP-based ports: 0
- EHWIC slots: 4 (2 double-wide)
- Onboard DSP (PVDM) slots: 2
- DSP module in bundle: PVDM3-16
- ISM slots: 1
- Service module slots: 0
- Memory (default): 512 MB DDR2 ECC DRAM
- Memory (maximum): 2 GB DDR2 ECC DRAM
- Cisco Unified SRST sessions: 35
- Cisco Unified CCME sessions: 35
- Concurrent services WAN performance: up to 75 Mbps
- Embedded hardware-based cryptography and acceleration: Yes
- Licensing included: UC and SEC licence PAKs
- Software image: Cisco IOS Universal

FAQs

Q: Which licences come with the C2901-VSEC/K9 bundle?
A: The bundle includes the Unified Communications (UC) and Security (SEC) technology-package licence PAKs, in addition to the default IP Base. Other technology packages and the CUBE licence are separate, and CUBE is only part of the C2901-VSEC-CUBE/K9 variant.

Q: How many voice sessions does it support?
A: It supports 35 Cisco Unified SRST sessions or 35 CCME sessions, with the included PVDM3-16 providing the voice DSP resources.

Q: What modules and cards does it work with?
A: It accepts EHWIC WAN and LAN interface cards, PVDM3 DSP modules (two onboard slots) and ISM modules such as the Services-Ready Engine. Memory can be upgraded to 2 GB DDR2 ECC DRAM.

Q: How does it differ from a standard Cisco 2901 router?
A: This SKU is the Voice and Security bundle. It adds the PVDM3-16 DSP module and the UC and SEC licence PAKs to the 2901 chassis, so voice and security services are ready to enable.
