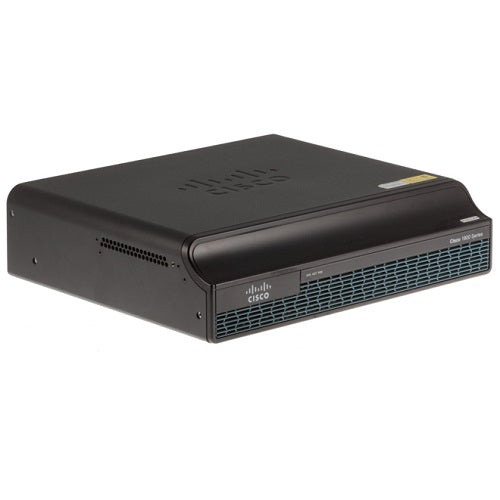

• Cisco C1941-AX-K9 ISR 1941 router with black vented front and logo
1 1

Cisco

Cisco C1941-SEC-SRE-K9 | ISR 1941 Router, 2x GE, SRE 300 and SEC Licence

C1941-SEC-SRE-K9

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco ISR 1941 is a modular branch-office router from the Cisco 1900 Series ISR G2 range, built for sites that need secure WAN routing with IPsec VPN and the ability to host branch applications on the router itself. This bundle pairs the 1941 with a Cisco SRE 300 Services-Ready Engine module and a SEC licence PAK.

The router provides two onboard 10/100/1000 Gigabit Ethernet WAN ports (RJ-45), two EHWIC slots (one double-wide EHWIC supported) and one ISM slot, which the SRE 300 occupies. It ships with 512 MB DRAM (expandable to 2 GB) and 256 MB CompactFlash (expandable to 4 GB), with two USB Type A ports plus USB, RJ-45 serial console and auxiliary ports. Embedded hardware IPsec crypto acceleration is built in, and concurrent services performance reaches up to 25 Mbps. The SRE 300 adds a 1.06 GHz Intel CPU, 512 MB DRAM and 4 GB USB flash on a dedicated x86 module, independent of router resources.

The SEC licence PAK activates the Security technology package on the IOS Universal image. The 1941 is a 2 RU unit supporting rack or wall mounting and takes standard ISR G2 EHWIC interface cards.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Modular architecture with EHWIC and ISM slots for LAN/WAN connectivity and services
- Embedded IPsec VPN hardware acceleration, enabled with the IOS Security licence
- SRE 300 hosts branch applications on a dedicated x86 module independent of router resources
- MultiGigabit Fabric for efficient module-to-module communication
- Single Cisco IOS Universal image with technology sets activated by software licence
- Supports IPv4/IPv6, OSPF, EIGRP, BGP, IS-IS, MPLS, GRE, IPsec, QoS, NBAR and PfR
- USB mini-B console port alongside RJ-45 console and aux ports
- Managed with Cisco Configuration Professional, CiscoWorks LMS/NCM, Security Manager and License Manager

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Onboard WAN ports: 2 x 10/100/1000 Gigabit Ethernet (RJ-45)
- EHWIC slots: 2 (1 double-wide supported)
- ISM slots: 1 (used by SRE 300)
- IPsec crypto acceleration: Embedded hardware
- DRAM: 512 MB default, 2 GB maximum
- CompactFlash: 256 MB default, 4 GB maximum
- USB: 2 x Type A, 1 x Type B console
- Console and auxiliary: RJ-45 serial console and aux ports
- SRE 300 CPU: 1.06 GHz Intel processor
- SRE 300 memory and storage: 512 MB DRAM, 4 GB USB flash
- Concurrent services performance: Up to 25 Mbps
- AC input: 100-240 V, 47-63 Hz
- Typical power (no modules): 35 W
- Maximum power capacity: 110 W
- Form factor: 2 RU, 19 in rack-mount, wall-mount supported
- Dimensions (H x W x D): 3.5 x 13.5 x 11.5 in
- Weight (AC, no modules): 12 lbs
- Operating temperature: 0 to 40 C (up to 1800 m)
- Operating humidity: 10 to 85% RH
- Airflow: Front to side

FAQs

Q: What licence is included in this bundle?
A: The bundle includes the SEC licence PAK, which activates the Security technology package on the IOS Universal image. The base 1941 router ships with IP Base.

Q: How is this different from the standard Cisco 1941 router?
A: This SKU is a bundle that adds a Cisco SRE 300 Services-Ready Engine module and a SEC licence PAK to the 1941 router.

Q: Can I fit more than one SRE module?
A: No. The 1941 supports a maximum of one SRE module, which uses the single ISM slot.

Q: What power does it need?
A: It uses an internal AC power supply rated 100-240 V, 47-63 Hz. Typical draw is 35 W with no modules and maximum power capacity is 110 W. There is no redundant power supply support.

Q: What interface cards does it accept?
A: It has two EHWIC slots, or one double-wide EHWIC, and uses the same interface cards as other ISR G2 routers.
