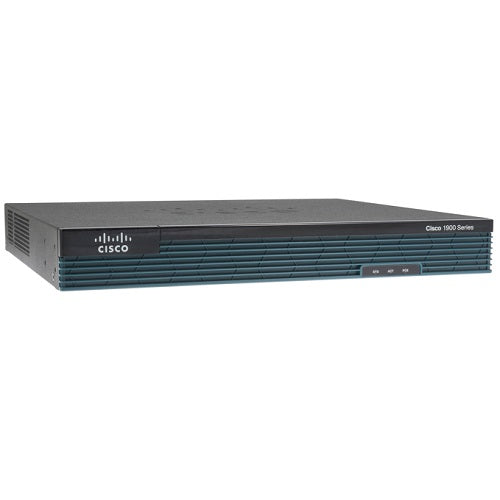

• Cisco C1921-4G-V-SEC-K9 ISR 1921 router in black and gray with green accents
1 1

Cisco

Cisco C1921VAM-K9 | ISR 1921 Router, VDSL2/ADSL2+ Annex M, IP Base

C1921VAM-K9

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco ISR 1921 is a modular branch-office Integrated Services Router from the 1900 Series. This bundle includes a multimode EHWIC providing VDSL2/ADSL2+ Annex M WAN connectivity, making it suited to small branch offices and remote sites that connect over DSL and need secure routing with room to grow.

It provides two onboard 10/100/1000 RJ-45 LAN/WAN ports and two EHWIC slots, one of which can be used as a doublewide slot. Memory is 512 MB DDR2 DRAM with 256 MB of internal USB flash, plus one external USB 2.0 Type A port. Embedded hardware cryptography accelerates IPsec and SSL VPN. The IP Base technology package is included by default, and Data and Security licences can be activated on the Universal IOS image through Cisco software activation.

The router accepts EHWIC, HWIC, HWIC-D, WIC and VWIC modules, so voice, switching or 3G WAN backup can be added later. It has no ISM slots. This AC-input model is 1RU, supports wall mounting and has an optional 19-inch rack-mount kit, with an optional external PoE power supply (PWR-1900-POE) for switch modules.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Modular platform with EHWIC slots that accept HWIC, WIC and VWIC modules
- Multicore processor for branch-office WAN throughput
- Onboard hardware encryption acceleration for IPsec and SSL VPN, with the optional Security licence
- All onboard LAN/WAN ports are Gigabit Ethernet routed ports
- USB mini-Type B console port alongside RJ-45 console and auxiliary ports
- Single Cisco IOS Universal image with feature licences activated through Cisco software activation
- Management support for SNMP, RMON, syslog, NetFlow, TR-069, EEM, IP SLA and WSMA

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Onboard LAN/WAN ports: 2 x 10/100/1000 RJ-45
- WAN module: multimode EHWIC for VDSL2/ADSL2+ Annex M
- EHWIC slots: 2 (1 doublewide supported)
- ISM slots: 0
- Memory (DDR2 DRAM): 512 MB default and maximum
- Internal USB flash: 256 MB default and maximum
- External USB flash slot (Type A): 1
- USB console port (mini-Type B): 1
- Serial console port: 1
- Serial auxiliary port: 1
- Hardware cryptography acceleration (IPsec and SSL): Yes
- Included licence: IP Base
- AC input voltage: 100-240 V
- AC input frequency: 47-63 Hz
- Typical power (no modules): 25 W
- Maximum power capacity with AC power supply: 60 W
- Maximum power capacity with PoE power supply (platform only): 70 W
- Maximum PoE device power capacity with PoE power supply: 80 W
- Redundant power supply support: No
- Dimensions (H x W x D): 1.75 x 13.5 x 11.5 in (4.45 x 34.29 x 29.21 cm)
- Rack height: 1 RU
- Mounting: wall-mount, optional 19 in rack-mount
- Weight with AC power supply (no modules): 6.75 lb
- Operating temperature (up to 1800 m): 0 to 40 C
- Operating humidity: 10 to 85% RH
- Airflow: back to sides

FAQs

Q: Which licence does this router include?
A: It includes the IP Base technology package. Optional Data and Security (SEC or SEC-NPE) licences can be activated on the Universal IOS image through Cisco software activation.

Q: Can it supply PoE to connected devices?
A: Not on its own. With the optional external PoE power supply (PWR-1900-POE), it can provide up to 80 W of PoE device power for switch modules.

Q: Which modules does it support?
A: It supports EHWIC, HWIC, HWIC-D, WIC and VWIC modules, including the EtherSwitch HWIC and HWIC-D. It has no ISM slots, so SRE and ISM modules are not supported.

Q: How does this differ from other 1921 models?
A: This SKU is bundled with a multimode EHWIC for VDSL2/ADSL2+ Annex M WAN connectivity and ships with IP Base. It is an AC-input model, and a separate DC model exists as CISCO1921DC/K9.

Q: What operating system does it run?
A: It runs the Cisco IOS 15M&T Universal image, with feature sets enabled by licence.
