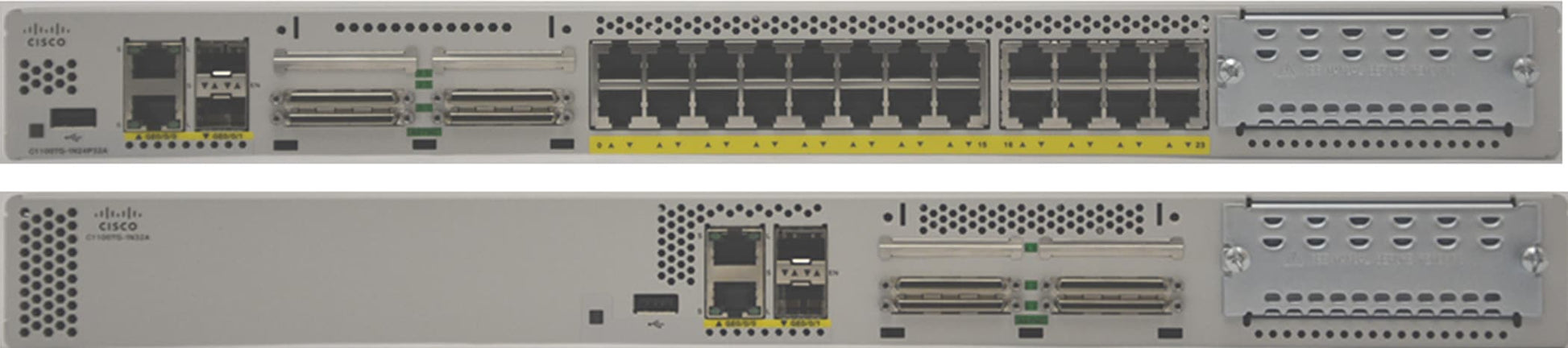

• Cisco C1100TGX-1N24P32A SD-WAN router with 2960X switch and ports
1 1

Cisco

Cisco C1100TGX-1N24P32A | 1100 Terminal Services Gateway, 24-Port, 32 Async, 8GB

C1100TGX-1N24P32A

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco 1100 Terminal Services Gateway is a 1RU appliance running Cisco IOS XE that gives secure remote management access to network, compute and IoT devices through 32 onboard RS-232 async ports. It suits data centre and cloud service provider out-of-band console access, as well as branch sites that need integrated routing, switching and security with optional LTE WAN.

This 8GB DRAM and 8GB flash model combines a 24-port 10/100/1000 Layer 2 switch with 2 GE/SFP WAN ports and one NIM slot. Each async port supports up to 230 kbps. A 16-port async daughter card slot expands the unit to 48 async ports, and a NIM-16A or NIM-24A takes it to a maximum of 72 async ports in 1RU. Aggregate throughput is 500 Mbps with Cisco Express Forwarding and 100 Mbps with IPsec. It has one USB 3.0 Type-A port, a console and aux port, and does not provide PoE.

The IOS XE universal image includes the IP Base technology package, with optional Application Experience and Security licences and Smart Licensing support. The NIM slot accepts Ethernet, LTE, async and serial NIMs, interchangeable with Cisco 4000 Series ISRs. Power is an internal AC or DC supply, with an optional external AC supply for redundancy.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Up to 72 async ports in 1RU with the optional 16-port daughter card and NIM-16A or NIM-24A
- Cisco IOS XE with a single universal image and right-to-use licensing
- Secure remote access with RADIUS and TACACS authentication, Cisco IOS Firewall, IPsec and NAT
- Secure Boot, code signing and hardware authentication
- Optional LTE Advanced 3.0 through NIM-LTEA-EA or NIM-LTEA-LA
- Redundant power with internal AC or DC primary and an external AC secondary supply
- NEBS Level 3 certified with the 19-inch rack kit and internal AC or DC supply
- Supports DMVPN, zone-based firewall, QoS, BGP, OSPF, EIGRP, MPLS, IPv4 and IPv6

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Async ports: 32 x onboard RS-232, up to 230 kbps per port
- LAN ports: 24 x 10/100/1000 Layer 2 switch
- WAN ports: 2 x GE/SFP
- NIM slots: 1 (OIR supported for NIMs)
- Async daughter card: 1 x 16-port slot, expands to 48 async ports
- DRAM: 8 GB DDR4 (fixed, non-upgradable)
- Flash: 8 GB (fixed)
- USB: 1 x USB 3.0/2.0 Type-A
- Console and aux: 1 console, 1 aux
- Throughput (CEF): 500 Mbps aggregate
- Throughput (IPsec): 100 Mbps aggregate
- Power supply: internal AC or DC
- AC input: 100 to 240V AC, 50 to 60 Hz, 1.6A maximum
- DC input: 48 to 60V, 4.2A
- Typical power: 50W with no modules
- Maximum power: 110W (no PoE)
- Dimensions (H x W x D): 44 x 444 x 305 mm
- Rack height: 1RU, 19-inch EIA
- Weight: 4.52 kg (AC power supply)
- Operating temperature: 0 to 40 C
- Humidity: 5% to 85% relative
- NEBS: GR-1089-CORE, GR-63-CORE

FAQs

Q: Which software licences does it use?
A: It ships with the Cisco IOS XE universal image and the IP Base technology package. Optional Application Experience (SL-1100TG-APP-K9) and Security (SL-1100TG-SEC-K9) licences are available, and Smart Licensing is supported.

Q: How many async ports can it support?
A: It has 32 onboard RS-232 async ports. Adding the 16-port daughter card takes it to 48, and a NIM-16A or NIM-24A in the NIM slot allows up to 72 async ports in 1RU.

Q: Does it provide PoE?
A: No. The 24 LAN switch ports are 10/100/1000 without PoE. The unit draws a maximum of 110W from its internal AC or DC power supply.

Q: Which NIMs does the NIM slot accept?
A: It accepts NIM-ES2-4 and NIM-ES2-8 Ethernet, NIM-LTEA-EA and NIM-LTEA-LA LTE, NIM-16A and NIM-24A async, and NIM-1T, NIM-2T and NIM-4T serial modules from IOS XE 17.4.

Q: Can the power supply be made redundant?
A: Yes. The internal AC or DC supply is the primary, and an external AC supply (PWR-4320-AC) can be added as a secondary for power redundancy.
