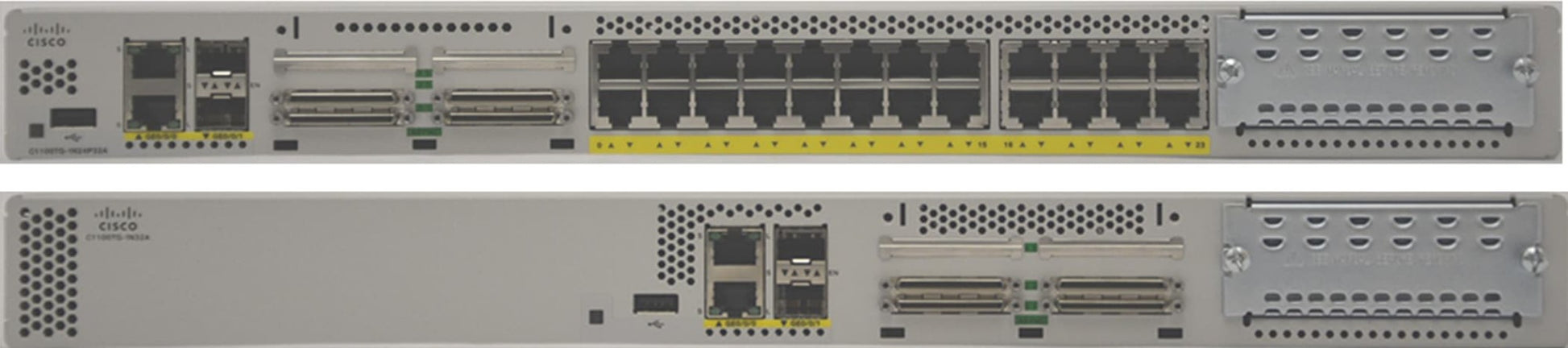

• Cisco C1100TG-1N32A 1100 Terminal Gateway with Catalyst 3850 switch
1 1

Cisco

Cisco C1100TG-1N32A | 1100 Terminal Services Gateway, 32 Async, 1 NIM

C1100TG-1N32A

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco 1100 Series Terminal Services Gateway is a 1RU terminal server and router running Cisco IOS XE. It gives secure remote console access to network, compute and IoT devices through 32 onboard RS-232 async ports, making it well suited to data-centre and cloud-provider out-of-band management and to secure access to equipment behind a firewall.

This C1100TG-1N32A model has 32 async ports at up to 230 Kbps each, two 10/100/1000 WAN ports (RJ45 or SFP) and one NIM slot with online insertion and removal. An optional 16-port async daughter card takes it to 48 ports, and with a NIM-16A or NIM-24A it scales to 72 async ports. It does not include the 24-port Layer 2 switch found on the C1100TG-1N24P32A. It has 2 GB DDR4 DRAM, 4 GB flash, and delivers 500 Mbps aggregate throughput with CEF and 100 Mbps with IPsec. It ships with the IP Base technology package on the universal IOS XE image, with optional Application Experience and Security licences available.

Supported NIMs include NIM-ES2-4, NIM-ES2-8, NIM-LTEA-EA, NIM-LTEA-LA, NIM-16A, NIM-24A, NIM-1T, NIM-2T and NIM-4T. The optional C1100TG-16A async module and CAB-ASYNC-8 cable are also supported. Power is supplied by an internal AC or DC supply, with an optional external AC supply for redundancy.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Secure remote management of network, compute and IoT devices through async console ports
- Cisco IOS XE with IOS Firewall, IPsec, NAT, DMVPN and zone-based firewall
- RADIUS and TACACS+ authentication for remote users
- Secure Boot, code signing and hardware authentication
- Optional external AC power supply for power redundancy
- NIM slot shares NIMs with the Cisco 4000 Series ISR, including Ethernet, LTE Advanced, async and serial modules
- Smart Licensing with a universal IOS XE image
- NEBS Level 3 certified with the 19-inch rack kit and internal power supply

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Async ports: 32 x onboard RS-232 (up to 230 Kbps per port)
- WAN ports: 2 x 10/100/1000 (RJ45 or SFP)
- NIM slots: 1 (online insertion and removal)
- Maximum async ports: 48 with optional 16-port daughter card, up to 72 with NIM-16A or NIM-24A
- Aggregate throughput (CEF): 500 Mbps
- Aggregate throughput (IPsec): 100 Mbps
- DRAM: 2 GB DDR4 (fixed, non-upgradable)
- Flash: 4 GB (fixed)
- USB: 1 x USB 3.0 and 1 x USB 2.0 (Type A)
- Serial data rates: 300 bps to 230400 bps (9600 default), 7 or 8 data bits
- Power supply: internal AC or DC, chosen at order
- AC input: 100 to 240V AC, 50 to 60 Hz, 1.6A maximum
- DC input: 48 to 60V, 4.2A
- Typical power (no modules): 30W
- Maximum power: 80W (no PoE)
- Form factor: 1 RU, 19-inch rack-mount
- Dimensions (H x W x D): 44 x 444 x 305 mm (1.73 x 17.5 x 12 in.)
- Weight (AC PSU, no modules): 4.22 kg (9.31 lb)
- Operating temperature: 0 to 40 C (32 to 104 F)
- Airflow: I/O side to fan side
- MTBF at 25 C: 739,252 hours
- NEBS: GR-1089-CORE, GR-63-CORE

FAQs

Q: What licence does the C1100TG-1N32A use?
A: It runs the universal Cisco IOS XE image with the IP Base technology package by default. Optional Application Experience (SL-1100TG-APP-K9) and Security (SL-1100TG-SEC-K9) licences are available, and Smart Licensing is used by default.

Q: How is the C1100TG-1N32A powered?
A: It uses an internal AC (PWR-1100TG-AC) or DC (PWR-1100TG-DC) power supply selected at order. Typical draw is 30W with no modules and maximum draw is 80W. An optional external AC supply, PWR-4320-AC, provides power redundancy.

Q: Which NIMs can I fit in the NIM slot?
A: Supported NIMs are NIM-ES2-4, NIM-ES2-8, NIM-LTEA-EA, NIM-LTEA-LA, NIM-16A, NIM-24A, NIM-1T, NIM-2T and NIM-4T. Serial NIMs require IOS XE 17.4 or later.

Q: How many async ports can this gateway support?
A: It has 32 onboard async ports. Adding the optional 16-port C1100TG-16A daughter card gives 48 ports, and with a NIM-16A or NIM-24A it scales up to 72 async ports.

Q: How does this model differ from the C1100TG-1N24P32A?
A: The C1100TG-1N32A has 32 async ports, two Gigabit WAN ports and one NIM slot, with 2 GB DRAM. It does not include the 24-port Layer 2 switch that the C1100TG-1N24P32A has.
