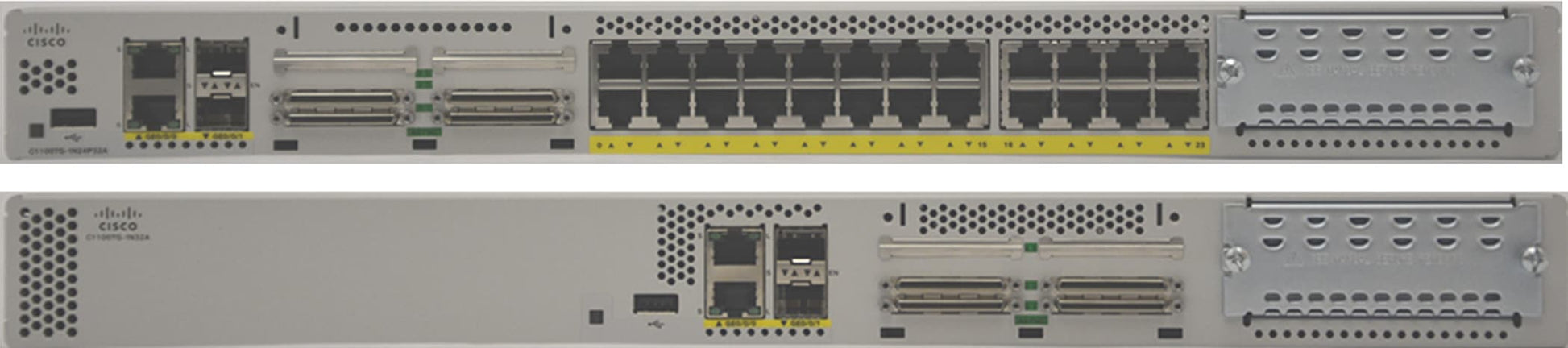

• Cisco C1100TG-1N24P32A 1100 Terminal Gateway with 2960X switch
1 1

Cisco

Cisco C1100TG-1N24P32A | 1100 Terminal Gateway, 32 Async, 24-Port Gigabit, 1 NIM

C1100TG-1N24P32A

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco 1100 Terminal Services Gateway is a 1RU console server for secure out-of-band access to routers, switches, servers and IoT devices. It suits data centres and remote sites, and lets service providers reach equipment that sits behind a firewall. It runs Cisco IOS XE and authenticates remote users through RADIUS or TACACS+.

This SKU combines 32 onboard RS-232 async ports, rated up to 230.4 Kbps per port, with a 24-port 10/100/1000 RJ-45 Layer 2 switch. It also provides 2 GE WAN ports (RJ-45 or SFP combo) and one NIM slot. Aggregate throughput is 500 Mbps with CEF and 100 Mbps with IPsec. The fixed memory is 4 GB DDR4 DRAM and 4 GB flash. An optional 16-port async daughter card, together with a NIM-24A, takes the total to 72 async ports.

The NIM slot accepts NIM-16A and NIM-24A async modules, NIM-ES2-4 and NIM-ES2-8 Ethernet modules, NIM-LTEA-EA and NIM-LTEA-LA LTE modules, and NIM-1T, NIM-2T and NIM-4T serial modules. The unit runs a single universal IOS XE image with IP Base by default, and Smart Licensing is supported.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Up to 72 async ports in 1RU for secure out-of-band console aggregation
- Integrated Layer 2 Gigabit switching, security and routing in one chassis
- Cisco IOS XE with IOS Firewall, IPsec VPN, DMVPN, zone-based firewall and NAT
- Secure authentication of remote users via RADIUS or TACACS+
- Optional LTE Advanced 3.0 through NIM-LTEA modules
- Secure Boot, code signing and hardware authentication
- NEBS Level 3 certified with the 19-inch rack kit and internal power supply
- NIMs are interchangeable with Cisco 4000 Series ISRs

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Async ports: 32 x onboard RS-232, up to 230.4 Kbps per port
- LAN switch ports: 24 x 10/100/1000 RJ-45 Layer 2
- WAN ports: 2 x GE (RJ-45 or SFP combo)
- NIM slots: 1
- Daughter card: optional 16-port async, up to 72 async ports in total with a NIM-24A
- Aggregate throughput (CEF): 500 Mbps
- Aggregate throughput (IPsec): 100 Mbps
- DRAM: 4 GB DDR4 (fixed)
- Flash: 4 GB (fixed)
- USB: 1 x USB 3.0 and 1 x USB 2.0, type A
- Console and Aux: 1 Console and 1 Aux port (rear)
- Serial data rates: 300 bps to 230400 bps
- Power supply options: internal AC (100 to 240V AC) or DC (48 to 60V)
- Typical power (no modules): 48W
- Maximum power: 110W (no PoE)
- Dimensions (H x W x D): 44 x 444 x 305 mm (1.73 x 17.5 x 12 in.)
- Rack height: 1 rack unit, 19-inch rack-mount kit
- Weight with internal AC PSU (no modules): 4.52 kg
- Operating temperature: 0 to 40 C
- Relative humidity: 5% to 85%
- Fans: 3 non-field-replaceable fans on rear panel

FAQs

Q: Which licence does the C1100TG-1N24P32A run?
A: It runs a single universal Cisco IOS XE image with IP Base included by default. Optional right-to-use licences are SL-1100TG-APP-K9 for Application Experience and SL-1100TG-SEC-K9 for Security. Smart Licensing is supported and a Smart Account is required when ordering.

Q: How many async ports can this gateway support?
A: It has 32 onboard RS-232 async ports. Adding the optional C1100TG-16A 16-port daughter card and a NIM-24A in the NIM slot brings the total to 72 async ports.

Q: Which NIMs fit the NIM slot?
A: The slot supports NIM-16A and NIM-24A async, NIM-ES2-4 and NIM-ES2-8 Ethernet, NIM-LTEA-EA and NIM-LTEA-LA LTE, and NIM-1T, NIM-2T and NIM-4T serial modules. The serial NIMs need IOS XE 17.4 or later.

Q: What power options does it use?
A: The internal power supply is ordered as AC (PWR-1100TG-AC, 100 to 240V AC) or DC (PWR-1100TG-DC, 48 to 60V). Typical draw is 48W with no modules and maximum is 110W. An optional external AC supply, PWR-4320-AC, provides power redundancy.

Q: Which rack kits are available?
A: The 19-inch kit ACS1100TG-RM19 is the default. A 23-inch kit, ACS1100TG-RM23, is available as an option.
