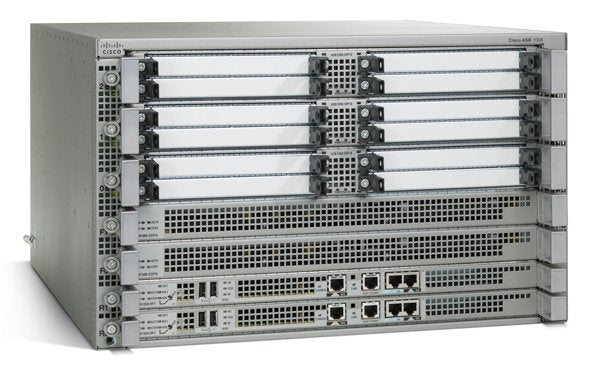

• Cisco ASR1K6R2-100-VPNK9 6-slot modular edge router chassis in rack
1 1

Cisco

Cisco ASR1K6R2-100-VPNK9 | ASR 1000 Router, 6-Slot, RP2, ESP100, VPN K9

ASR1K6R2-100-VPNK9

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The ASR 1000 Series ASR1K6R2-100-VPNK9 is a bundled configuration built around the 6-slot ASR 1006 chassis, fitted with a Route Processor 2 (RP2) and a 100-Gbps Embedded Services Processor (ESP100). It is a modular WAN aggregation router aimed at enterprise data-centre edge and service provider POP deployments, where it typically serves as a WAN aggregation point, IPsec VPN headend, firewall and NAT platform or data-centre interconnect router.

The chassis provides 2 ESP slots and 2 route-processor slots for hardware redundancy, plus support for up to 3 SIPs or Ethernet line cards and 12 SPA slots. The RP2 ships with 8 GB of DRAM as standard. The ESPs use Cisco Flow Processor technology to accelerate crypto, NAT, Zone-Based Firewall, DPI, CUBE and DCI features, with QoS, cryptography and ACLs processed in hardware. The VPN K9 designation means the crypto-enabled IOS XE image is part of this SKU, and the series supports up to 8,000 IPsec tunnels.

The ASR 1006 takes SIPs such as the ASR1000-SIP10 and SIP-40 together with shared port adapters, and is powered by redundant AC or DC supplies (ASR1006-PWR-AC / ASR1006-PWR-DC). It runs Cisco IOS XE with ISSU support and can be enabled for Cisco SD-WAN.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Hardware and software redundancy, with redundant route processors and ESPs on the ASR 1006
- ESPs based on Cisco Flow Processor technology accelerate crypto, NAT, Zone-Based Firewall, DPI, CUBE and DCI features
- QoS, cryptography and ACLs processed in hardware
- Control- and forwarding-plane separation so each can scale independently
- In-Service Software Upgrade (ISSU) and IOS XE sub-package mode for upgrades without downtime windows
- IPsec VPN aggregation, with the series supporting up to 8,000 IPsec tunnels
- Runs Cisco IOS XE and can be enabled for Cisco SD-WAN

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Chassis: Cisco ASR 1006, 6-slot
- Route processor: ASR1000-RP2
- Embedded Services Processor: ASR1000-ESP100, 100 Gbps
- Default memory: 8-GB DRAM (RP2)
- Route processor slots: 2
- ESP slots: 2
- Redundancy: Hardware redundancy supported
- SIPs or Ethernet line cards supported: 3
- Shared port adapter slots: 12
- Built-in Gigabit Ethernet ports: 0
- Height: 10.5 in. (266.7 mm)
- Width: 17.2 in. (437.4 mm)
- Depth: 18.15 in. (461.0 mm)
- Weight (fully loaded reference config, dual AC PSU): 98.70 lb (44.77 kg)
- Software image: VPN K9 IOS XE (crypto/IPsec enabled)

FAQs

Q: What does VPN K9 mean in this SKU?
A: VPN K9 denotes the crypto-enabled IOS XE software image bundled with this SKU, which enables IPsec VPN functionality.

Q: Does it need additional licensing?
A: The ASR 1000 Series supports Cisco Smart Licensing and Cisco DNA licences. Feature and throughput licences are separate from this bundle.

Q: Which line cards and port adapters does the ASR 1006 chassis take?
A: It takes SIPs such as the ASR1000-SIP10 and SIP-40 together with shared port adapters. The chassis offers 3 SIP or Ethernet line card positions and 12 SPA slots.

Q: How is the ASR 1006 chassis powered?
A: The ASR 1006 uses redundant AC or DC power supplies, ASR1006-PWR-AC or ASR1006-PWR-DC.

Q: Does the chassis support redundancy?
A: Yes. It has 2 route processor slots and 2 ESP slots, giving hardware redundancy for both the control plane and the forwarding plane.
