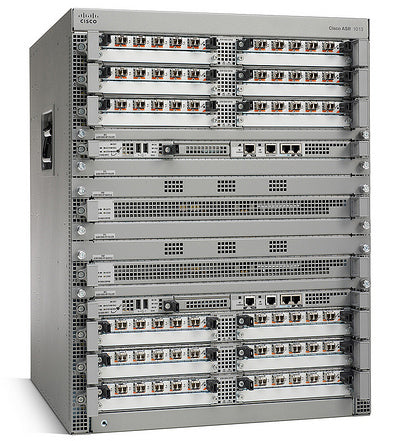

• Cisco ASR1013 silver rack chassis with slots, ports, redundant PSUs
1 1

Cisco

Cisco ASR1013 | ASR 1000 Modular Router Chassis, 13RU, 6 SIP Slots

ASR1013

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The ASR 1013 is a 13RU modular chassis from the Cisco ASR 1000 Series Aggregation Services Routers, running Cisco IOS XE. It is built for enterprise WAN edge, data centre and large office edge aggregation, data centre interconnect, branch aggregation and service provider POPs, and is a common step when migrating from the 7200 Series.

The chassis provides 2 ESP slots and 2 route processor slots, so route processors, ESPs and power supplies can all be deployed redundantly. Six SIP or Ethernet line card slots give 24 SPA slots or 12 EPA slots, and ESP bandwidth scales from 40 to 200 Gbps depending on the ESP fitted. It uses redundant quad power supplies in AC or DC, with AC and DC not mixed in one chassis, and front-to-back airflow.

It works with RP2 and RP3 route processors, ESP40, ESP100, ESP100-X and ESP200 forwarding engines, SIP40 and MIP100 carrier cards, the 2T+20X1GE and 6TGE line cards, and existing Cisco SPAs and EPAs. Software and feature licences are ordered separately, with Cisco DNA subscription and Smart Licensing supported.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Redundant route processors, ESPs and power supplies for high availability
- In-Service Software Upgrade (ISSU) and hardware redundancy support
- ESPs accelerate QoS, encryption, ACLs, NAT, firewall and CUBE
- Cisco IOS XE modular software with sub-package mode upgrades
- Supports Cisco SD-WAN with integrated security
- Reuses existing Cisco SPAs, EPAs and SIPs for investment protection
- 99.999% availability through stateful redundancy

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Form factor: 13RU modular chassis, 19-inch rack mount
- ESP slots: 2
- ESP bandwidth: 40 to 200 Gbps
- Route processor slots: 2 (RP2/RP3)
- SIP or Ethernet line card slots: 6
- SPA slots: 24
- EPA slots: 12
- Built-in Gigabit Ethernet ports: 0
- Default memory: 8-GB DRAM (RP2 and RP3)
- ESP support: ASR1000-ESP40, ASR1000-ESP100, ASR1000-ESP100-X, ASR1000-ESP200
- Line card support: ASR1000-SIP40, ASR1000-MIP100, ASR1000-2T+20X1GE, ASR1000-6TGE
- Embedded encryption: up to 11 Gbps (ESP40), 29 Gbps (ESP100), 78 Gbps (ESP200), 142 Gbps (ESP100-X)
- Redundant power: quad power supplies in redundant pairs, AC or DC
- AC input: 180 to 264V, 50/60 Hz
- DC input: -40.5 to -72V (-48V nominal)
- Power consumption: maximum 4200W (DC), 4000W (AC high line), 3390W output
- Airflow: front-to-back
- Dimensions (H x W x D): 579.1 x 437.4 x 461.0 mm
- Weight (typical configuration): 83.46 kg
- Operating temperature: 0 to 40 C nominal, 0 to 50 C short-term
- Operating humidity: 10 to 85% RH nominal
- Operating altitude: -152 to 3048 m
- External storage: 1-GB USB flash memory support
- Compliance: NEBS GR-1089 and GR-63, UL60950-1, AS/NZS 60950.1

FAQs

Q: What licensing does the ASR 1013 need?
A: It runs Cisco IOS XE and supports Cisco DNA subscription licensing (DNA Advantage and DNA Premier) and Cisco Smart Licensing. Software image and feature licences are ordered separately.

Q: What power options does it support?
A: It uses redundant quad power supplies in either AC (180 to 264V) or DC (-40.5 to -72V). AC and DC supplies cannot be mixed in one chassis.

Q: Which route processors and ESPs does it support?
A: It supports RP2 and RP3 route processors and the ASR1000-ESP40, ESP100, ESP100-X and ESP200 forwarding engines.

Q: Which line cards and port adapters can I fit?
A: It accepts ASR1000-SIP40 and ASR1000-MIP100 carrier cards, the ASR1000-2T+20X1GE and ASR1000-6TGE line cards, and Cisco SPAs and EPAs.

Q: What is the maximum IOS XE release for this chassis?
A: The last supported Cisco IOS XE release for the ASR 1000 platform is 17.6.
