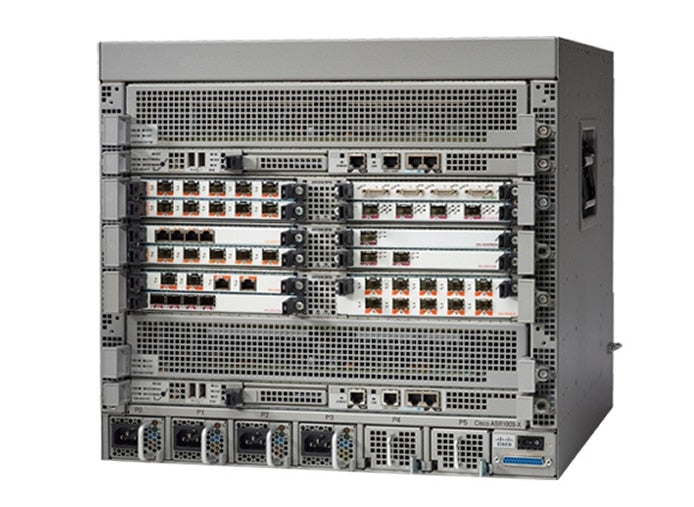

• Cisco ASR1009-X 9-slot router chassis with Nexus 9018 switch
1 1

Cisco

Cisco ASR1009-X | ASR 1000 9RU Router Chassis, 2 ESP, 2 RP, 3 SIP

ASR1009-X

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The ASR 1009-X is a 9RU modular edge router chassis from the Cisco ASR 1000 Series, built for WAN aggregation, secure WAN, Internet edge, data centre interconnect and Intelligent WAN deployments in medium and high-end enterprises and service provider PoPs. It runs Cisco IOS XE and supports Cisco SD-WAN.

The chassis provides up to 200 Gbps of total system bandwidth, up to 130 Mpps of packet-forwarding performance and up to 86 Gbps of IPsec throughput. It has 2 Embedded Services Processor slots and 2 Route Processor slots for hardware redundancy, plus 3 SIP or Ethernet line card slots rated at 200 Gbps each, 12 SPA slots and 6 EPA slots. Up to six AC or DC power supplies can be fitted with N+1 redundancy, and cooling is handled by three field-replaceable fan trays with front-to-back airflow. Throughput on the -X models is unlocked by software licence, and the platform supports Cisco DNA subscription licences and Smart Licensing.

The chassis accepts ASR1000-ESP100, ESP100-X, ESP200 and ESP200-X Embedded Services Processors, ASR1000-RP2 and RP3 route processors, ASR1000-MIP100 modules, SPAs and EPAs.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Redundant route processors and ESPs for hardware high availability
- Cisco IOS XE modular operating system with In-Service Software Upgrade (ISSU) support
- Flow Processor-based ESPs accelerate crypto, NAT, Zone-Based Firewall, DPI and CUBE services
- Three 200 Gbps line card slots for high-density 1, 10, 40 and 100 Gigabit Ethernet
- Connectivity through SPAs and SPA Interface Processors (SIP)
- Power on demand with up to six AC or DC power supplies and N+1 redundancy
- Supports Cisco Software-Defined WAN
- Software-based pay-as-you-grow throughput licensing on the -X models

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Chassis: 9RU modular
- Total system bandwidth: up to 200 Gbps
- Packet-forwarding performance: up to 130 Mpps
- IPsec throughput: up to 86 Gbps
- Embedded Services Processor slots: 2
- Route Processor slots: 2 (hardware redundancy)
- SIP or Ethernet line card slots: 3 (200 Gbps each)
- Shared port adapter slots: 12 SPA
- Ethernet port adapter slots: 6 EPA
- Built-in Gigabit Ethernet ports: 0
- Default memory: 8 GB DRAM (RP2 or RP3)
- Power supplies: up to 6 AC or DC with N+1 redundancy
- Cooling: 3 field-replaceable fan trays, front-to-back airflow
- Height: 15.72 in. (399.3 mm)
- Width: 17.2 in. (437.4 mm)
- Depth: 18.15 in. (461.0 mm)
- Weight (empty): 50 lb
- Weight (fully loaded): 154 lb (70 kg)

FAQs

Q: Does the ASR1009-X need a licence?
A: It runs Cisco IOS XE, and throughput on the -X models is unlocked by software licence. The platform supports Cisco DNA Advantage and Cisco DNA Premier subscriptions and Cisco Smart Licensing through a Smart Account.

Q: Which processors and modules does it accept?
A: It takes ASR1000-ESP100, ESP100-X, ESP200 and ESP200-X Embedded Services Processors, ASR1000-RP2 and RP3 route processors, ASR1000-MIP100 modules, SPAs and EPAs.

Q: How many power supplies can it hold?
A: It supports up to six AC or DC power supplies with N+1 redundancy.

Q: How many line cards and port adapters can it take?
A: The chassis has 3 SIP or Ethernet line card slots at 200 Gbps each, 12 SPA slots and 6 EPA slots.

Q: Does it support SD-WAN?
A: Yes. The ASR 1000 platform runs Cisco IOS XE and supports Cisco Software-Defined WAN.
