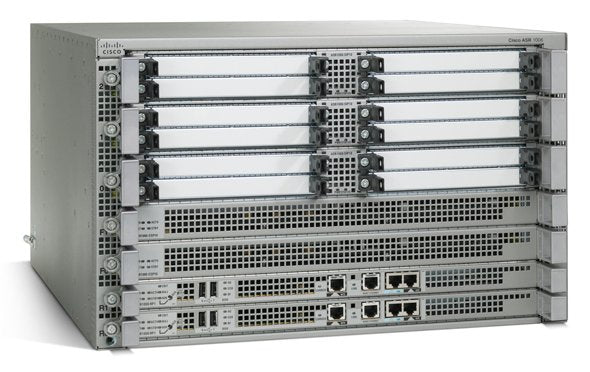

• Cisco ASR1006-SB 6-slot aggregation router chassis in rack
1 1

Cisco

Cisco ASR1006-SB | ASR 1000 6-Slot Modular Router Chassis, Security Bundle

ASR1006-SB

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The ASR 1006 is a 6RU modular aggregation services router chassis from the Cisco ASR 1000 Series, built for service provider edge, WAN aggregation and enterprise edge deployments. It can also serve as a high-end route reflector. This -SB variant is the 6-slot chassis in the Security Bundle (-SB) configuration.

The chassis takes three SPA Interface Processors, giving twelve SPA slots in total, plus two Embedded Services Processors (ASR1000-ESP10, ESP20, ESP40 or ESP100). Route Processors, ESPs and power supplies can be installed redundantly, and the ASR 1006 supports hardware redundancy and in-service software upgrade (ISSU). Power is provided by dual AC or DC supplies, with a DC system input rating of 40 A on a 50 A breaker using AWG #6 wire.

Physically it is a 19-inch rack-mount unit measuring 10.45 in. high, 17.25 in. wide and 22.50 in. deep, weighing 77.1 lb when fully configured. It works with Cisco ASR 1000 Series SIPs, shared port adapters (SPAs), Route Processors and the ESP10 to ESP100 Embedded Services Processors.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Modular design with separate Route Processor and Embedded Services Processor
- Hardware and software redundancy across Route Processors, ESPs and power supplies
- In-service software upgrade (ISSU) supported on the ASR 1006
- Supports ESP10, ESP20, ESP40 and ESP100 Embedded Services Processors
- Supports Cisco ASR 1000 Series SIPs and shared port adapters (SPAs)
- Twelve SPA slots across three SIPs for flexible interface density
- Runs Cisco IOS XE software

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Form factor: 6RU, 19-inch rack-mount modular chassis
- SPA Interface Processor slots: 3 x Cisco ASR 1000 Series SIP
- SPA slots: 12 in total
- Embedded Services Processor slots: 2 x (ASR1000-ESP10, ESP20, ESP40 or ESP100)
- Redundancy: hardware redundancy and ISSU supported
- Power: dual AC or DC power supplies, redundant
- DC power system input rating: 40 A
- DC power circuit breaker: 50 A
- DC power wire gauge: AWG #6
- Height: 10.45 in. (26.54 cm), 6RU per EIA RS-310
- Width: 17.25 in. (43.82 cm)
- Depth: 22.50 in. (57.15 cm) including card handles and cable-management brackets
- Weight (fully configured): 77.1 lb (34.97 kg)

FAQs

Q: What does the -SB suffix mean on this chassis?
A: The -SB suffix identifies the Security Bundle version of the ASR 1006 6-slot chassis, which distinguishes it from other ASR 1006 bundles.

Q: How many interface and services processor slots does the ASR 1006 have?
A: It has three SPA Interface Processor (SIP) slots, giving twelve SPA slots in total, and two Embedded Services Processor (ESP) slots.

Q: Which Embedded Services Processors can be fitted?
A: The chassis supports the ASR1000-ESP10, ESP20, ESP40 and ESP100 Embedded Services Processors.

Q: Does the chassis support redundancy?
A: Yes. The ASR 1006 supports hardware redundancy for Route Processors, ESPs and power supplies, and also supports in-service software upgrade (ISSU).

Q: What power options does it use?
A: It uses dual redundant AC or DC power supplies. The DC system has a 40 A input rating on a 50 A circuit breaker using AWG #6 wire.
