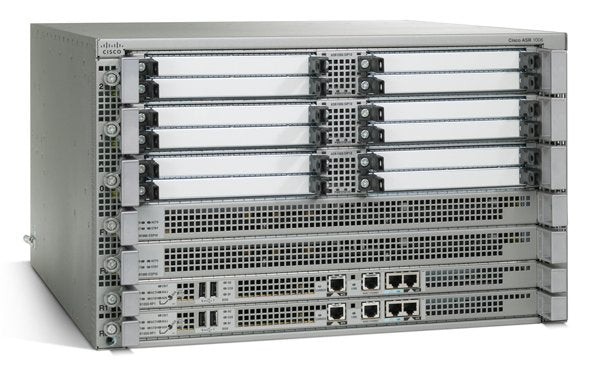

• Cisco ASR1006 6-slot modular router chassis in rack
1 1

Cisco

Cisco ASR1006 | ASR 1000 6-Slot Modular Router Chassis, Dual P/S

ASR1006

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The ASR 1006 is a modular 6-slot chassis from the Cisco ASR 1000 Series Aggregation Services Routers, built for service-provider and enterprise WAN aggregation, WAN edge and data-centre interconnect. It runs Cisco IOS XE and is designed for deployments that need hardware and software redundancy, with services such as firewall, NAT, IPsec, CUBE and DCI handled by the Embedded Services Processor.

The chassis provides 2 route processor slots and 2 ESP slots for hardware redundancy, plus 3 SIP slots that together support 12 Shared Port Adapter slots. This SKU is the Dual P/S chassis, so it is configured with dual power supplies. It has no built-in Gigabit or 10 Gigabit Ethernet ports, so connectivity comes from the SIPs and SPAs you install. Memory defaults to 4 GB DRAM with an RP1 or 8 GB DRAM with an RP2. The ASR 1006 supports ISSU and stateful intrachassis redundancy.

It takes ASR1000-RP1 and RP2 route processors, ASR1000-ESP10, ESP40 and ESP100 ESPs, ASR1000-SIP10 and SIP40 SIPs, and compatible SPAs. Software licensing on the ASR 1000 family uses Cisco DNA subscriptions through Smart Licensing, and the licence depends on the RP, ESP and software image selected.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Redundant route processors and ESPs, with ISSU support
- Flow Processor-based ESPs accelerate crypto, NAT, Zone-Based Firewall, DPI, CUBE and DCI services
- Modular Cisco IOS XE Software with sub-package mode upgrades
- Stateful intrachassis redundancy, positioned for five-nines availability
- Line-rate aggregation of WAN connections across the ASR 1000 family
- Reuses Cisco SPA investment across platforms

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Model: Cisco ASR 1006
- Chassis: 6-slot modular, Dual P/S
- Route processor slots: 2
- Embedded Services Processor (ESP) slots: 2
- SIP / Ethernet line card slots: 3
- Shared Port Adapter (SPA) slots: 12
- Built-in Gigabit Ethernet ports: 0
- Built-in 10 Gigabit Ethernet port: No
- Default memory: 4 GB DRAM (RP1) or 8 GB DRAM (RP2)
- Operating system: Cisco IOS XE
- Hardware redundancy: Yes
- Height: 10.5 in. (266.7 mm)
- Width: 17.2 in. (437.4 mm)
- Depth: 18.15 in. (461.0 mm)
- Weight (fully configured): 98.70 lb (44.77 kg), with dual AC power supply, route processor, two ESPs, two RP1s and three SIPs, no SPAs

FAQs

Q: Does the ASR 1006 chassis come with a software licence?
A: No. The chassis itself carries no software tier. Licensing on the ASR 1000 family uses Cisco DNA subscriptions (DNA Advantage and DNA Premier) through Smart Licensing, and depends on the route processor, ESP and software image you order.

Q: Which route processors, ESPs and SIPs does it take?
A: It takes ASR1000-RP1 and RP2 route processors, ASR1000-ESP10, ESP40 and ESP100 ESPs, and ASR1000-SIP10 and SIP40 SIPs, along with compatible Shared Port Adapters.

Q: How many interface modules can it hold?
A: The chassis has 3 SIP slots supporting 12 SPA slots in total. It has no built-in Ethernet ports, so SIPs and SPAs provide the interfaces.

Q: Does the ASR 1006 support hardware redundancy?
A: Yes. It has 2 route processor slots and 2 ESP slots for hardware redundancy, supports ISSU, and this SKU is the Dual P/S chassis.

Q: How does ASR1006 differ from ASR1006=?
A: ASR1006 is the Dual P/S 6-slot chassis, while ASR1006= is the spare chassis SKU for the same platform.
