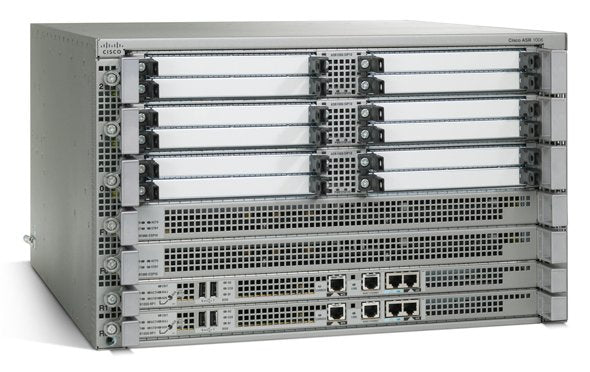

• Cisco ASR1006-10G-SHA/K9 10GbE-ready modular edge router in rack
1 1

Cisco

Cisco ASR1006-10G-SHA/K9 | ASR 1000 Router, Security HA Bundle, 2x ESP10, 2x RP1

ASR1006-10G-SHA/K9

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco ASR 1006 Security HA Bundle is a modular aggregation services router from the ASR 1000 series, built for WAN edge and enterprise headend roles that need hardware-redundant security services. It suits IPsec VPN aggregation, embedded zone-based firewall deployments, managed CPE and service-provider edge work without separate service blades.

This bundle pairs two 10 Gbps ASR1000-ESP10 Embedded Services Processors with two ASR1000-RP1 Route Processors, giving 1+1 hardware redundancy for both forwarding and control. The RP1 modules ship with 4 GB of DRAM by default. One ASR1000-SIP10 SPA Interface Processor is included as a carrier card, and the 6RU chassis supports up to three SIPs and 12 SPA slots. It runs the SASR1R1-AESK9-21SR consolidated IOS XE package (Advanced Enterprise Services) with Right-To-Use licences for IPsec VPN, Firewall, NBAR plus FPM and IOS Software Redundancy.

I/O is built from Cisco Shared Port Adapters, so existing SPA investment can be reused. The ESP10 is also supported in the ASR 1002 and ASR 1004 chassis, and the ASR 1006 accepts ESP40 and ESP100 processors.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Hardware redundancy for route processors and ESPs, with ISSU support on the ASR 1006
- QuantumFlow Processor-based forwarding, with QoS, cryptography and ACLs processed in hardware
- Embedded IPsec VPN, Zone-Based Policy Firewall and NBAR/FPM without extra service blades
- Stateful intrachassis redundancy for high availability designs
- IOS XE modular software with sub-package mode upgrades
- Reuses Cisco Shared Port Adapters for I/O investment protection

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Chassis: Cisco ASR 1006, 6RU modular
- Embedded Services Processors: 2 x ASR1000-ESP10 (10 Gbps each)
- Route Processors: 2 x ASR1000-RP1
- Default memory: 4 GB DRAM on RP1
- SPA Interface Processor: 1 x ASR1000-SIP10 (carrier card)
- SIPs supported: 3
- Shared port adapter slots: 12
- ESP slots: 2
- Route processor slots: 2
- Redundancy: hardware, RP and ESP 1+1
- Built-in Gigabit Ethernet ports: 0
- Software package: SASR1R1-AESK9-21SR consolidated (Advanced Enterprise Services, IOS XE)
- Included licences: IPsec VPN RTU, Firewall RTU, NBAR+FPM RTU, IOS Software Redundancy RTU
- Height: 10.5 in. (266.7 mm)
- Width: 17.2 in. (437.4 mm)
- Depth: 18.15 in. (461.0 mm)
- Weight (fully configured, dual AC PSU, 2 x ESP10, 2 x RP1, 3 x SIP10, no SPAs): 98.70 lb (44.77 kg)

FAQs

Q: Which licences does this bundle include?
A: It includes the SASR1R1-AESK9-21SR consolidated IOS XE package (Advanced Enterprise Services) plus Right-To-Use licences for IPsec VPN, Firewall, NBAR+FPM and IOS Software Redundancy. Session-based licences are extra where needed.

Q: Which power supplies does the ASR 1006 chassis use?
A: The chassis takes redundant AC power supplies (ASR1006-PWR-AC) or DC power supplies (ASR1006-PWR-DC).

Q: What line cards and port adapters does it work with?
A: It works with the ASR1000-SIP10 and SIP40 SPA Interface Processors and Cisco Shared Port Adapters, with 12 SPA slots across up to three SIPs. IOS XE is required.

Q: Can this chassis run different ESPs or route processors?
A: The ASR 1006 also accepts ESP40 and ESP100 processors, and the RP1 can be replaced by an RP2 in some configurations. This bundle ships with 2x ESP10 and 2x RP1.

Q: Does the bundle include built-in Ethernet ports?
A: No. The router has no built-in Gigabit or 10 Gigabit Ethernet ports. Connectivity comes from Shared Port Adapters fitted to the SIP carrier cards.
