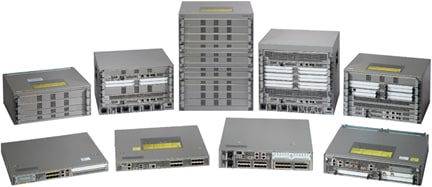

• Cisco ASR1004-10G-HA/K9 router with silver server rack and 10G ports
1 1

Cisco

Cisco ASR1004-10G-HA/K9 | ASR 1004 Router, ESP10 10G, HA Bundle, AESK9

ASR1004-10G-HA/K9

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco ASR 1004 is a modular aggregation services router from the ASR 1000 Series. It suits service provider and large enterprise WAN aggregation, Internet and WAN edge roles, and branch or campus aggregation where modular SPA interfaces and software redundancy are needed.

This High Availability bundle pairs the ASR 1004 chassis with a 10-Gbps Embedded Services Processor (ASR1000-ESP10), a Route Processor 1 (ASR1000-RP1) with 4-GB DRAM as standard, and a SPA Interface Processor 10 (ASR1000-SIP10). The chassis provides one ESP slot, one route-processor slot, two SIP slots and eight SPA slots. It is configured with a dual AC power supply, and the ESP10 draws 188 W maximum (140 W typical). Redundancy is delivered in software through redundant Cisco IOS XE instances.

The bundle includes the K9 Advanced Enterprise Services (AESK9) software package. The ESP10 is supported in ASR 1002, ASR 1004 and ASR 1006 chassis and requires Cisco IOS XE 2.1 or later. The ASR 1004 also accepts 20G and 40G ESPs, with the 40G option requiring IOS XE 3.2.0S or later.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Software redundancy through redundant instances of Cisco IOS XE Software
- Modular ESP, RP and SIP/SPA architecture for flexible WAN aggregation interfaces
- ESP10 supports OIR, NSF and SSO
- Cisco IOS XE modular software with high-performance services such as firewall, NAT, IPsec and QoS, depending on licence
- K9 Advanced Enterprise Services (AESK9) software package
- ESP upgrade path within the ASR 1004 to 20G and 40G options

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Chassis: Cisco ASR 1004 (modular)
- Embedded Services Processor: ASR1000-ESP10 (10 Gbps)
- Route processor: ASR1000-RP1, 4-GB DRAM default
- SPA Interface Processor: ASR1000-SIP10
- SIP slots: 2
- SPA slots: 8
- ESP slots: 1
- Route processor slots: 1
- Redundancy: software (redundant Cisco IOS XE instances)
- Power: dual AC power supply configuration
- ESP10 power: 188 W maximum (140 W typical)
- ESP10 memory: 512-MB Cisco FP, 2-GB DRAM, 10-Mb TCAM, 128-MB packet buffer
- ESP10 minimum software: Cisco IOS XE 2.1
- Built-in Gigabit Ethernet ports: 0
- Height: 7 in. (177.8 mm)
- Width: 17.2 in. (437.4 mm)
- Depth: 18.15 in. (461.0 mm)
- Weight: 68.7 lb (31.16 kg) in a typical configuration with dual AC power supply, ESP10, RP1, two SIP10 and no SPAs
- Management: Telnet (CLI), console port, SNMP (RFC 2665)

FAQs

Q: Which software licence does this bundle use?
A: It is built around the K9 Advanced Enterprise Services (AESK9) consolidated Cisco IOS XE software package.

Q: How does redundancy work on the ASR 1004?
A: The ASR 1004 uses software redundancy, with redundant instances of Cisco IOS XE Software. The 1+1 ESP redundancy found on larger ASR 1000 chassis does not apply to this model.

Q: What interface cards does the chassis support?
A: It takes up to two SIPs (SIP10 or SIP40) and eight shared port adapters (SPAs), with either an RP1 or RP2 route processor.

Q: Can the ESP10 be upgraded later?
A: Yes. The ASR 1004 also accepts 20G and 40G Embedded Services Processors. The 40G ESP requires Cisco IOS XE 3.2.0S or later.

Q: How does this SKU differ from other ASR 1004 bundles?
A: This is the High Availability bundle with ESP10 10G, RP1, SIP10, AESK9 software and a dual AC power supply configuration.
