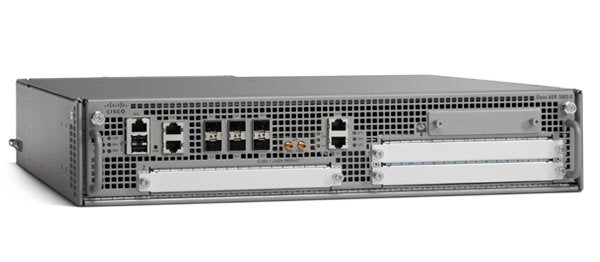

• Cisco ASR1002X-5G-K9 silver 2U edge router with black ports and mesh panel
1 1

Cisco

Cisco ASR1002X-5G-K9 | ASR 1002-X Router, 5G Throughput, K9 AES/IPsec

ASR1002X-5G-K9

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The ASR 1002-X is a 2RU WAN aggregation router from the Cisco ASR 1000 Series, built for branch and enterprise edge routing where encrypted VPN, zone-based firewall and QoS services are needed on one platform. The route processor, forwarding engine (ESP) and SIP are all integrated into the chassis.

This ASR1002X-5G-K9 bundle is the 5 Gbps throughput tier with K9 (AES/IPsec) crypto licensing. The chassis provides 6 built-in Gigabit Ethernet SFP ports and 3 SPA slots for modular WAN interface expansion. It has a quad-core route processor and 4 GB of DRAM shared across the route processor, ESP and SIP, and runs Cisco IOS XE with software redundancy. It supports Cisco Smart Licensing and Cisco DNA Advantage and DNA Premier subscriptions.

The ASR 1002-X takes up to 3 shared port adapters. Route processor, ESP and SIP cards are integrated, so no separate cards are used. There is no built-in 10 Gigabit Ethernet port on this model.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Common Cisco Flow Processor and Cisco IOS XE operating system shared across the ASR 1000 family
- Software redundancy via redundant instances of Cisco IOS XE without extra hardware modules
- Embedded Zone-Based Policy Firewall in the Flow Processor, with no extra service blades needed
- Integrated IPsec encryption support with K9 crypto licensing
- Supports Cisco Smart Licensing and Cisco DNA subscription licensing
- Three SPA slots for modular WAN interface expansion

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Model: Cisco ASR 1002-X
- Throughput tier: 5 Gbps
- Licence: K9 (AES/IPsec crypto)
- Rack units: 2RU
- Built-in Gigabit Ethernet ports: 6 x SFP
- Built-in 10 Gigabit Ethernet port: No
- Shared port adapter slots: 3
- Route processor: Integrated quad-core
- ESP and SIP: Integrated in chassis
- Default memory: 4 GB DRAM shared across route processor, ESP and SIP
- Redundancy: Software
- Operating system: Cisco IOS XE
- Height: 3.5 in. (88.9 mm)
- Width: 17.2 in. (437.4 mm)
- Depth: 18.15 in. (461.0 mm)
- Weight: 38.25 lb (17.36 kg) with dual AC power supply and SPA blank covers
- ISSU: Not supported

FAQs

Q: Does the ASR1002X-5G-K9 include crypto licensing?
A: Yes. The K9 designation covers AES/IPsec crypto at the 5 Gbps throughput tier.

Q: Does it support Cisco Smart Licensing or DNA subscriptions?
A: Yes. The ASR 1000 family supports Cisco Smart Licensing and Cisco DNA Advantage and DNA Premier subscriptions.

Q: Can I add separate route processor, ESP or SIP cards?
A: No. On the ASR 1002-X these are integrated in the chassis. Expansion is through the 3 SPA slots.

Q: Does it have a built-in 10 Gigabit Ethernet port?
A: No. The built-in connectivity is 6 Gigabit Ethernet SFP ports, plus the 3 SPA slots for expansion.

Q: Does it support ISSU?
A: No. ISSU is not supported on the ASR 1002-X, though software redundancy is provided through Cisco IOS XE.
