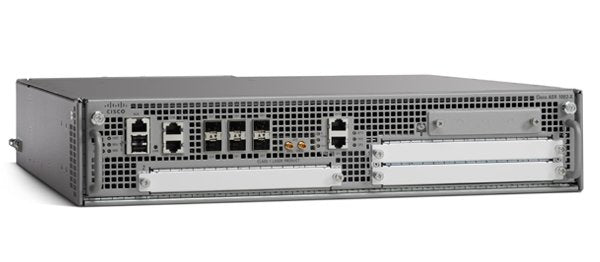

• Cisco ASR1002X-36G-SECK9 silver router with black ports and mesh panel
1 1

Cisco

Cisco ASR1002X-36G-SECK9 | ASR 1002-X Router, 6x SFP, 36G, Security SECK9

ASR1002X-36G-SECK9

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The ASR 1002-X is a compact 2RU aggregation services router from the Cisco ASR 1000 Series. It integrates the route processor, forwarding engine and SPA interface processor in a single chassis, which suits enterprise WAN and Internet edge, VPN and branch aggregation, and managed services deployments where rack space matters.

This SKU is the 36G performance bundle with the Security (SECK9) feature set. The chassis provides 6 built-in Gigabit Ethernet SFP ports and 3 SPA slots, with a quad core route processor and 4 GB of default DRAM shared across the route processor, forwarding engine and interface processor. Dual AC or DC power supplies and software redundancy with redundant IOS XE instances support high availability. The SECK9 designation denotes the security-enabled crypto feature set, covering IPsec encryption and the embedded Zone-Based Policy Firewall handled in the Flow Processor.

The built-in SFP ports accept SFP optics, and the SPA slots take shared port adapters to expand WAN and LAN connectivity.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Flow Processor-based platform with hardware acceleration of QoS, cryptography and ACLs
- Embedded Zone-Based Policy Firewall with no extra service blades required
- IPsec encryption handled in the Flow Processor without additional modules
- Redundant instances of Cisco IOS XE Software
- IOS XE sub-package mode for upgrading individual software components
- Throughput can be increased with upgrade licences on -X models
- Supports Cisco Smart Licensing

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Chassis: 2RU, integrated route processor, ESP and SIP
- Route processor: Quad core, integrated in chassis
- Built-in ports: 6 x Gigabit Ethernet SFP
- Built-in 10 Gigabit Ethernet port: No
- SPA slots: 3
- Default memory: 4 GB DRAM shared across route processor, ESP and SIP
- Redundancy: Software redundancy
- Power supplies: Dual AC or DC
- Performance tier: 36G bundle
- Feature set: Security (SECK9)
- Height: 3.5 in. (88.9 mm)
- Width: 17.2 in. (437.4 mm)
- Depth: 18.15 in. (461.0 mm)
- Weight: 38.25 lb (17.36 kg) with dual AC power supply and SPA blank covers
- Weight: 39.05 lb (17.72 kg) with dual DC power supply and blank covers
- ISSU: Not supported

FAQs

Q: What does SECK9 mean in this SKU?
A: SECK9 denotes the security-enabled, K9 crypto IOS XE feature set bundled with this SKU, which covers IPsec encryption and the embedded firewall functions.

Q: Can this router's throughput be increased later?
A: Yes. On ASR 1002-X models, throughput can be increased with upgrade licences. This SKU is the 36G performance bundle.

Q: What can I connect to the built-in ports and SPA slots?
A: The 6 built-in Gigabit Ethernet ports are SFP-based and accept SFP optics. The 3 SPA slots accept shared port adapters to add further WAN and LAN interfaces.

Q: What power options does the ASR 1002-X support?
A: The chassis supports dual AC or dual DC power supplies, giving power redundancy for edge and aggregation deployments.

Q: Does the ASR 1002-X support ISSU?
A: No. In-service software upgrade is not supported on the ASR 1002-X. It does provide software redundancy with redundant IOS XE instances.
