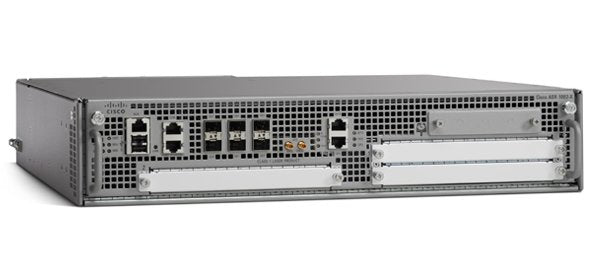

• Cisco ASR1002X-20G-HA-K9 silver router with black ports and mesh panel
1 1

Cisco

Cisco ASR1002X-20G-HA-K9 | ASR 1000 Router, 20G, HA Bundle, K9, AES Licence

ASR1002X-20G-HA-K9

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The ASR 1002-X is a 2RU aggregation services router from the Cisco ASR 1000 Series, built for WAN aggregation and edge routing in enterprise and service provider networks. It integrates the route processor, embedded services processor and SPA interface processor in a single chassis, and suits branch and Internet edge deployments as well as secure VPN and encrypted WAN designs.

This HA bundle SKU is licensed for 20 Gbps of system bandwidth with the AES technology package, with software redundancy for resilient operation. The chassis provides 6 built-in Gigabit Ethernet SFP ports and 3 half-height SPA slots, with 4 Gbps of hardware-based crypto bandwidth. It ships with 4 GB of DRAM shared across the route processor, ESP and SIP, and uses dual 1+1 redundant AC or DC power supplies. Forwarding bandwidth scales from 5 Gbps up to 36 Gbps through software licensing, so capacity can grow without replacing the hardware.

The 3 SPA slots accept Cisco ASR 1000 Series shared port adapters, each up to 10 Gbps, and the 6 built-in ports take SFP optics. The router runs Cisco IOS XE.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Integrated route processor, embedded services processor and SIP in a 2RU chassis
- Pay-as-you-grow performance, scaling from 5 Gbps by software licence rather than new hardware
- Hardware-based encryption with 4 Gbps of crypto bandwidth
- Software redundancy with redundant instances of Cisco IOS XE Software
- 1+1 redundant AC or DC power supplies
- Stratum 3 network clocking with BITS interface
- Reuses Cisco shared port adapters across the ASR 1000 platform
- Supports Cisco SD-WAN with IOS XE

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Model: Cisco ASR 1002-X
- Licensed system bandwidth: 20 Gbps (scales 5, 10, 20 or 36 Gbps by licence)
- Built-in ports: 6 x Gigabit Ethernet SFP
- Built-in 10 Gigabit Ethernet ports: None
- Shared port adapter slots: 3 SPA slots
- Route processor: Integrated, quad-core processor
- Embedded services processor and SIP: Integrated in chassis
- Default memory: 4 GB DRAM shared across RP, ESP and SIP
- Cryptography bandwidth: 4 Gbps hardware-based encryption
- Storage: 8 GB eUSB bulk storage, 2 x USB ports
- Redundancy: Software redundancy
- Power supplies: 1+1 redundant AC or DC
- Timing: Stratum 3 clocking with T1/E1 BITS interface
- Height: 3.5 in. (88.9 mm), 2RU
- Width: 17.2 in. (437.4 mm)
- Depth: 18.15 in. (461.0 mm) chassis edge-to-edge
- Mounting: 19-inch rack mount (EIA RS-310)
- Weight: 38.25 lb (17.36 kg) with dual AC power supply and SPA blank covers
- Software: Cisco IOS XE

FAQs

Q: What does the HA bundle licence cover on this SKU?
A: This SKU is the 20G HA bundle with K9 and the AES technology package, licensed for 20 Gbps of system bandwidth. It is intended for deployments that need software redundancy alongside the AES feature set.

Q: Can the system bandwidth be increased later?
A: Yes. The ASR 1002-X scales forwarding bandwidth through software licensing in 5, 10, 20 and 36 Gbps steps, so higher throughput does not require new hardware.

Q: What interfaces can I add to this router?
A: The chassis has 3 half-height SPA slots that accept Cisco ASR 1000 Series shared port adapters, plus 6 built-in Gigabit Ethernet SFP ports. It has no built-in 10 Gigabit Ethernet ports.

Q: How is the router powered?
A: It uses dual 1+1 redundant power supplies, available in AC or DC versions, so the router keeps running if one supply fails.

Q: Does it support In-Service Software Upgrade (ISSU)?
A: No. The ASR 1002-X provides software redundancy with redundant IOS XE instances, but ISSU is not supported on this model.
