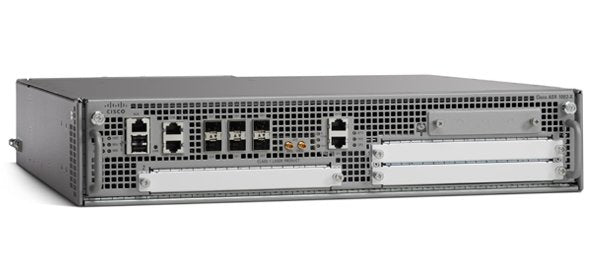

• Cisco ASR1002X-10G-K9 silver router with black ports and mesh panel
1 1

Cisco

Cisco ASR1002X-10G-K9 | ASR 1002-X Router, 10G Throughput, K9, AES Licence

ASR1002X-10G-K9

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The ASR 1002-X is a fixed-configuration, 2RU WAN aggregation router from the Cisco ASR 1000 family. It suits enterprise WAN edge and multiservice IPsec VPN headend roles, as well as managed CPE and service provider edge or aggregation deployments. The route processor, ESP and SIP are integrated in the chassis, and the router runs Cisco IOS XE.

This SKU is the K9 bundle with the 10 Gbps performance licence and the AES technology package. System throughput is 10 Gbps, stepped up from the 5 Gbps default through the FLSA1-2X-5-10G performance upgrade licence. Connectivity is provided by 6 built-in Gigabit Ethernet SFP ports and 3 SPA slots, and the router uses a quad-core route processor with 4 GB of DRAM shared across the route processor, ESP and SIP. The bundle covers the Universal IOS XE image and the FLASR1-AES technology package licence only. IPS and firewall feature licences are not part of this bundle.

The 3 SPA slots accept shared port adapters, and the 6 built-in ports need Gigabit Ethernet SFP optics. DRAM is upgradable, and higher performance tiers are available through licence upgrades.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Integrated route processor, ESP and SIP in a single 2RU chassis
- Runs Cisco IOS XE, with redundant instances giving software redundancy
- Performance upgradable through software licences with no extra hardware (5G default, 10G, 20G, 36G)
- 3 SPA slots plus 6 built-in GE SFP ports for flexible WAN connectivity
- Same feature set across the ASR 1000 family, based on the Cisco Flow Processor and IOS XE
- Positioned for WAN edge, IPsec VPN aggregation and managed CPE deployments
- Supports Cisco Smart Licensing and Cisco DNA Advantage and Premier licensing for the ASR 1000 series

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Model: Cisco ASR 1002-X
- System throughput: 10 Gbps (5G to 10G performance upgrade licence)
- Built-in ports: 6 x Gigabit Ethernet SFP
- Built-in 10 Gigabit Ethernet port: No
- SPA slots: 3 (no SPAs included)
- Route processor: Integrated, quad-core
- ESP and SIP: Integrated in chassis
- Default memory: 4 GB DRAM shared across route processor, ESP and SIP
- Redundancy: Software
- Software: Cisco IOS XE Universal image (SASR1K2XUK9-XYS)
- Technology package licence: FLASR1-AES
- Performance upgrade licence: FLSA1-2X-5-10G (5 Gbps to 10 Gbps)
- Form factor: 2RU rack-mount
- Height: 3.5 in. (88.9 mm)
- Width: 17.2 in. (437.4 mm)
- Depth: 18.15 in. (461.0 mm)
- Weight: 38.25 lb (17.36 kg) with dual AC power supply and SPA blank covers

FAQs

Q: Which licences are included with this SKU?
A: This bundle covers the Universal IOS XE image (SASR1K2XUK9-XYS), the FLASR1-AES technology package licence and the FLSA1-2X-5-10G performance upgrade licence from 5 Gbps to 10 Gbps. IPS and firewall feature licences are not included.

Q: Can the throughput go beyond 10 Gbps?
A: Yes. The ASR 1002-X performance is upgraded through software licences with no extra hardware, with tiers of 5G, 10G, 20G and 36G available.

Q: What optics do the built-in ports use?
A: The 6 built-in ports are Gigabit Ethernet SFP ports, so they need GE SFP optics. The router has no built-in 10 Gigabit Ethernet port.

Q: Can I add more interfaces?
A: Yes. The 3 SPA slots accept shared port adapters for additional WAN and Ethernet connectivity.

Q: Is the memory upgradable?
A: Yes. The router ships with 4 GB of DRAM shared across the route processor, ESP and SIP, and DRAM can be upgraded.

Q: How does this differ from the other ASR 1002-X bundles?
A: This is the K9 bundle with the AES technology package and the 10G performance licence. The VPNK9, SECK9 and SHAK9 bundles add IPS and firewall feature licences that are not part of this SKU.
