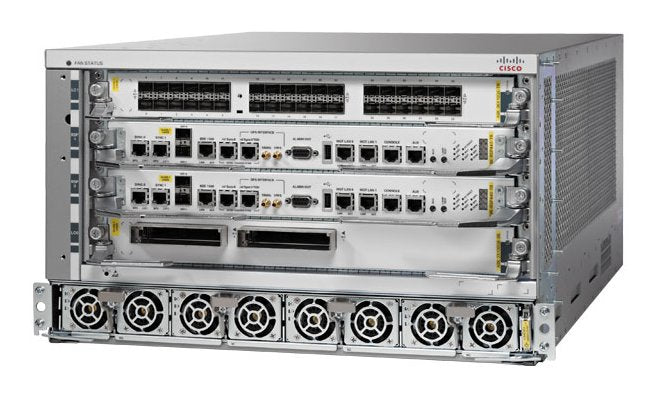

• Cisco ASR-9904 modular core router chassis with 2 line-card slots
1 1

Cisco

Cisco ASR-9904 | ASR 9904 Router Chassis, 2 Line Card Slots, 6 RU

ASR-9904

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The ASR 9904 is a modular 6RU carrier-class router chassis from the Cisco ASR 9000 Series. It is built for service-provider and enterprise edge and core routing, carrier Ethernet aggregation and high-density 10/40/100GE transport where a compact chassis with strong per-slot bandwidth is needed.

This base SKU is the 2 line card slot chassis. It provides two redundant Route Switch Processors with integrated fabric, up to 4 Tbps of bandwidth per slot and 16 Tbps maximum system capacity. Cooling comes from a single fan tray with 12 variable-speed fans, and the chassis runs Cisco IOS XR. Power modules are ordered separately in either 3 kW AC (200-240V) or 2.1 kW DC (-40 to -72V) form, and AC and DC modules cannot be mixed. AC variants use N+N redundancy and DC variants use N+1. Software functionality is enabled through line card options and feature licences. SD-WAN and LTE do not apply to this platform.

The chassis accepts ASR 9000 RSPs shared with the 9006, 9010, 9906 and 9910, and ASR 9000 line cards including the 4-port, 8-port and 32-port 100GE cards and the fifth-generation multi-rate cards. It uses the A9K-9904-FAN fan tray and ASR-9904-FILTER fan filter, and mounts in 19-inch racks with 21- and 23-inch adapters available.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Fully distributed forwarding, with all packet-forwarding decisions made on the line cards
- H-QoS, security and PTP/SyncE timing support
- Redundant RSPs, fabric, fans and power supplies
- Modular pay-as-you-grow AC or DC power with fully load-sharing power and no power-zone restrictions
- RSPs shared across the ASR 9904, 9906, 9910, 9006 and 9010 chassis
- Support for 100GE line cards including 4-port, 8-port and 32-port cards
- Runs Cisco IOS XR, with the 64-bit IOS XR version available for this chassis

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Model: Cisco ASR 9904
- Line card slots: 2
- Route Switch Processors: 2 redundant RSPs with integrated fabric
- Bandwidth per slot: 4 Tbps
- Maximum system capacity: 16 Tbps
- Height: 10.38 in. (263.65 mm), 6 RU
- Width: 17.57 in. (446.28 mm)
- Depth: 25.02 in. (635.51 mm)
- Weight: 62 lb (28.2 kg) chassis with V2 PEM
- Slot orientation: Horizontal
- Cooling: 1 fan tray with 12 variable-speed fans
- Airflow: Right-to-left, front-to-back with baffle
- Power modules: 3 kW AC or 2.1 kW DC (AC and DC cannot be mixed)
- Power redundancy: AC N+N, DC N+1, A/B feed redundancy
- AC input: 200-240V, 50-60 Hz, 16A max
- DC input: -40 to -72V, 50A nominal, 60A max
- Rack mounting: 19-in., with 21- and 23-in. adapters available
- Operating temperature (nominal): 5 to 40 C
- Operating temperature (short-term): -5 to 55 C
- Storage temperature: -40 to 70 C
- Operating humidity: 5 to 90% RH
- Operating system: Cisco IOS XR

FAQs

Q: Does the ASR-9904 need a software licence?
A: The chassis itself is ordered without a licence of its own. Software functionality is enabled through line card options and feature licences, so check the licence SKUs for the features you need.

Q: What power does this chassis use?
A: Power modules are ordered separately. Choose a 3 kW AC module (200-240V, 16A max) or a 2.1 kW DC module (-40 to -72V, 60A max). AC and DC modules cannot be mixed in one chassis.

Q: Which line cards and RSPs does it work with?
A: It takes ASR 9000 RSPs, shared with the 9006, 9010, 9906 and 9910, and ASR 9000 line cards including the 4-port, 8-port and 32-port 100GE cards and the fifth-generation multi-rate cards.

Q: How does the base ASR-9904 differ from the AC and DC variants?
A: The base ASR-9904 is the chassis only. ASR-9904-AC and ASR-9904-DC are separate SKUs defined by their power type.

Q: Which fan tray and filter does the ASR 9904 use?
A: It uses the ASR-9904-FAN (A9K-9904-FAN) fan tray, which has 12 variable-speed fans, and the ASR-9904-FILTER fan filter.
