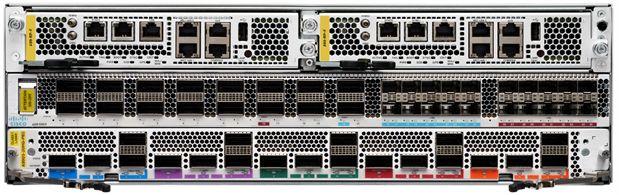

• Cisco ASR-9903 modular router chassis with gigabit Ethernet ports
1 1

Cisco

Cisco ASR-9903 | ASR 9903 Router Chassis, 3.6 Tbps, Traditional Model

ASR-9903

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The ASR 9903 is a compact 3RU modular router chassis in the Cisco ASR 9000 Series, built for service-provider and enterprise-edge roles. It suits business PE, metro aggregation, cloud edge, Internet peering, Data Center Interconnect and mobile edge for 4G/5G networks, as well as enterprise border or peering at the edge of the network.

The chassis delivers up to 3.6 Tbps of nonblocking full-duplex capacity. The integrated fixed board provides 16 QSFP28 ports (10/40/100GE) and 20 SFP+ ports (10GE) with up to 1.6 Tbps of bandwidth, and an optional Port Expansion Card slot takes the A9903-20HG-PEC (2T) or A9903-8HG-PEC (800G). The design is fully redundant, with 2 route processors, 2 integrated switch fabrics, 4 hot-swappable 1.6 kW power module slots and 4 fan modules. Airflow is front to back, and depth is 600 mm excluding the ejector. This is the chassis-only part number under the Traditional Business Model, while the Flexible Consumption variant is ASR-9903-FC.

The chassis runs Cisco IOS XR, supported from release 7.1.25. Route processors, port expansion cards, power modules, fan tray and rack kit are ordered separately, and transceivers that apply to the ASR 9903 can be used across all ASR 9000 modular chassis.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Multi-rate port support: 400GE, 200GE, 100GE, 40GE, 25GE and 10GE on the same chassis
- Runs the same Cisco IOS XR 64-bit software image as the rest of the ASR 9000 Series
- Hardware-based IEEE 1588, SyncE, GPS and BITS interfaces with PTP Telecom profiles G.8265.1, G.8275.1 and G.8275.2
- Carrier-class OAM including NetFlow, IEEE 802.1ag, 802.3ah, ITU Y.1731, IP SLA and VCCV
- Fully redundant design with 2 route processors, 2 switch fabrics, 4 power modules and 4 fans
- QSFP-DD ports on the 2T expansion card allow individual migration to 400GE via licence
- Compact depth and front-to-back airflow suit mobile edge (4G/5G) deployments

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Form factor: 3RU compact modular chassis, 19-inch rack mount
- Capacity: up to 3.6 Tbps nonblocking full-duplex
- Integrated ports: 16 x QSFP28 (10/40/100GE) and 20 x SFP+ (10GE)
- Integrated port modes: 16x100GE, or 15x100GE + 10x10GE, or 14x100GE + 20x10GE
- Fixed board bandwidth: 1.6 Tbps maximum
- Port Expansion Card slot: A9903-20HG-PEC (2T) or A9903-8HG-PEC (800G)
- Route processors: 2 redundant, 64-bit Intel CPU, 32 GB DDR4 default
- Switch fabrics: 2 integrated
- Power module slots: 4 hot-swappable, 1.6 kW AC or DC
- Power redundancy (DC): 2+2
- Power redundancy (AC): 2+2 at 200-240V, 3+1 at 90-130V
- Fan modules: 4, redundant
- Airflow: front to back
- Dimensions (H x W x D) incl. ejector, fully populated: 131.57 x 443.86 x 762 mm
- Depth excluding ejector: 600 mm
- Weight (fully populated): 37 kg
- Operating temperature: 5 to 40 C
- Operating humidity: 10 to 85%
- Storage temperature: -40 to 70 C
- Operating altitude: -60 to 1800 m
- Management interfaces: console, auxiliary, 2 x management Ethernet, USB, GPS (10MHz, 1PPS, ToD), 2 x BITS
- Software: Cisco IOS XR, supported from release 7.1.25
- Standards: IEEE 802.3ae, IEEE 802.3ba, IEEE 802.x flow control
- EMC: FCC Class A, ICES 003 Class A, AS/NZS 3548 Class A, CISPR 22 Class A, VCCI Class A, BSMI Class A

FAQs

Q: What power modules does the ASR 9903 use?
A: It accepts up to 4 x PWR-1.6KW-AC or PWR-1.6KW-DC modules, each rated at 1.6 kW. AC and DC modules cannot be mixed in the same chassis.

Q: What power redundancy is available?
A: DC supports 2+2 redundancy. AC supports 2+2 at 200-240V and 3+1 at 90-130V.

Q: What is the difference between ASR-9903 and ASR-9903-FC?
A: ASR-9903 is the chassis-only part number under the Traditional Business Model. ASR-9903-FC is the Flexible Consumption variant, which uses a different licensing approach.

Q: Which software release does it need?
A: The chassis runs Cisco IOS XR and requires release 7.1.25 or later.

Q: Which components are ordered separately for a working system?
A: Route processor A99-RP-F, port expansion cards A9903-20HG-PEC or A9903-8HG-PEC, PWR-1.6KW-AC or DC power modules, the ASR-9903-FAN fan tray, the ASR-9903-4P-KIT rack kit, ASR-9903-CAB-MGMT cable management and the ASR-9903-FILTER air filter.

Q: Can this chassis be upgraded to 400GE?
A: Yes. The QSFP-DD ports on the A9903-20HG-PEC 2T expansion card can be migrated individually to 400GE using the S-A9K-400G-F-ENBL licence.
