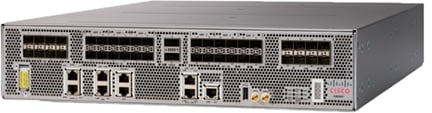

• Cisco ASR-9901-FC black 2RU router with ports and expansion slots
1 1

Cisco

Cisco ASR-9901-FC | ASR 9901 Router, 2RU, Flexible Consumption 100G of 456G

ASR-9901-FC

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The ASR 9901 is a compact Provider Edge router from the Cisco ASR 9000 Series, built in a 2RU chassis with an integrated route switch processor. It is aimed at large-scale aggregation, Data Center Interconnect, Satellite nV System mode, Layer 2 and Layer 3 VPN services, mobile backhaul transport and Broadband Network Gateway deployments.

The chassis provides 456 Gbps of nonblocking full-duplex fabric capacity and 42 integrated ports: 16 x 1GE, 24 x 1/10GE dual-rate and 2 x 100GE. The integrated RSP has a 4-core 2.4 GHz Intel CPU and 32 GB of RAM. This SKU is sold under the Cisco IOS XR Flexible Consumption Model, with 100G out of 456G capacity included in the base bundle. Software is licensed per 100G through Edge Essentials or Edge Advantage RTU licences with matching SIA subscriptions. Timing support includes GPS input for Stratum-1 clocking, BITS and SSU/DTI ports, and hardware-based IEEE 1588.

The router runs Cisco IOS XR 64-bit and uses A9K-1600W-AC or A9K-1600W-DC power supplies with redundant fan trays. Companion parts include the ASR-9901-FAN fan tray and the ASR-9901-2P-KIT and ASR-9901-4P-KIT mounting kits for 19 and 23 inch racks.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Designed for 1/10/40/100 Gigabit densities in a 2RU form factor, with built-in scalability
- Pluggable interfaces allow 1, 10, 40 and 100 Gigabit Ethernet types to be mixed across the chassis
- Distributed forwarding plane architecture, so ports forward independently
- Hardware-based IEEE 1588 support for timing services over the packet network
- Two independent clock source connections, BITS and SSU with DTI, for redundant synchronisation
- GPS input for optional Stratum-1 clocking
- Cisco IOS XR 64-bit software with Segment Routing, EVPN, programmability and telemetry
- Supports L2VPN, L3VPN, MPLS TE-FRR, MC-LAG, HQoS, SyncE, EOAM, NSF/NSR and Satellite nV mode
- MACsec encryption on all port speeds
- Embedded USB (eUSB) port for software image loading and upgrades

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Chassis: ASR 9901, 2RU compact
- Fabric capacity: 456 Gbps nonblocking, full-duplex
- Integrated interfaces: 16 x 1GE, 24 x 1/10GE, 2 x 100GE
- Processor: integrated RSP, 4 cores, 2.4 GHz Intel CPU
- Memory: 32 GB RAM
- Licensing model: Flexible Consumption Model, 100G out of 456G
- Redundancy: power supply and fan redundancy
- Power supply part numbers: A9K-1600W-AC, A9K-1600W-DC
- Power inputs: 90-265V AC, 50-60 Hz or -40V to -72V DC
- Power consumption: 850 W typical, 1100 W maximum
- Height: 3.43 in (8.7 cm)
- Width: 17.32 in (44 cm)
- Depth: 23.62 in (60 cm)
- Weight of chassis: 21.6 kg (47.62 lbs)
- Weight fully configured: 25.4 kg (55.97 lbs) with 2 power modules and 3 fan trays
- Operating temperature (nominal): 5 to 40 C
- Operating temperature (short-term): -5 to 55 C
- Operating humidity (nominal): 10 to 85% relative humidity
- Storage temperature: -40 to 70 C
- Operating altitude: 0 to 4000 m
- Air flow: front to back
- NEBS: designed to meet SR-3580 Level 3, GR-1089-CORE, GR-63-CORE, VZ.TPR.9205
- EMC: FCC Class A, ICES 003 Class A, AS/NZS 3548 Class A, CISPR 22 (EN55022) Class A, VCCI Class A, BSMI Class A

FAQs

Q: How is the ASR-9901-FC licensed?
A: It is ordered under the Cisco IOS XR Flexible Consumption Model, with 100G out of 456G capacity included in the base bundle. Software is licensed per 100G through Edge Essentials, Edge Advantage w/o Essentials or Edge Advantage w/ Essentials RTU licences, with matching SIA subscriptions.

Q: Which power supplies does the ASR 9901 use?
A: It uses A9K-1600W-AC or A9K-1600W-DC power supplies. AC input is 90-265V at 50-60 Hz and DC input is -40V to -72V. Power draw is 850 W typical and 1100 W maximum.

Q: Which companion parts are available for the ASR 9901 chassis?
A: The ASR-9901-FAN fan tray, the ASR-9901-2P-KIT and ASR-9901-4P-KIT mounting kits for 19 and 23 inch racks, and the A9K-1600W-AC and A9K-1600W-DC power supplies.

Q: Which optics does the ASR 9901 support?
A: Supported pluggable optics are listed in the Cisco Optics Compatibility Matrix at tmgmatrix.cisco.com. The chassis takes 1, 10, 40 and 100 Gigabit Ethernet pluggables.

Q: What software does it run?
A: It runs Cisco IOS XR 64-bit, with support for Segment Routing, EVPN, L2VPN, L3VPN, MPLS TE-FRR and Satellite nV mode.
