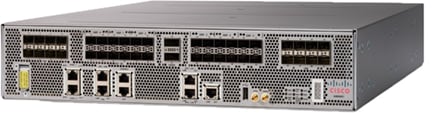

• Cisco ASR-9901 2RU router chassis with ports and expansion slots
1 1

Cisco

Cisco ASR-9901 | ASR 9901 2RU Router, 456G Fabric, 42-Port 1/10/100GE

ASR-9901

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The ASR 9901 is a compact 2RU provider-edge router in the Cisco ASR 9000 family, built for carrier Ethernet networks. It suits large-scale aggregation, Data Center Interconnect, Layer 2 and Layer 3 VPN services, mobile backhaul transport, Broadband Network Gateway and Satellite nV System host deployments, and it runs the same Cisco IOS XR software image as the rest of the ASR 9000 Series.

This SKU is the base ASR 9901 chassis under the Traditional Business Model. It provides 456 Gbps of non-blocking, full-duplex fabric capacity and 42 integrated ports: 16 x 1GE, 24 x 1/10GE dual-rate and 2 x 100GE. The integrated route switch processor has a 4-core 2.4 GHz Intel CPU and 32 GB of RAM, and MACsec encryption is supported at all port speeds. Timing options include GPS input for Stratum-1 clocking, BITS and SSU/DTI ports, and hardware-based IEEE 1588 support. Power consumption is 850 W typical and 1100 W maximum, with front-to-back airflow.

Power supplies, fan trays and mounting kits are ordered separately. Redundant 1600W AC (A9K-1600W-AC) or DC (A9K-1600W-DC) supplies and the ASR-9901-FAN fan trays provide power and cooling redundancy, and the ASR-9901-2P-KIT and ASR-9901-4P-KIT mounting kits cover 19 and 23 inch racks.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Same Cisco IOS XR software image as the rest of the ASR 9000 Series
- Segment Routing, EVPN, programmability and telemetry support
- L2VPN, L3VPN, multicast, SyncE, Ethernet OAM, MPLS OAM, HQoS, MPLS TE-FRR, MC-LAG and NSF/NSR
- Satellite nV System mode and Data Center Interconnect (DCI) support
- MACsec encryption on all port speeds
- Distributed forwarding plane architecture
- Hardware-based IEEE 1588 timing with GPS Stratum-1, BITS and SSU/DTI clock inputs
- Embedded USB port for software image loading, plus console and management ports

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Form factor: 2RU compact provider-edge router chassis
- Fabric capacity: 456 Gbps non-blocking, full-duplex
- Integrated interfaces: 16 x 1GE, 24 x 1/10GE, 2 x 100GE
- Processor: Integrated RSP, 4 cores, 2.4 GHz Intel CPU
- Memory: 32 GB RAM
- Operating system: Cisco IOS XR 64-bit
- Redundancy: Power supply and fan redundancy
- Power supply part numbers: A9K-1600W-AC, A9K-1600W-DC
- Fan tray: ASR-9901-FAN (3 fan trays)
- Power input: AC 90-265V, 50-60 Hz; DC -40V to -72V
- Power consumption: 850 W typical, 1100 W maximum
- Airflow: Front to back
- Height: 3.43 in (8.7 cm)
- Width: 17.32 in (44 cm)
- Depth: 23.62 in (60 cm)
- Weight of chassis: 47.62 lbs (21.6 kg)
- Weight fully configured (2 x power modules, 3 x fan trays): 55.97 lbs (25.4 kg)
- Operating temperature (nominal): 5 to 40 C
- Operating temperature (short-term): -5 to 55 C
- Operating humidity (nominal): 10 to 85% RH
- Storage temperature: -40 to 70 C
- Operating altitude: 0 to 4000 m
- NEBS: Designed to meet SR-3580 Level 3, GR-1089-CORE, GR-63-CORE
- EMC: Designed to meet FCC Class A, AS/NZS 3548 Class A, CISPR 22 (EN55022) Class A

FAQs

Q: Which licence tier does the base ASR-9901 include?
A: The ASR-9901 chassis is the Traditional Business Model PID, with optional Smart Licences such as I-VRF, L3VPN, Lawful Intercept, BNG, Advanced Mobile and nV Host. Edge Essentials and Edge Advantage licences apply to the Flexible Consumption Model SKU, ASR-9901-FC.

Q: What power supplies does the ASR 9901 use?
A: It uses redundant 1600W AC (A9K-1600W-AC) or 1600W DC (A9K-1600W-DC) power supplies. AC input is 90-265V and DC input is -40V to -72V. Typical draw is 850 W and maximum draw is 1100 W.

Q: How does this SKU differ from the ASR-9901-120G, ASR-9901-256G and ASR-9901-FC?
A: This is the base ASR 9901 chassis under the Traditional Business Model. The ASR-9901-120G and ASR-9901-256G are pay-as-you-grow variants with upgrade licences, and the ASR-9901-FC is orderable under the Flexible Consumption Model.

Q: Which accessories are needed to install the ASR 9901?
A: Power supplies (A9K-1600W-AC or A9K-1600W-DC), fan trays (ASR-9901-FAN) and a mounting kit (ASR-9901-2P-KIT or ASR-9901-4P-KIT) are ordered separately. The mounting kits suit 19 and 23 inch racks.

Q: Which optics does the ASR 9901 support?
A: It takes pluggable 1/10/40/100GE optics across its integrated ports. Check the Cisco Optics Compatibility Matrix for the exact supported modules.
