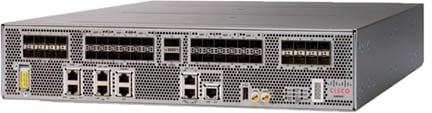

• Cisco ASR-9901-256G carrier-edge router with 48x10G SFP+ and 6x100G QSFP28 ports
1 1

Cisco

Cisco ASR-9901-256G | ASR 9000 ASR 9901 Router, 256G Pay-As-You-Grow

ASR-9901-256G

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The ASR 9901 is a compact 2RU provider-edge router in the Cisco ASR 9000 Series, built for large-scale aggregation, Data Center Interconnect, Layer 2 and Layer 3 VPN services, mobile backhaul transport, Broadband Network Gateway and Satellite nV host roles in carrier Ethernet networks. It runs Cisco IOS XR 64-bit on an integrated route switch processor.

This ASR-9901-256G is the Pay-As-You-Grow 256G base hardware PID. It provides 42 integrated ports: 16 x 1GE, 24 x dual-rate 1/10GE and 2 x 100GE. The integrated RSP has a 4-core 2.4 GHz Intel CPU and 32 GB RAM. Fabric capacity scales up to 456 Gbps non-blocking full-duplex through upgrade licences A9K9901-UP120-256G (120G to 256G) and A9K9901-UP256-456G (256G to 456G). Timing support includes GPS input for Stratum-1 clocking, BITS and SSU/DTI ports, with MACsec encryption on all port speeds.

It uses redundant A9K-1600W-AC or A9K-1600W-DC power supplies and draws 850 W typical, 1100 W maximum. Pluggable optics follow the Cisco Optics Compatibility Matrix, and the ASR-9901-FAN fan tray and ASR-9901-2P-KIT and ASR-9901-4P-KIT rack mounting kits are available for the chassis.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Scalable fabric supporting 1/10/40/100 Gigabit densities in 2RU
- Pluggable interfaces to mix and match 1, 10, 40 and 100GE optics
- Distributed forwarding plane architecture
- Hardware-based IEEE 1588 timing support
- Two independent clock source connections: BITS and SSU with DTI
- GPS option for Stratum-1 clocking
- Segment Routing, EVPN, L2VPN/L3VPN, SyncE, HQoS, MPLS TE-FRR, MC-LAG and NSF/NSR
- Satellite nV System mode, programmability and telemetry
- MACsec encryption on all port speeds
- Embedded USB (eUSB) port for software image loading

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Chassis: ASR 9901
- Form factor: 2RU compact provider-edge router
- Integrated interfaces: 16 x 1GE, 24 x 1/10GE, 2 x 100GE
- Fabric capacity: up to 456 Gbps non-blocking full-duplex
- Processor: integrated RSP, 4 cores, 2.4 GHz Intel CPU
- Memory: 32 GB RAM
- Operating system: Cisco IOS XR 64-bit
- Redundancy: power supply and fan redundancy
- Power supply part numbers: A9K-1600W-AC, A9K-1600W-DC
- Power input: AC 90-265V, 50-60 Hz; DC -40V to -72V
- Power consumption: 850 W typical, 1100 W maximum
- Height: 8.7 cm (3.43 in)
- Width: 44 cm (17.32 in)
- Depth: 60 cm (23.62 in)
- Chassis weight: 21.6 kg (47.62 lbs)
- Weight fully configured: 25.4 kg (55.97 lbs)
- Operating temperature (nominal): 5 to 40 C
- Operating temperature (short-term): -5 to 55 C
- Operating humidity (nominal): 10 to 85% RH
- Storage temperature: -40 to 70 C
- Operating altitude: 0 to 4000 m
- Air flow: front to back
- NEBS: designed to meet SR-3580 Level 3, GR-1089-CORE, GR-63-CORE, VZ.TPR.9205
- EMC: FCC Class A, ICES 003 Class A, AS/NZS 3548 Class A, CISPR 22 Class A, VCCI Class A, BSMI Class A

FAQs

Q: How does this SKU differ from other ASR 9901 SKUs?
A: The ASR-9901-256G is the Pay-As-You-Grow base hardware PID with 256G of fabric capacity. Capacity can be raised later with upgrade licences rather than by replacing the chassis.

Q: How do I scale this router beyond 256G?
A: Fabric capacity grows up to 456 Gbps using the A9K9901-UP256-456G licence. The A9K9901-UP120-256G licence covers the step from 120G to 256G.

Q: What power supplies does the ASR 9901 use?
A: It uses A9K-1600W-AC or A9K-1600W-DC power supplies in a redundant arrangement. AC input is 90-265V at 50-60 Hz and DC input is -40V to -72V. Typical draw is 850 W with a maximum of 1100 W.

Q: Which optics and mounting accessories work with it?
A: Pluggable 1, 10, 40 and 100GE optics are supported per the Cisco Optics Compatibility Matrix. The chassis works with the ASR-9901-FAN fan tray and the ASR-9901-2P-KIT and ASR-9901-4P-KIT rack mounting kits for 19 and 23 inch racks.

Q: Which optional licences are available?
A: Optional Smart Licences include L3 VPN (S-A9K-9901-256AIP), I-VRF (S-A9K-9901-VRF-LC), Lawful Intercept, Advanced Mobile, Tunnel Protocols, BNG and nV Host.
