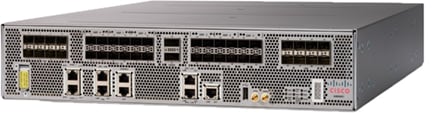

• Cisco ASR-9901-120G carrier-edge router with 48x1/10G SFP+ and 6x100G QSFP28 ports
1 1

Cisco

Cisco ASR-9901-120G | ASR 9901 2RU Router, 42 Ports, PayG 120G Base

ASR-9901-120G

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The ASR 9901 is a compact 2RU provider edge router from the ASR 9000 Series, built around an integrated route switch processor and 42 integrated ports. It runs the 64-bit Cisco IOS XR operating system and suits Provider Edge aggregation, Data Center Interconnect, Layer 2 and Layer 3 VPN business services, mobile backhaul transport, Broadband Network Gateway deployments and Satellite nV System host roles.

This SKU is the Pay-As-You-Grow 120G base hardware chassis. Integrated interfaces are 16 x 1GE, 24 x 1/10GE dual-rate and 2 x 100GE, backed by a 4-core 2.4 GHz Intel CPU and 32 GB RAM. The platform provides 456 Gbps of nonblocking full-duplex fabric capacity at its maximum, with this base SKU starting at 120G. Power draw is 850 W typical and 1100 W maximum, with power supply and fan redundancy. Timing includes GPS input for Stratum-1 clocking, BITS and SSU/DTI clock ports and IEEE 1588 hardware support.

Capacity grows by licence, from 120G to 256G with A9K9901-UP120-256G and then to 456G with A9K9901-UP256-456G. It works with A9K-1600W-AC and A9K-1600W-DC power supplies, the ASR-9901-FAN fan tray and ASR-9901-2P-KIT or ASR-9901-4P-KIT mounting kits.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Pay-as-you-grow capacity upgrades by licence, from 120G to 256G to 456G
- Runs the same Cisco IOS XR 64-bit image as the rest of the ASR 9000 Series
- Supports Segment Routing, EVPN, L2VPN, L3VPN, MPLS TE-FRR, HQoS, MC-LAG and NSF/NSR
- MACsec encryption on all port speeds
- Satellite nV System mode support
- Hardware IEEE 1588 and SyncE timing with redundant BITS and SSU/DTI clock sources and GPS for Stratum-1
- Distributed forwarding plane architecture
- Embedded USB (eUSB) port for software image loading

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Chassis: ASR 9901, 2RU
- Integrated interfaces: 16 x 1GE, 24 x 1/10GE, 2 x 100GE
- Fabric capacity: 456 Gbps nonblocking, full-duplex (platform)
- Processor: Integrated RSP, 4-core 2.4 GHz Intel CPU
- Memory: 32 GB RAM
- Operating system: Cisco IOS XR 64-bit
- Redundancy: Power supply and fan redundancy
- Power supply part numbers: A9K-1600W-AC, A9K-1600W-DC
- AC input: 90-265V, 50-60 Hz
- DC input: -40V to -72V
- Power consumption: 850 W typical, 1100 W maximum
- Height: 8.7 cm (3.43 in)
- Width: 44 cm (17.32 in)
- Depth: 60 cm (23.62 in)
- Chassis weight: 21.6 kg (47.62 lbs)
- Weight fully configured (2 x power modules, 3 x fan trays): 25.4 kg (55.97 lbs)
- Operating temperature (nominal): 5 to 40 C
- Operating temperature (short-term): -5 to 55 C
- Storage temperature: -40 to 70 C
- Operating humidity (nominal): 10 to 85% RH
- Operating altitude: 0 to 4000 m
- Air flow: Front to back
- NEBS: Designed to meet SR-3580 Level 3, GR-1089-CORE, GR-63-CORE
- EMC: FCC Class A, ICES 003 Class A, AS/NZS 3548 Class A, CISPR 22 (EN55022) Class A

FAQs

Q: How do I increase capacity beyond 120G?
A: Capacity upgrades are sold as licences. A9K9901-UP120-256G upgrades from 120G to 256G, and A9K9901-UP256-456G upgrades from 256G to 456G.

Q: Which power supplies does the ASR 9901 take?
A: It takes the A9K-1600W-AC or A9K-1600W-DC power supplies. AC input is 90-265V at 50-60 Hz and DC input is -40V to -72V.

Q: What fan tray and mounting kits suit this chassis?
A: The fan tray is ASR-9901-FAN. Mounting options are ASR-9901-2P-KIT (2-post) and ASR-9901-4P-KIT (4-post), both for 19 and 23 inch racks.

Q: Does this SKU include feature licences?
A: This is the Pay-As-You-Grow 120G base hardware PID. Optional feature licences such as L3 VPN (S-A9K-9901-120AIP) and I-VRF (S-A9K-9901-VRF-LC) are sold separately.

Q: Which optics can I use in the 100GE and 1/10GE ports?
A: Supported optics are listed in the Cisco Optics Compatibility Matrix at tmgmatrix.cisco.com. Genuine Cisco part numbers for your required speed and reach can be matched from that list.
