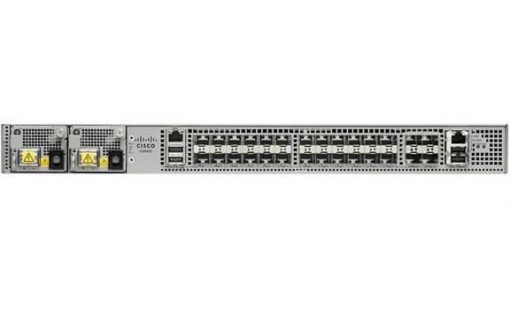

• Cisco ASR-920U-12SZ-IM router with 12xGE SFP and 4x10GE SFP+ ports on rack
1 1

Cisco

Cisco ASR-920U-12SZ-IM | ASR 920 Router, 12x GE + 4x 10G SFP+, 1 IM Slot, GNSS

ASR-920U-12SZ-IM

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco ASR 920 Series ASR-920U-12SZ-IM is a fixed-configuration, temperature-hardened 1RU aggregation router built for mobile backhaul and Carrier Ethernet access. It suits macro and small-cell cell sites, Metro Ethernet access, broadband access and small aggregation sites or central offices, and fits ETSI 300 mm deep cabinets.

The chassis provides 12 x 1GE ports (8 x 10/100/1000 copper RJ45 with PoE and 4 x 1GE SFP) plus 4 x 1G/10G dual-rate SFP+ ports, and one interface module slot for TDM or Ethernet modules. System throughput is 60 Gbps and 95 Mpps. A built-in GNSS receiver with 1PPS, 10 MHz and ToD timing ports, SyncE and IEEE-1588 lets it act as a grandmaster clock for small-cell timing. Operating temperature is -40 to 70 C. It uses Cisco IOS XE with port-based licences that activate additional 1GE and 10GE interfaces as capacity grows.

Two hot-swap power supply bays accept A920-PWR400-A (AC) or A920-PWR400-D (DC) modules in 1+1 redundancy. Supported interface modules include A900-IMA8T, A900-IMA8S, A900-IMA8D, A900-IMA16D, A900-IMA32D, A900-IMA1X, A900-IMA8T1Z, A900-IMA8S1Z, A900-IMA2Z and A900-IMA4OS. Rack-mount kits A920-RCKMT-ETSI, A920-RCKMT-19 and A920-RCKMT-23 are available.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Built-in GNSS receiver that can act as a grandmaster clock for small-cell backhaul
- SyncE and IEEE-1588 timing with 1PPS, 10 MHz and ToD external ports
- IPsec with built-in hardware crypto engine for secure small-cell backhaul
- Layer 2 VPN, Layer 3 VPN, MPLS and H-QoS service support
- PoE on the 8 copper ports
- Zero Touch Provisioning button, USB console, USB memory and RS232 console/aux ports
- Supports TDM and Ethernet interface modules (T1/E1, OC3/OC12, GE, 10GE)
- Runs Cisco IOS XE

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Fixed Ethernet ports: 8 x 10/100/1000 copper RJ45 with PoE and 4 x 1GE SFP
- Dual-rate ports: 4 x 1G/10G SFP+
- Interface module slots: 1
- System throughput: 60 Gbps, 95 Mpps
- Form factor: 1RU
- Dimensions (H x W x D): 44 x 444.5 x 286.54 mm (1.73 x 17.5 x 11.28 in)
- Weight: 4.2 kg empty chassis
- Rack mounts: ETSI, 19-in. and 23-in. kits, wall mount also supported
- Airflow: Front-to-back, front cable access
- Power supplies: 2 AC or DC, 1+1 redundant, hot-swappable, current sharing
- Power consumption: Max 150 W, typical 130 W without PoE
- AC input: 85-264 VAC, 47-63 Hz
- DC input: -18 to -32 VDC or -40 to -72 VDC
- Operating temperature: -40 to 70 C up to 300 m altitude
- Relative humidity: 5 to 95%, non-condensing
- Timing: built-in GNSS receiver, 1PPS, 10 MHz and ToD ports, SyncE, IEEE-1588
- Alarms: 4 dry-contact inputs with critical, major and minor alarm LEDs
- Compliance: NEBS GR-63-CORE, GR-1089-CORE, SR-3580 Level 4, ETSI EN 300 019/119/753, FCC Part 15 Class A
- MTBF: 407,230 hours

FAQs

Q: How does the ASR-920U-12SZ-IM differ from the ASR-920-12SZ-IM?
A: The ASR-920U variant has a built-in GNSS receiver, so it can act as a grandmaster clock for small-cell timing. Both share the same 12x GE, 4x 10G SFP+ and single interface module slot layout.

Q: How is licensing handled on this router?
A: It runs Cisco IOS XE with port-based licences that activate additional 1GE and 10GE interfaces on a pay-as-you-grow basis. TDM interface modules use per-port licences.

Q: What power supplies does it use?
A: Two bays take A920-PWR400-A (AC) or A920-PWR400-D (DC) modules in any mix, 1+1 redundant and hot-swappable. Draw is up to 150 W, typically 130 W, without PoE.

Q: Which interface modules work in the IM slot?
A: Supported modules are A900-IMA8T, A900-IMA8S, A900-IMA8D, A900-IMA16D, A900-IMA32D, A900-IMA1X, A900-IMA8T1Z, A900-IMA8S1Z, A900-IMA2Z and A900-IMA4OS. Each requires a minimum IOS XE release.

Q: Which rack-mount kits are available?
A: A920-RCKMT-ETSI, A920-RCKMT-19 and A920-RCKMT-23 cover ETSI, 19-inch and 23-inch racks. The chassis can also be wall mounted.
