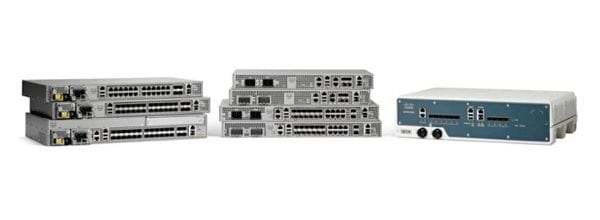

• Cisco ASR-920-8S4Z-PD 8x 1GbE SFP + 4x 10GbE SFP+ switch
1 1

Cisco

Cisco ASR-920-8S4Z-PD | ASR 920 Router, 8x 1G SFP, 4x 10G SFP+, DC, Fanless

ASR-920-8S4Z-PD

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco ASR 920 Series is a compact, temperature-hardened 1RU converged access router designed for mobile backhaul, Metro Ethernet and business services. This DC-powered, fanless model suits small and sealed outdoor cabinets, remote sites and carrier access deployments where passive cooling is an advantage.

This SKU provides 8 x 1GbE SFP ports and 4 x 10GbE SFP+ ports in a fixed 1RU chassis. The DC power variant accepts a -19.2V to -72V DC input range, with nominal -24V to -48V DC. Timing support includes SyncE and IEEE 1588, with BITS, 1PPS and ToD interfaces, for mobile RAN synchronisation. Capacity is enabled on a pay-as-you-grow licensing basis.

It runs Cisco IOS XE with MPLS, L2VPN and L3VPN, VPLS and H-VPLS, and Carrier Ethernet with hierarchical QoS. It works with Cisco FE and GE SFPs, CWDM and DWDM optics, and 10G SFP+ optics including SFP-10G-SR, SFP-10G-LR, SFP-10G-ER and SFP-10G-ZR.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Cisco Carrier Ethernet ASIC for line-rate performance with ACL and HQoS
- MPLS in the access layer with full VPLS and H-VPLS support
- Pay-as-you-grow licensing to enable additional 1G and 10G ports
- Integrated timing and synchronisation for mobile backhaul
- Layer 2 CFM, IP SLA and MPLS OAM for service assurance
- Compact fanless design suited to small sealed outdoor cabinets
- Wide SFP and SFP+ optics support including CWDM, DWDM and BiDi

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Ports: 8 x 1GbE SFP
- Ports: 4 x 10GbE SFP+
- Form factor: 1RU fixed chassis
- Cooling: Fanless, passively cooled
- Power: DC powered
- DC input voltage: -19.2V to -72V DC, nominal -24V to -48V DC
- Timing: SyncE with ESMC/SSM, IEEE 1588-2008
- Timing interfaces: BITS, 1PPS, ToD
- QoS: HQoS, 8 queues per service, 3 levels of scheduling
- Alarm inputs: 4 external alarm inputs, dying gasp
- Software: Cisco IOS XE
- Rack mounting: ETSI, 19-in. and 23-in. kits
- Relative humidity: 5 to 95 percent, noncondensing
- Seismic: Zone 4
- Compliance: NEBS Level 4, ETSI EN 300 019 Class 3.2

FAQs

Q: Does this router need a licence to enable all ports?
A: Port and feature activation on the ASR 920 family is licence-based on a pay-as-you-grow model. Additional 1G and 10G port capacity and MPLS features are enabled through licensing.

Q: What power input does the DC model use?
A: The DC variant accepts -19.2V to -72V DC, with a nominal range of -24V to -48V DC.

Q: Which optics work with the SFP+ ports?
A: The 10G SFP+ ports support Cisco SFP-10G-SR, SFP-10G-LR, SFP-10G-ER, SFP-10G-ZR and SFP-10G-LRM, plus BiDi optics and SFP-H10GB-CU cables.

Q: Which rack mount kits suit this chassis?
A: The ASR 920 family uses the A920-RCKMT-ETSI, A920-RCKMT-19 and A920-RCKMT-23 rack kits for ETSI, 19-inch and 23-inch racks.

Q: Does it support network timing for mobile backhaul?
A: Yes. It supports SyncE with ESMC/SSM and IEEE 1588-2008, with BITS, 1PPS and ToD interfaces for RAN synchronisation.
