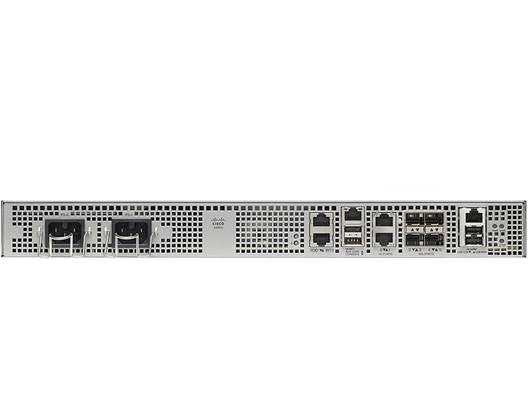

• Cisco ASR-920-4SZ-D router with 2x1GbE SFP and 4x10GbE SFP+ ports
1 1

Cisco

Cisco ASR-920-4SZ-D | ASR 920 Router, 2x 1G + 4x 10G SFP+, DC Power

ASR-920-4SZ-D

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The ASR 920 is a temperature-hardened, 1RU converged access router built for mobile backhaul, Metro and Carrier Ethernet access, broadband aggregation and business services. This DC-powered 4SZ model suits remote access sites, small central offices and sealed outdoor cabinets, where its compact 43.7 x 393.7 x 243.8 mm chassis fits space-constrained ETSI 300 mm deep enclosures.

It provides 2 x 1GbE and 4 x 10GbE ports using SFP and SFP+ optics. Power comes from two redundant, built-in DC supplies with an input range of -19.2 V DC to -72 V DC, drawing 105 W maximum and 75 W typical. Airflow is front-to-back and the operating range extends from -40 to +70 C, depending on altitude and the optics fitted. It runs Cisco IOS XE Software, with features such as MPLS and additional 1G/10G port capacity activated through a pay-as-you-grow licensing model.

Timing support includes SyncE and IEEE 1588, with BITS, 1PPS and ToD interfaces for mobile and RAN synchronisation. It works with Fast Ethernet, Gigabit Ethernet, CWDM/DWDM and 10G SFP/SFP+ optics, including SFP-10G-SR, SFP-10G-LR, GLC-SX-MMD and SFP-H10GB-CUxM cables, from IOS XE 3.13. Optional rack-mount kits are A920-RCKMT-ETSI, A920-RCKMT-19 and A920-RCKMT-23.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Cisco Carrier Ethernet ASIC delivering line-rate performance with hierarchical QoS and ACLs
- MPLS in the access layer with L2VPN, L3VPN and full VPLS or H-VPLS support
- Pay-as-you-grow licensing to activate features and additional 1G/10G port capacity on demand
- Hierarchical QoS scaling to eight queues per service with three levels of scheduling
- OAM functions including Layer 2 CFM, IP SLA for Layer 3 and MPLS OAM
- Dying gasp and four external alarm inputs for remote site health monitoring
- Extended temperature range suited to small sealed outdoor cabinets
- Supported by Cisco Prime for EPN network management

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Part number: ASR-920-4SZ-D
- Product type: Aggregation Services Router
- Ports: 2 x 1GbE and 4 x 10GbE (SFP/SFP+)
- Power: DC model with 2 redundant, built-in power supplies
- DC input voltage: -19.2 V DC to -72 V DC, nominal -24 V DC to -48 V DC
- Power consumption: 105 W maximum, 75 W typical
- Form factor: 1 RU fixed chassis
- Dimensions (H x W x D): 43.7 x 393.7 x 243.8 mm (1.72 x 15.5 x 9.6 in.)
- Weight: 3.2 kg (7.0 lb)
- Airflow: Front-to-back
- Operating temperature: -40 to +70 C up to 300 m; -40 to +65 C up to 1800 m; -40 to +55 C up to 4000 m
- Relative humidity: 5 to 95 percent, noncondensing
- Storage temperature: -40 to +70 C
- Acoustic noise: 52 dBA maximum sound pressure
- MTBF: 397,400 hours
- Timing: SyncE, IEEE 1588-2008, BITS, 1PPS and ToD interfaces
- Rack mounts: ETSI, 19-in. and 23-in. rack-mount kits (optional accessories)
- Software: Cisco IOS XE
- Compliance: NEBS Level 4, Seismic Zone 4

FAQs

Q: Does this router need a licence to unlock features?
A: It runs Cisco IOS XE Software, and features such as MPLS and additional 1G/10G port capacity are activated through a pay-as-you-grow licensing model.

Q: What power does the ASR-920-4SZ-D require?
A: It is a DC model with two redundant, built-in DC power supplies. The input range is -19.2 V DC to -72 V DC, with a nominal -24 V DC to -48 V DC. Power draw is 105 W maximum and 75 W typical.

Q: Which optics does it work with?
A: It supports Fast Ethernet, Gigabit Ethernet, CWDM/DWDM and 10G SFP/SFP+ optics, including GLC-SX-MMD, GLC-LH-SMD, GLC-ZX-SMD, SFP-GE-T, SFP-10G-SR, SFP-10G-LR, SFP-10G-ER, SFP-10G-ZR, SFP-10G-LRM and SFP-H10GB-CUxM cables. Support begins with IOS XE 3.13, with some optics from 3.14.

Q: Which rack-mount kits are available for it?
A: Optional kits are A920-RCKMT-ETSI, A920-RCKMT-19 and A920-RCKMT-23, covering ETSI, 19-inch and 23-inch racks.

Q: How does the 4SZ DC model differ from other ASR 920 variants?
A: This SKU is the DC-powered model with 2 x 1GbE and 4 x 10GbE ports. Other ASR 920 variants differ in power type and port configuration.
