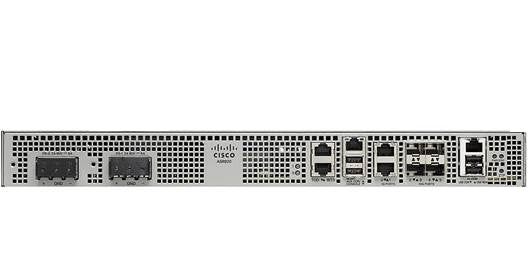

• Cisco ASR-920-4SZ-A router with 2x1GbE SFP and 4x10GbE SFP+ ports
1 1

Cisco

Cisco ASR-920-4SZ-A | ASR 920 Router, 2x 1G and 4x 10G SFP+, AC Model

ASR-920-4SZ-A

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The ASR 920 is a compact, temperature-hardened Carrier Ethernet aggregation router for mobile backhaul, business and metro Ethernet access, and MPLS VPN services delivered from the access layer. This ASR-920-4SZ-A is the AC model with 2GE and 4-10GE ports, suited to remote sites, small central offices and ETSI 300 mm cabinets.

It provides 2 x Gigabit Ethernet and 4 x 10 Gigabit Ethernet SFP/SFP+ ports in a 1RU fixed chassis with front-to-back airflow. Two built-in AC power supplies accept 85 to 264V AC at 47 to 63 Hz, with a typical draw of 75 W and a maximum of 105 W. Operating temperature runs from -40 to +70 C depending on altitude. Port capacity and features such as MPLS are activated on demand through pay-as-you-grow licensing, and the router runs Cisco IOS XE Software.

Integrated timing covers BITS, 1PPS, ToD, SyncE and IEEE 1588-2008 for RAN aggregation. It supports a wide range of Cisco SFP and SFP+ optics, including SFP-10G-SR, SFP-10G-LR, GLC-SX-MMD and SFP-H10GB-CUxM direct attach cables. Rack-mount kits A920-RCKMT-ETSI, A920-RCKMT-19 and A920-RCKMT-23 are available.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Cisco Carrier Ethernet ASIC providing line-rate performance with hierarchical QoS and ACLs
- MPLS in the access layer with L2VPN, L3VPN, VPLS and H-VPLS support
- Hierarchical QoS with eight queues per service and three levels of scheduling
- Integrated timing with BITS, 1PPS, ToD, SyncE with ESMC/SSM and IEEE 1588
- Carrier Ethernet OAM including Layer 2 CFM, IP SLA and MPLS OAM
- Dying gasp and four external alarm inputs
- Pay-as-you-grow licensing to enable additional 1GE/10GE ports and MPLS features
- Extended temperature range and small form factor suited to ETSI 300 mm cabinets and outdoor sealed enclosures
- Managed with Cisco Prime for EPN

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Part number: ASR-920-4SZ-A
- Model: ASR 920 Series, 2GE and 4-10GE, AC model
- Ports: 2 x Gigabit Ethernet and 4 x 10 Gigabit Ethernet (SFP/SFP+)
- Form factor: 1RU fixed chassis
- Dimensions (H x W x D): 1.72 x 15.5 x 9.1 in (43.7 x 393.7 x 231.1 mm)
- Weight: 7.7 lb (3.5 kg)
- Rack mounts: ETSI, 19-in. and 23-in. rack-mount kits (options)
- Airflow: Front-to-back
- Power supplies: 2 built-in AC power supplies
- AC input voltage: 85V AC to 264V AC, nominal 100V AC to 240V AC
- AC input frequency: 47 to 63 Hz, nominal 50 to 60 Hz
- Power consumption: Max 105 W, Typical 75 W
- Operating temperature: -40 to +70 C up to 300 m; -40 to +65 C up to 1800 m; -40 to +55 C up to 4000 m
- Relative humidity: 5 to 95 percent, noncondensing
- Acoustic noise: max 52 dBA sound pressure (bystander, 20 C, ISO 7779)
- Storage environment: -40 to +70 C
- MTBF: 301,480 hrs
- Seismic: Zone 4
- NEBS: GR-63-CORE Issue 4, GR-1089-CORE Issue 6, SR-3580 NEBS Level 4
- Timing: BITS, 1PPS, ToD, SyncE, IEEE 1588-2008
- Network synchronization standards: ITU-T G.8261, G.8262, G.8264, G.703, G.781, G.813, G.823, G.824
- Software: Cisco IOS XE

FAQs

Q: Does the ASR-920-4SZ-A need a licence to use all its ports and features?
A: Port capacity beyond the base ports and features such as MPLS are activated on demand through the pay-as-you-grow licensing mechanism. The router runs Cisco IOS XE Software.

Q: What power does this model use?
A: This is the AC model with 2 built-in power supplies. It accepts 85 to 264V AC (nominal 100 to 240V AC) at 47 to 63 Hz, with a typical draw of 75 W and a maximum of 105 W.

Q: Which optics does it work with?
A: It supports a wide range of Cisco SFP and SFP+ optics, including GLC-SX-MMD, GLC-LH-SMD, GLC-ZX-SMD, SFP-10G-SR, SFP-10G-LR, SFP-10G-ER, SFP-10G-ZR and SFP-H10GB-CUxM direct attach cables, from IOS XE 3.13/3.14.

Q: Which rack-mount kits are available for it?
A: The ASR 920 supports the A920-RCKMT-ETSI, A920-RCKMT-19 and A920-RCKMT-23 rack-mount kits for ETSI, 19-inch and 23-inch racks.

Q: How does the ASR-920-4SZ-A differ from other ASR 920 models?
A: It is the 2GE and 4-10GE variant with AC power, offering 2 x Gigabit Ethernet and 4 x 10 Gigabit Ethernet SFP/SFP+ ports in a 1RU fixed chassis.
