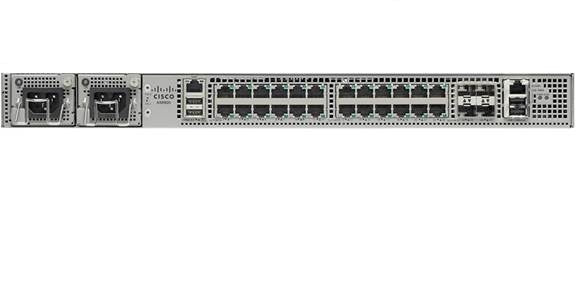

Cisco ASR-920-24TZ-M | ASR 920 Router, 24GE Copper, 4x10GE, Modular PSU

ASR-920-24TZ-M

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The ASR 920 is a temperature-hardened, 1RU converged access router built for mobile backhaul, Metro Ethernet and business service delivery. It runs Cisco IOS XE and suits small aggregation sites, broadband access such as IPTV and VoD, and MPLS-based L2VPN and L3VPN services.

This ASR-920-24TZ-M variant provides 24 x Gigabit Ethernet copper RJ-45 ports and 4 x 10GE SFP+ ports, with modular power supplies in AC or DC options. The Cisco Carrier Ethernet ASIC supports hierarchical QoS, while integrated BITS, 1PPS and ToD interfaces, Synchronous Ethernet and IEEE 1588 handle network timing. The family operates from -40C to +70C, which allows deployment in outdoor cabinets. Features and ports are enabled through a pay-as-you-grow licensing model.

The SFP+ ports accept optics such as SFP-10G-SR, SFP-10G-LR, SFP-10G-ER, SFP-10G-ZR and SFP-10G-LRM, along with SFP-H10GB-CUxM cables. Rack mount kits A920-RCKMT-ETSI, A920-RCKMT-19 and A920-RCKMT-23 cover ETSI, 19-inch and 23-inch racks.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Cisco Carrier Ethernet ASIC with hierarchical QoS, up to 8 queues per service and 3 scheduling levels
- MPLS in the access layer with L2VPN, L3VPN, VPLS and H-VPLS
- Integrated BITS, 1PPS and ToD timing interfaces
- Synchronous Ethernet with ESMC/SSM and IEEE 1588 support
- Layer 2 CFM, IP SLA and MPLS OAM for service monitoring
- Dying gasp and four external alarm inputs
- Extended temperature range for outdoor cabinet deployment
- Managed via Cisco Prime for EPN architectures

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Port configuration: 24 x Gigabit Ethernet copper (RJ-45), 4 x 10GE SFP+
- Form factor: 1 RU
- Airflow: Front-to-back
- Power supplies: 2 modular power supplies, AC or DC options
- AC input voltage: 85V AC to 264V AC, nominal 100-240V AC
- AC input frequency: 47 to 63 Hz
- DC input voltage: -19.2V DC to -72V DC, nominal -24V DC to -48V DC
- Operating temperature up to 300 m: -40C to +70C
- Operating temperature up to 1800 m: -40C to +65C
- Operating temperature up to 4000 m: -40C to +55C
- Relative humidity: 5 to 95 percent, noncondensing
- Storage environment: -40C to +70C, altitude 4570 m
- Acoustic noise: max 52 dBA sound pressure at 20C
- Seismic: Zone 4
- Rack mounts: ETSI, EIA 19-inch and EIA 23-inch kits
- Software: Cisco IOS XE
- Compliance: NEBS GR-63-CORE Issue 4, GR-1089-CORE Issue 6, SR-3580 Level 4
- Safety: UL/CSA/IEC/EN 60950-1, AS/NZS 60950.1:2003
- EMC: FCC Part 15 Class A, EN55022 Class A, CISPR22 Class A

FAQs

Q: Does the ASR-920-24TZ-M need a licence?
A: The ASR 920 uses a pay-as-you-grow licensing model for feature and port activation, such as MPLS and 10GE services. Confirm the licence tier you need for your deployment before ordering.

Q: What power options does it support?
A: It uses modular power supplies in AC or DC options. The AC input range is 85V AC to 264V AC and the DC input range is -19.2V DC to -72V DC.

Q: Which optics work in the SFP+ ports?
A: The 10GE SFP+ ports support Cisco optics including SFP-10G-SR, SFP-10G-LR, SFP-10G-ER, SFP-10G-ZR and SFP-10G-LRM, plus extended-temperature SFP-10G-SR-X and SFP-10G-LR-X. SFP-H10GB-CUxM cables are also supported.

Q: Which rack mount kits suit the ASR 920?
A: The A920-RCKMT-ETSI, A920-RCKMT-19 and A920-RCKMT-23 kits cover ETSI, EIA 19-inch and EIA 23-inch racks.

Q: How does this SKU differ from other ASR 920 models?
A: The 24TZ-M provides 24 Gigabit copper ports and 4 x 10GE SFP+ ports with modular power supplies, giving a higher copper port density than the smaller 12-port and 4-port ASR 920 models.
