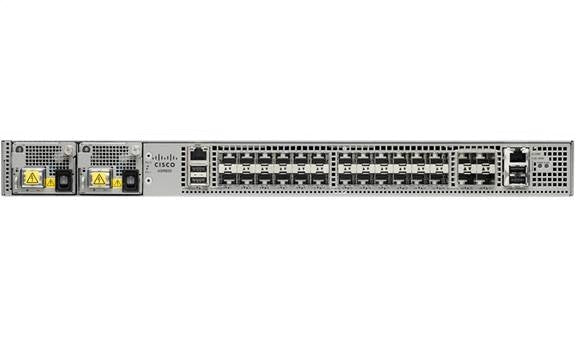

• Cisco ASR-920-24SZ-M router with 24x1G SFP ports and 4x10G uplinks
1 1

Cisco

Cisco ASR-920-24SZ-M | ASR 920 Router, 24x 1G SFP, 4x 10G SFP+, Modular PSU

ASR-920-24SZ-M

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The ASR 920 24SZ-M is a compact 1RU Carrier Ethernet aggregation router from the Cisco ASR 920 Series. It is built for mobile backhaul, metro Ethernet access, broadband aggregation and business services at remote sites, smaller aggregation points and outdoor cabinets.

This model provides 24 x 1GE SFP ports and 4 x 10GE SFP+ ports, with modular, field-replaceable power supplies. The ASR 920 family runs Cisco IOS XE on a Carrier Ethernet ASIC with hierarchical QoS, MPLS, L2VPN, L3VPN, VPLS and H-VPLS. Timing is handled through BITS, 1PPS and ToD interfaces, SyncE and IEEE 1588, which suits mobile and TDM synchronisation requirements.

The family uses a pay-as-you-grow licensing model to enable additional ports and features such as MPLS. It supports a wide range of Cisco SFP and SFP+ optics, including 1000BASE and 10G SFP+ variants, and is designed for a temperature-hardened operating range.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Carrier Ethernet ASIC delivering line-rate performance with ACLs and hierarchical QoS
- HQoS with eight queues per service and three levels of scheduling
- MPLS in the access layer with L2VPN, L3VPN, VPLS and H-VPLS
- Mobile timing and synchronisation through BITS, 1PPS, ToD, SyncE with ESMC/SSM and IEEE 1588
- Can act as the clock source for TDM, SDH/SONET and SyncE interfaces
- OAM tools including Layer 2 CFM, IP SLA and MPLS OAM
- Dying gasp and four external alarm inputs for remote site monitoring
- Temperature-hardened design suited to small, sealed outdoor cabinets

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Ports: 24 x 1GE SFP
- Uplinks: 4 x 10GE SFP+
- Power supplies: modular, field-replaceable (AC or DC)
- Form factor: 1 RU
- Airflow: front-to-back
- Software: Cisco IOS XE
- AC input voltage: 85V AC to 264V AC, nominal 100V AC to 240V AC
- AC input frequency: 47 to 63 Hz
- DC input voltage: -19.2V DC to -72V DC, nominal -24V DC to -48V DC
- Operating temperature: -40C to +70C up to 300m, derated at higher altitudes (optics may limit the range)
- Relative humidity: 5 to 95 percent, non-condensing
- Storage temperature: -40C to +70C
- Seismic: Zone 4
- Rack mounting: ETSI, 19-inch and 23-inch rack-mount kits available
- Timing interfaces: BITS, 1PPS, ToD
- Synchronisation: SyncE, IEEE 1588-2008
- Management: Cisco Prime for EPN
- Compliance: NEBS Level 4 (GR-63-CORE, GR-1089-CORE, SR-3580)

FAQs

Q: Does the ASR 920 family require licensing?
A: The ASR 920 family uses a pay-as-you-grow model to enable additional 1GE and 10GE ports and features such as MPLS. Confirm the licence tier you need against the Cisco ordering guide for your deployment.

Q: What power options does this router use?
A: The -M suffix indicates modular power supplies, which can be AC (85 to 264V AC) or DC (-19.2 to -72V DC). The family supports two power supplies for redundancy.

Q: Which optics work with the 1G and 10G ports?
A: The family supports Cisco 1000BASE SFPs such as GLC-SX-MMD, GLC-LH-SMD, GLC-ZX-SMD and GLC-BX-D/U, plus 10G SFP+ modules such as SFP-10G-SR, SFP-10G-LR, SFP-10G-ER and SFP-10G-ZR, as well as SFP-H10GB-CUxM DAC cables.

Q: What rack mount options are available?
A: The ASR 920 family supports ETSI, 19-inch and 23-inch rack-mount kits, ordered as A920-RCKMT-ETSI, A920-RCKMT-19 and A920-RCKMT-23.

Q: Can it provide clock synchronisation for mobile networks?
A: Yes. It supports BITS, 1PPS and ToD interfaces along with SyncE and IEEE 1588, and can act as the clock source for TDM, SDH/SONET and SyncE interfaces.
