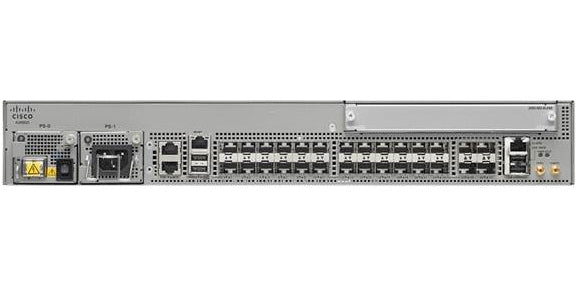

Cisco ASR-920-24SZ-IM | ASR 920 Router, 24x 1G SFP, 4x 10G SFP+, IM Slot

ASR-920-24SZ-IM

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The ASR 920 is a temperature-hardened, 1RU compact aggregation services router built for mobile backhaul, Carrier Ethernet access and business services. This model suits service providers and network operators deploying in remote, space-constrained or small outdoor cabinet locations.

This SKU provides 24x 1G SFP ports and 4x 10G SFP+ ports, with one interface module slot for additional port options and modular power supplies. It runs Cisco IOS XE Software and uses a pay-as-you-grow licensing model to activate additional 1G and 10G ports and features such as MPLS. Timing support includes BITS, 1PPS and ToD interfaces, SyncE and IEEE 1588 for mobile backhaul synchronisation.

SFP and SFP+ cages accept genuine Cisco Gigabit optics such as GLC-SX-MMD and GLC-LH-SMD, and 10G optics such as SFP-10G-SR and SFP-10G-LR. ETSI, 19-inch and 23-inch rack mounting kits are available for the series.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Carrier Ethernet ASIC with line-rate performance, ACL and hierarchical QoS
- MPLS in the access layer with full L2VPN and L3VPN support, including VPLS and H-VPLS
- HQoS with eight queues per service and three levels of scheduling
- Integrated BITS, 1PPS and ToD timing with SyncE and IEEE 1588 for mobile backhaul synchronisation
- Pay-as-you-grow licensing to enable additional 1G and 10G ports and features on demand
- OAM tools including Ethernet CFM, IP SLA and MPLS OAM, plus dying gasp and four external alarm inputs
- Temperature-hardened compact design suited to small or sealed outdoor cabinets

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Product type: Aggregation Services Router
- Series: Cisco ASR 920
- SFP ports: 24 x 1GE
- SFP+ ports: 4 x 10GE
- Interface module slots: 1
- Power supplies: Modular
- Form factor: 1 RU
- Airflow: Front-to-back
- Ethernet interfaces: Copper and fibre, 10 Mbps to 10 Gbps
- Operating temperature: -40 to +70 C up to 300 m, -40 to +65 C up to 1800 m, -40 to +55 C up to 4000 m (optics may limit)
- Relative humidity: 5 to 95 percent, noncondensing
- Storage environment: -40 to +70 C, altitude up to 4570 m
- AC input: 85 to 264 V AC, 47 to 63 Hz
- DC input: -19.2 to -72 V DC
- Timing: BITS, 1PPS and ToD interfaces, SyncE with ESMC/SSM, IEEE 1588-2008
- Seismic rating: Zone 4
- Software: Cisco IOS XE

FAQs

Q: How is this ASR 920 model licensed?
A: The ASR 920 series runs Cisco IOS XE and uses a pay-as-you-grow licensing model to activate additional 1G and 10G ports and features such as MPLS.

Q: Which SFP and SFP+ optics work with it?
A: Genuine options include Gigabit optics such as GLC-SX-MMD, GLC-LH-SMD, GLC-ZX-SMD and SFP-GE-T, and 10G optics such as SFP-10G-SR, SFP-10G-LR, SFP-10G-ER and SFP-10G-ZR. Direct attach cables such as SFP-H10GB-CUxM are also supported.

Q: What rack mounting options are available?
A: The series supports ETSI, 19-inch and 23-inch rack mount kits, ordered as A920-RCKMT-ETSI, A920-RCKMT-19 and A920-RCKMT-23.

Q: How does this SKU differ from other ASR 920 models?
A: This model combines 24x 1G SFP ports, 4x 10G SFP+ ports, modular power supplies and one interface module slot, which sets it apart from compact fixed-PSU variants in the family.

Q: Does it support timing for mobile backhaul?
A: Yes. The ASR 920 series includes BITS, 1PPS and ToD interfaces, SyncE with ESMC/SSM and IEEE 1588-2008 for network synchronisation.
