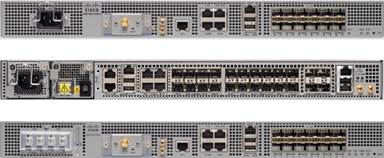

• Cisco ASR-920-20SZ-M router with 20x1G SFP ports in rack
1 1

Cisco

Cisco ASR-920-20SZ-M | ASR 920 Router, 20x 1G SFP, 4x 10G SFP+, Modular PSU

ASR-920-20SZ-M

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The ASR 920 series is a compact 1RU aggregation services router built for service provider and carrier-grade access networks. This modular power supply model suits mobile backhaul, Metro Ethernet and broadband access deployments, including small sealed outdoor cabinets and remote or central-office aggregation sites.

Port density is 20 x 1GbE SFP, 4 x 1GbE RJ45 and 4 x 10GbE SFP+, giving a flexible mix of fibre and copper connections for aggregating cell sites and business services. Timing support covers Synchronous Ethernet (SyncE) and IEEE 1588, with BITS, 1PPS and ToD interfaces for mobile synchronisation. The platform runs Cisco IOS XE Software and supports MPLS in the access layer with L2VPN, L3VPN, VPLS and H-VPLS.

Port and feature licensing follows a pay-as-you-grow model, so additional 1G and 10G interfaces and MPLS features are enabled on demand. The platform accepts a wide range of Cisco SFP and SFP+ optics, including FE, GE, CWDM, DWDM and 10G types, and optional ETSI, 19-inch and 23-inch rack-mount kits.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Converged access platform for wireline and wireless service delivery
- Line-rate hierarchical QoS, MPLS and VPLS from the Cisco Carrier Ethernet ASIC
- MPLS in the access layer with L2VPN, L3VPN, VPLS and H-VPLS support
- Mobile timing and synchronisation with SyncE, IEEE 1588, BITS, 1PPS and ToD
- Carrier Ethernet OAM including CFM, IP SLA and MPLS OAM
- Pay-as-you-grow licensing to enable extra 1G and 10G ports and features on demand
- Temperature-hardened compact design suited to small sealed outdoor cabinets and ETSI 300 mm deep cabinets
- Network management supported through Cisco Prime for EPN

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Ports: 20 x 1GbE SFP, 4 x 1GbE RJ45, 4 x 10GbE SFP+
- Power supply: Modular design
- Timing: SyncE with ESMC/SSM, IEEE 1588, BITS, 1PPS and ToD interfaces
- Form factor: 1RU compact
- Rack mounting: ETSI, 19-inch and 23-inch rack-mount kits available
- Air flow: Front-to-back
- AC input range: 85V AC to 264V AC, 47 to 63 Hz
- DC input range: -19.2V DC to -72V DC
- Operating temperature: -40 C to +70 C up to 300 m altitude, depending on optics used
- Relative humidity: 5 to 95 percent, non-condensing
- Alarm inputs: Four external alarm inputs and dying gasp
- QoS: Hierarchical QoS, 8 queues per service, 3 levels of scheduling
- Software: Cisco IOS XE Software
- Compliance: NEBS Level 4, ETSI, FCC Class A

FAQs

Q: Does the ASR-920-20SZ-M need extra licences to use all its ports?
A: The ASR 920 family uses pay-as-you-grow licensing, where additional 1G and 10G interfaces and MPLS features are activated on demand. Confirm the licence tier you need for your deployment before ordering.

Q: What power options does the ASR 920 family support?
A: The ASR 920 family supports AC input of 85V AC to 264V AC at 47 to 63 Hz and DC input of -19.2V DC to -72V DC. This model uses a modular power supply design.

Q: Which optics work with the SFP and SFP+ ports?
A: The platform supports a broad range of Cisco optics, including GLC-SX-MMD, GLC-LH-SMD, GLC-ZX-SMD, SFP-GE-T, CWDM and DWDM SFPs, and 10G SFP+ modules such as SFP-10G-SR, SFP-10G-LR, SFP-10G-LRM, SFP-10G-ER and SFP-10G-ZR. SFP-H10GB-CUxM direct-attach cables are also supported.

Q: Which rack-mount kits are available for the ASR 920?
A: Optional ETSI, 19-inch and 23-inch rack-mount kits are available for the ASR 920 family, with part numbers A920-RCKMT-ETSI, A920-RCKMT-19 and A920-RCKMT-23.

Q: Which timing and synchronisation features does it support?
A: It supports Synchronous Ethernet with ESMC/SSM and IEEE 1588-2008, plus BITS, 1PPS and ToD interfaces for mobile backhaul timing.
