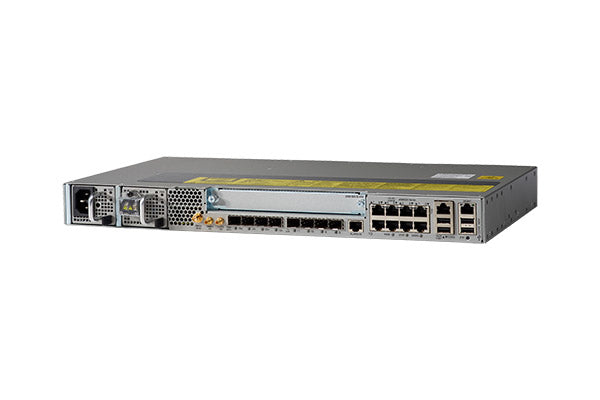

• Cisco 2960X switch with ports, yellow label, and ASR-920 router
1 1

Cisco

Cisco ASR-920-12SZ-IM-CC | ASR 920 Router, 12x 1G SFP, 4x 10G SFP+, Conformal Coated

ASR-920-12SZ-IM-CC

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco ASR 920 Series is a compact 1RU, temperature-hardened carrier Ethernet aggregation router built for mobile backhaul, metro Ethernet and business access. It runs Cisco IOS XE and suits remote or space-constrained deployments, including small sealed outdoor cabinets and ETSI 300 mm deep cabinets.

This conformal-coated variant provides 12 x 1GE SFP ports, 4 x 10GE SFP+ uplink ports and one interface module (IM) slot, with modular power supplies. The chassis is front-to-back airflow and supports ETSI, 19-inch and 23-inch rack mounts. Built-in BITS, 1PPS and ToD timing interfaces, plus SyncE and IEEE 1588 support, make it suited to RAN aggregation with timing services. Port and feature activation is licence-based under a pay-as-you-grow model.

It works with a wide range of 1G and 10G SFP and SFP+ optics, including GLC-SX-MMD, GLC-LH-SMD, GLC-ZX-SMD, SFP-GE-T, SFP-10G-SR, SFP-10G-LR, SFP-10G-ER, SFP-10G-ZR, BiDi, CWDM and DWDM modules, as well as SFP-H10GB-CU DAC cables.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Cisco Carrier Ethernet ASIC with line-rate performance and hierarchical QoS, up to 8 queues per service and 3 scheduling levels
- MPLS in the access layer with full VPLS and H-VPLS support
- L2VPN and L3VPN service delivery
- Integrated mobile timing and synchronisation with BITS, 1PPS, ToD, SyncE and IEEE 1588
- OAM functions including Layer 2 CFM, IP SLA and MPLS OAM
- Pay-as-you-grow licensing for additional 1GE and 10GE ports and features
- Temperature-hardened compact design suited to small, sealed outdoor cabinets and ETSI 300 mm deep cabinets
- Supported by Cisco Prime for EPN network management

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Ports: 12 x 1GE SFP
- Uplinks: 4 x 10GE SFP+
- Interface module slots: 1 x IM slot
- Chassis: Conformal coated
- Power supplies: Modular, AC or DC options on the ASR 920 family
- Form factor: 1 RU, fixed form factor
- Airflow: Front-to-back
- Rack mounts: ETSI, 19-in. and 23-in. rack-mount kits
- AC input voltage: 85V AC to 264V AC, nominal 100V AC to 240V AC
- AC input frequency: 47 to 63 Hz, nominal 50 to 60 Hz
- DC input voltage: -19.2V DC to -72V DC, nominal -24V DC to -48V DC
- Operating temperature: -40C to +70C up to 1,000 ft (300m)
- Operating temperature: -40C to +65C up to 6,000 ft (1800m)
- Operating temperature: -40C to +55C up to 13,000 ft (4000m)
- Relative humidity: 5 to 95 percent, non-condensing
- Acoustic noise: max 52 dBA sound pressure level (bystander position, 20C)
- Storage environment: -40 to +70C, altitude 15,000 ft (4570m)
- Seismic: Zone 4
- Timing: BITS, 1PPS and ToD interfaces; SyncE with ESMC/SSM; IEEE 1588-2008
- Alarms: Dying gasp and four external alarm inputs
- Software: Cisco IOS XE
- NEBS: GR-63-CORE Issue 4, GR-1089-CORE Issue 6, SR-3580 NEBS Level 4
- Safety: UL 60950-1, CAN/CSA C22.2 No. 60950-1-07, IEC/EN 60950-1, AS/NZS 60950.1:2003
- EMC: FCC Part 15 Class A, EN55022 Class A, CISPR22 Class A, EN 300 386, VCCI Class A, KN22 Class A

FAQs

Q: How are ports and features activated on this router?
A: Port and feature activation is licence-based under a pay-as-you-grow model on Cisco IOS XE, so additional 1GE and 10GE ports and features are enabled with licences.

Q: What power options does the ASR 920 family use?
A: The family uses AC supplies (85 to 264V AC, 47 to 63 Hz) or DC supplies (-19.2 to -72V DC). This variant uses modular power supplies.

Q: Which optics and rack-mount kits work with this router?
A: It supports 1G and 10G SFP and SFP+ optics such as GLC-SX-MMD, GLC-LH-SMD, GLC-ZX-SMD, SFP-GE-T, SFP-10G-SR, SFP-10G-LR, SFP-10G-ER and SFP-10G-ZR, plus SFP-H10GB-CU DAC cables. Rack-mount kits are A920-RCKMT-ETSI, A920-RCKMT-19 and A920-RCKMT-23.

Q: What operating temperature range does it support?
A: The chassis operates from -40C to +70C up to 300m altitude. The upper limit reduces at higher altitudes, and the optics fitted may limit the usable temperature range.

Q: Does it support network timing and synchronisation?
A: Yes. It has built-in BITS, 1PPS and ToD interfaces and supports SyncE with ESMC/SSM and IEEE 1588-2008, which suits mobile backhaul deployments.
