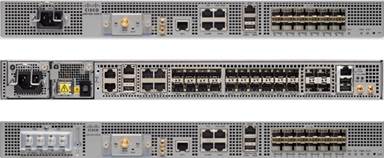

• Cisco ASR-920-12SZ-D router with Cisco 2960X switch in rack
1 1

Cisco

Cisco ASR-920-12SZ-D | ASR 920 12-Port 1/10G SFP/SFP+ Router, Dual DC

ASR-920-12SZ-D

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The ASR 920 is a temperature-hardened, 1RU Carrier Ethernet aggregation router built for mobile backhaul, Metro Ethernet access and aggregation, broadband and IPTV aggregation, and business services with 10GE UNI. It suits space-constrained and sealed outdoor cabinet deployments, with front-to-back airflow and a compact design suited to ETSI 300 mm deep locations.

This model provides 12 x 1/10GE SFP/SFP+ ports and dual built-in DC power supplies accepting -19.2V to -72V DC (nominal -24V to -48V DC). The chassis is a fixed 1RU unit running Cisco IOS XE, with a family operating range of -40 C to +70 C depending on altitude and optics used. Pay-as-you-grow licensing activates additional 1G/10G ports and features such as MPLS and 10GE services on demand.

The router supports MPLS in the access layer with L2VPN, L3VPN, VPLS and H-VPLS, plus hierarchical QoS. Integrated timing covers BITS, 1PPS, ToD, SyncE and IEEE-1588. It works with Cisco Fast Ethernet, Gigabit Ethernet, CWDM/DWDM and 10GE SFP+ optics such as SFP-10G-SR, SFP-10G-LR, GLC-SX-MMD, GLC-LH-SMD, SFP-GE-T, DWDM-SFP10G and SFP-H10GB-CUxM, and is managed with Cisco Prime for EPN.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- MPLS in the access layer with full VPLS and H-VPLS support
- Cisco Carrier Ethernet ASIC for line-rate performance with ACL and HQoS
- Hierarchical QoS with eight queues per service and three levels of scheduling
- Integrated mobile timing and synchronisation with BITS, 1PPS, ToD, SyncE and IEEE-1588
- OAM tools including CFM, IP SLA and MPLS OAM
- Pay-as-you-grow licensing to activate additional 1G/10G ports and features on demand
- Redundant built-in DC power supplies
- 4 external alarm inputs and dying-gasp support
- Supported by Cisco Prime for EPN network management

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Ports: 12 x 1/10GE SFP/SFP+
- Form factor: 1 RU, fixed configuration
- Airflow: Front-to-back
- Power supplies: 2 built-in DC power supplies
- DC input voltage: -19.2V DC to -72V DC, nominal -24V DC to -48V DC
- Operating temperature (family): -40 C to +70 C up to 300 m; -40 C to +65 C up to 1,800 m; -40 C to +55 C up to 4,000 m (optics used may limit range)
- Relative humidity: 5 to 95 percent, noncondensing
- Storage environment: -40 to +70 C, altitude 15,000 ft (4570 m)
- Seismic: Zone 4
- Acoustic noise: max 52 dBA sound pressure at 20 C (ISO 7779)
- Timing: BITS, 1PPS, ToD, SyncE with ESMC/SSM, IEEE-1588-2008
- Software: Cisco IOS XE
- Rack mounting: ETSI, 19-in. and 23-in. rack-mount options
- Safety: UL 60950-1, CAN/CSA C22.2 No. 60950-1-07, IEC/EN 60950-1, AS/NZS 60950.1:2003
- EMC: FCC Part 15 Class A, EN55022 Class A, CISPR22 Class A, EN 300 386
- NEBS: GR-63-CORE Issue 4, GR-1089-CORE Issue 6, SR-3580 NEBS Level 4

FAQs

Q: Does the ASR-920-12SZ-D use AC or DC power?
A: It is the dual DC model with two built-in DC power supplies. The input range is -19.2V DC to -72V DC, with a nominal -24V DC to -48V DC.

Q: How are additional ports and features enabled?
A: The ASR 920 uses a pay-as-you-grow licensing model. Additional 1G/10G Ethernet interfaces and features such as MPLS and 10GE services are activated through licences on Cisco IOS XE.

Q: Which optics does it work with?
A: It supports Cisco Fast Ethernet, Gigabit Ethernet, CWDM/DWDM and 10GE SFP+ optics, including SFP-10G-SR, SFP-10G-LR, GLC-SX-MMD, GLC-LH-SMD, SFP-GE-T, DWDM-SFP10G and SFP-H10GB-CUxM.

Q: What timing and synchronisation does it support?
A: It provides BITS, 1PPS and ToD interfaces along with SyncE with ESMC/SSM and IEEE-1588-2008, which suits mobile backhaul deployments.

Q: What rack-mount options are available for the ASR 920 family?
A: ETSI, 19-inch and 23-inch rack-mount options are available: A920-RCKMT-ETSI, A920-RCKMT-19 and A920-RCKMT-23.
