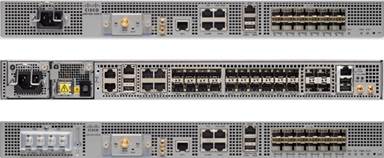

• Cisco ASR-920-12SZ-A router with 12x1/10G SFP ports in rack
1 1

Cisco

Cisco ASR-920-12SZ-A | ASR 920 Router, 12x 1/10G SFP, AC Model

ASR-920-12SZ-A

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The ASR 920 Series is a compact, temperature-hardened aggregation services router built for mobile backhaul, Carrier Ethernet access and business services. This fixed AC-powered model suits metro aggregation, small central-office and cabinet deployments, and remote sites where space and environmental tolerance matter.

It provides twelve 1/10GE SFP/SFP+ ports in a 1 RU chassis with front-to-back airflow and two built-in power supplies. AC input covers 85-264 V AC at 47-63 Hz, and the operating range runs from -40C to +70C up to 1,000 ft (300 m). Timing is handled through BITS, 1PPS and ToD interfaces with SyncE and IEEE 1588 support, and the router runs Cisco IOS XE. A Carrier Ethernet ASIC delivers hierarchical QoS with 8 queues per service and 3 levels of scheduling. Port and feature activation follows a pay-as-you-grow licensing model.

It supports a wide range of Cisco SFP and SFP+ optics, including 1G SX/LH/ZX modules, CWDM/DWDM, 10GBASE-SR/LR/ER/ZR, BiDi variants and SFP-H10GB-CU direct attach cables. ETSI, 19-inch and 23-inch rack-mount kits are available separately.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- MPLS in the access layer with full VPLS and H-VPLS support
- L2VPN and L3VPN service delivery from the access edge
- Hierarchical QoS with 8 queues per service and 3 scheduling levels
- Mobile backhaul timing with BITS, 1PPS, ToD, SyncE (ESMC/SSM) and IEEE 1588
- Carrier Ethernet OAM including Layer 2 CFM, IP SLA and MPLS OAM
- Dying gasp and four external alarm inputs for remote-site monitoring
- Pay-as-you-grow licensing to activate additional ports and features
- Extended temperature range and compact depth suit small sealed cabinets

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Ports: 12 x 1/10GE SFP/SFP+
- Form factor: 1 RU, fixed configuration
- Power: AC model with 2 power supplies
- AC input voltage: 85-264 V AC, nominal 100-240 V AC
- AC input frequency: 47-63 Hz, nominal 50-60 Hz
- Airflow: Front-to-back
- Operating temperature: -40C to +70C up to 1,000 ft (300 m)
- Operating temperature: -40C to +65C up to 6,000 ft (1,800 m)
- Operating temperature: -40C to +55C up to 13,000 ft (4,000 m)
- Relative humidity: 5 to 95%, non-condensing
- Storage environment: -40C to +70C, altitude 15,000 ft (4,570 m)
- Seismic rating: Zone 4
- Timing interfaces: BITS, 1PPS, ToD
- Synchronisation: SyncE, IEEE 1588-2008
- Software: Cisco IOS XE
- Management: Cisco Prime for EPN
- NEBS: GR-63-CORE Issue 4, GR-1089-CORE Issue 6, SR-3580 Level 4
- Rack-mount kits: ETSI, 19-inch and 23-inch

FAQs

Q: How are ports and features licensed on the ASR 920?
A: The ASR 920 uses a pay-as-you-grow model, where additional 1G/10G Ethernet ports and MPLS or 10GE services are activated on demand with licences.

Q: What power does the ASR-920-12SZ-A use?
A: It is an AC-powered model with two built-in power supplies, accepting 85-264 V AC (nominal 100-240 V AC) at 47-63 Hz.

Q: Which optics work with the 12 SFP ports?
A: The ports accept Cisco SFP and SFP+ modules including GLC-SX-MMD, GLC-LH-SMD, GLC-ZX-SMD, SFP-10G-SR, SFP-10G-LR, SFP-10G-ER, SFP-10G-ZR, CWDM/DWDM and BiDi variants, plus SFP-H10GB-CU direct attach cables.

Q: Which rack-mount kits fit this router?
A: The ASR 920 family uses the A920-RCKMT-ETSI, A920-RCKMT-19 and A920-RCKMT-23 kits for ETSI, 19-inch and 23-inch racks.

Q: What network timing does it support for mobile backhaul?
A: It provides BITS, 1PPS and ToD interfaces along with SyncE and IEEE 1588 for frequency and phase synchronisation.
