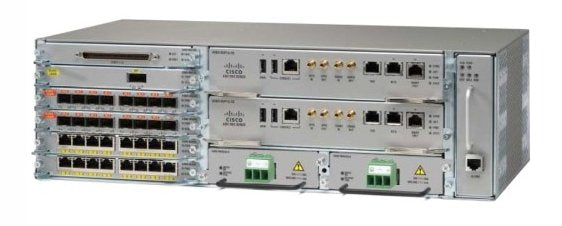

• Cisco ASR-903 3RU router chassis with silver switch ports and modular slots
1 1

Cisco

Cisco ASR-903 | ASR 900 Modular Aggregation Router Chassis, 3RU

ASR-903

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The ASR 903 is a modular 3RU aggregation router chassis from the Cisco ASR 900 Series. It is built for service-provider and mobile backhaul aggregation, carrier Ethernet access and aggregation, and converged packet and TDM or legacy circuit services in cell-site and metro access networks.

This SKU is the chassis only. Route Switch Processors and power supplies are ordered separately. The chassis supports redundant RSPs, with one active and one hot standby, and the RSP is a field-replaceable, online-insertable unit. Compatible RSPs are the A903-RSP1A-55, A903-RSP1B-55, A900-RSP2A-64, A900-RSP2A-128, A900-RSP3C-200-S and A900-RSP3C-400-S, delivering up to 480 Gbps of interface throughput with the RSP3C-400. Power options are AC (550W, 1200W) and DC (900W, 1200W) supplies. The chassis is NEBS Level 3 compliant and operates from -40 to 65 C with suitable power supplies.

It runs Cisco IOS XE using universal consolidated software packages, with the package depending on the RSP fitted. A range of 1GE, 10GE and TDM interface modules plug into the chassis, with module support varying by RSP and slot. Network synchronisation is supported, including GNSS, IEEE 1588-2008 and the G.826x family of standards.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Fully modular chassis with redundant, hot-swappable Route Switch Processors
- Supports 1GE, 10GE, 40GE and 100GE Ethernet interface modules (depending on RSP and slot) plus TDM, serial and ATM modules
- Carrier-grade Cisco IOS XE software with modular packaging and resiliency
- Network synchronisation support including GNSS, IEEE 1588-2008, G.8261, G.8262, G.8265.1 and G.8275.1
- Extended temperature operation from -40 to 65 C with suitable power supplies
- NEBS Level 3 and ETSI compliance for carrier environments
- Optional A900-CM-GNSS module for GNSS timing

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Chassis form factor: ASR 903, 3RU modular
- RSP redundancy: one active, one hot standby, field-replaceable and online-insertable
- Compatible RSPs: A903-RSP1A-55, A903-RSP1B-55, A900-RSP2A-64, A900-RSP2A-128, A900-RSP3C-200-S, A900-RSP3C-400-S
- Maximum interface throughput: RSP3C-200 240 Gbps, RSP3C-400 480 Gbps, RSP2A-64 64 Gbps, RSP2A-128 128 Gbps, RSP1 55 Gbps
- IPv4 performance: RSP3C-200 300 Mpps, RSP3C-400 600 Mpps
- RSP memory (DRAM): RSP3C 8 GB, RSP2A 4 GB, RSP1A 2 GB, RSP1B 4 GB
- Flash memory: RSP3C 8 GB, RSP2A 2 GB, RSP1 2 GB
- Power supply options: AC 550W or 1200W, DC 900W or 1200W
- Power consumption (2 PSUs, 1 fan tray, 1 RSP): 120 W with RSP2A-64, 180 W with RSP2A-128, 195 W with RSP1A-55, 210 W with RSP1B-55, 340 W with RSP3C-200-S, 440 W with RSP3C-400-S
- Maximum MTU: configurable up to 9216 bytes
- Operating temperature: -40 to 65 C (DC with 900W or 1200W PSU, AC with 1200W PSU)
- Operating temperature: -5 to 50 C (AC with 550W PSU)
- Operating altitude: -60 to 1800 m full temperature range, up to 4000 m at up to 40 C
- Relative humidity: 5 to 95%, noncondensing
- Storage environment: -40 to 70 C, altitude 4570 m
- Acoustic noise: 78 dB sound power at 27 C
- Seismic: Zone 4
- NEBS: GR-63-CORE Issue 3, GR-1089-CORE Issue 5, SR-3580 NEBS Level 3
- Safety: UL/CAN/CSA/IEC/EN 60950-1, AS/NZS 60950.1
- EMC: FCC Part 15 Class A, EN55022 Class A, CISPR22 Class A, VCCI Class A
- RoHS: RoHS 6
- Software: Cisco IOS XE, supported from release 3.5.0S

FAQs

Q: Does this chassis include a Route Switch Processor or power supplies?
A: No. This SKU is the ASR 903 chassis only. The RSP and power supplies are ordered separately, along with any interface modules.

Q: Which Route Switch Processors work with the ASR 903?
A: The A903-RSP1A-55, A903-RSP1B-55, A900-RSP2A-64, A900-RSP2A-128, A900-RSP3C-200-S and A900-RSP3C-400-S. The small form factor A900-RSP3C-400-S is the one used in the ASR 903.

Q: What power supply options are available?
A: The chassis accepts AC power supplies in 550W and 1200W ratings and DC power supplies in 900W and 1200W ratings. Chassis power draw ranges from 120 W to 440 W depending on the RSP fitted.

Q: Does it need a separate software licence?
A: It runs Cisco IOS XE using universal consolidated software packages with all features enabled. The package depends on the RSP fitted, for example SASR900R3NPEK9169 for RSP3 without payload encryption.

Q: Can it run in extreme temperatures?
A: Yes. With DC 900W or 1200W power supplies, or the AC 1200W supply, it operates from -40 to 65 C. With the AC 550W supply the range is -5 to 50 C.

Q: What interface modules does it support?
A: A range of modules including the A900-IMA1X, IMA2Z, IMA8S, IMA8T, IMA8Z, IMA2F, IMA1C and IMA48D-C, among others. Support varies by RSP and slot, so confirm against the ASR 900 interface module datasheet.
