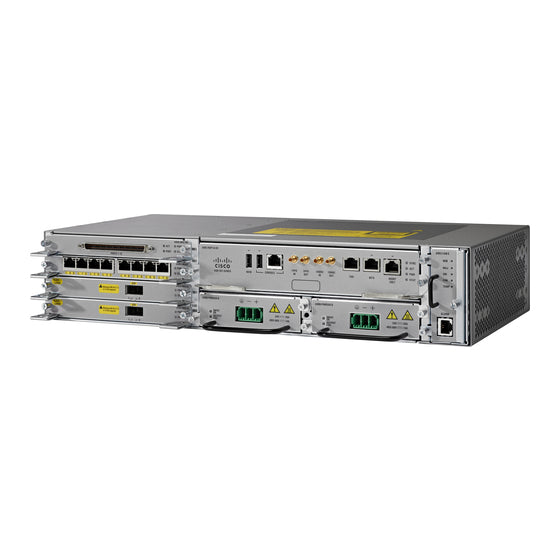

• Cisco ASR-902U modular router chassis with ethernet ports and silver finish
1 1

Cisco

Cisco ASR-902U | ASR 902U Router Chassis, 2RU, 4 Interface Module Slots

ASR-902U

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The ASR 902U is a compact 2RU modular aggregation services router chassis in the Cisco ASR 900 family. It is built for small aggregation sites and remote point-of-presence deployments, including mobile backhaul and converged access, where L2VPN and L3VPN services are required in a small footprint.

The chassis provides one Route Switch Processor slot and four interface module slots numbered 0 to 3. It is the ASR 900U series chassis and supports the RSP2A from Cisco IOS XE 16.6.1. Power supplies, the fan tray, the RSP and interface modules are all accessed from the front panel, and interface modules, power supplies and the fan tray support online insertion and removal. Cooling is side-to-side forced air with a single fan tray that provides fan redundancy.

Timing support covers SyncE, TDM, BITS, 1PPS, 10 MHz and IEEE 1588-2008 timing over packet, with two dry-contact alarm inputs for site monitoring. The chassis works with ASR 900 Series interface modules and the RSP2A and RSP3 family, and the A900-CM-GNSS module is available on RSP3. It runs Cisco IOS XE.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Compact design for small aggregation and remote POP applications
- Supports L2VPN and L3VPN services
- Network timing and synchronisation with SyncE, BITS, 1PPS, 10 MHz, ToD and IEEE 1588-2008
- Field-replaceable, redundant-fan tray with status LEDs
- Front and rear adjustable rail mounting
- Environmental monitoring and reporting with critical, major and minor alarm LEDs
- Centralised data plane, timing and control plane on the RSP
- Online insertion and removal of interface modules, power supplies and fan tray

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Form factor: 2RU modular chassis
- Route Switch Processor slots: 1
- Interface module slots: 4 (slots 0-3)
- Fan tray: 1 fan tray with fan redundancy
- Cooling: side-to-side forced air
- Height: 3.56 in (90.4 mm)
- Width: 17.44 in (443 mm)
- Dimensions (H x W x D), including handles: 90.424 x 442.976 x 268.351 mm
- Weight (with one power supply): 10.9 kg (24.03 lb)
- Operating temperature with 550W AC power supply: -5 to 55 C
- Operating temperature with 550W DC power supply: -40 to 65 C
- Storage (non-operating) temperature: -40 to 85 C
- Alarm inputs: 2 dry-contact (normally open or closed)
- Timing: SyncE, TDM, BITS, 1PPS, 10 MHz, IEEE 1588-2008
- Minimum software: Cisco IOS XE 16.6.1 with RSP2A

FAQs

Q: Which Route Switch Processor does the ASR 902U support?
A: The ASR 902U chassis supports the RSP2A from Cisco IOS XE 16.6.1, and it is also compatible with the RSP3 family.

Q: How many interface modules can it take?
A: It has four interface module slots, numbered 0 to 3, plus a single RSP slot. Interface modules support online insertion and removal.

Q: What power supplies does it use?
A: It takes front-accessible, hot-swappable AC or DC power supplies, with 550W AC and 550W DC variants referenced. Use Cisco's power calculator to check input power for your configuration.

Q: What software does it run?
A: It runs Cisco IOS XE. The minimum release for the ASR 902U chassis with the RSP2A is IOS XE 16.6.1.

Q: How does it differ from the ASR 903?
A: It uses the same design as the ASR 903, scaled down to one RSP slot and four interface module slots in a 2RU chassis.
