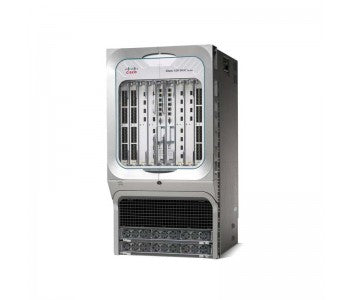

• Cisco ASR-9010-DC-V2 10-slot DC chassis with modular silver rack
1 1

Cisco

Cisco ASR-9010-DC-V2 | ASR 9010 10-Slot Router Chassis, DC Power, PEM V2

ASR-9010-DC-V2

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The ASR 9010 is a 10-slot, 21 RU modular carrier-class router chassis from the Cisco ASR 9000 Series, built for service provider edge and core routing, carrier transport, aggregation, and video and Ethernet service delivery. It suits central-office and NEBS environments with -48 VDC power, and runs Cisco IOS XR.

This DC variant uses PEM Version 2 and accepts -40 to -72 VDC input at 50 A nominal and 60 A maximum. It provides 8 line-card slots and 2 dedicated RSP slots, with dual redundant route switch processors and integrated nonblocking fabric. The chassis includes 2 DC PEMs, 2 fan trays with 12 variable-speed fans each, and a fan filter, with front-to-back airflow and vertical slot orientation. Supported DC power modules are 4.4 kW and 2.1 kW, with DC N+1 and A/B feed redundancy.

The chassis hardware carries no licence of its own. Features depend on the Cisco IOS XR software and feature licences ordered with the line cards and RSPs. It shares RSPs and line cards with the ASR 9006, 9904, 9906 and 9910 chassis, and 21 and 23 inch rack adapters are available for the default 19 inch mounting.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Dual redundant RSPs with integrated nonblocking fabric
- Fully redundant fans, fabric, feeds, power and RSPs with no single point of failure
- Pay-as-you-grow DC power with full load-sharing and no power zone restrictions
- Shares line cards, PEMs, power supplies and RSPs with ASR 9006, 9904, 9906 and 9910 chassis
- Runs Cisco IOS XR with MPLS, NSF/NSR, MC-LAG, H-QoS and SyncE
- Designed to NEBS Level 3 and ETSI standards

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Model: Cisco ASR 9010 (ASR-9010-DC-V2, DC chassis with PEM Version 2)
- Chassis size: 21 RU, 19 inch rack default
- Height: 36.75 in. (933.45 mm)
- Width: 17.38 in. (441.45 mm)
- Depth: 29.03 in. (737.4 mm) with doors; 28.24 in. (717.3 mm) without doors
- Weight: 155.6 lb (70.73 kg) chassis with PEM
- Weight (loaded): 231.6 lb (105.27 kg) fully loaded excluding line cards and power modules
- Line-card slots: 8
- RSP slots: 2 (dual redundant RSPs with integrated fabric)
- Slot orientation: Vertical
- Airflow: Front-to-back
- Fabric: One per RSP, active/active nonblocking with dual RSPs, fully redundant
- Common components: 2 DC PEMs, 2 fan trays, 1 fan filter
- Fans: 12 high-efficiency variable-speed fans per tray
- DC input: -40 to -72 VDC, 50 A nominal, 60 A maximum
- DC power modules: 4.4 kW and 2.1 kW (mixing AC and DC not supported)
- Power redundancy: DC N+1, A/B feed, PEM redundancy
- Rack mounting: 19 inch default; 21 and 23 inch adapters available; minimum 17.75 inch opening between posts
- Wall mounting: No
- Operating temperature (nominal): 5 to 40 C
- Operating temperature (short-term): -5 to 50 C
- Operating humidity (nominal): 5 to 90% RH
- Storage temperature: -40 to 70 C
- Operating altitude: -60 to 4000 m
- NEBS: SR-3580 Level 3, GR-1089-CORE, GR-63-CORE

FAQs

Q: Does the ASR-9010-DC-V2 need a licence?
A: The chassis hardware has no licence of its own. Features depend on the Cisco IOS XR software and feature licences ordered with the line cards and RSPs.

Q: What DC power does it require?
A: It takes -40 to -72 VDC input at 50 A nominal and 60 A maximum through 2 PEM Version 2 modules. DC N+1 redundancy with A/B feeds is supported.

Q: Can I mix AC and DC power modules?
A: No. AC and DC modules cannot be mixed in the same chassis. This SKU is the DC variant with PEM V2, while ASR-9010-AC-V2 is the AC equivalent.

Q: Which line cards and RSPs does it work with?
A: It takes ASR 9000 Series RSPs and line cards, which are shared with the ASR 9006, 9904, 9906 and 9910 chassis. It also uses the V2 fan trays and the ASR-9010-FILTER fan filter.

Q: Can it be mounted in a 21 or 23 inch rack?
A: Yes. It mounts in a 19 inch rack by default, and 21 and 23 inch adapters are available. A minimum 17.75 inch opening between posts is needed.
